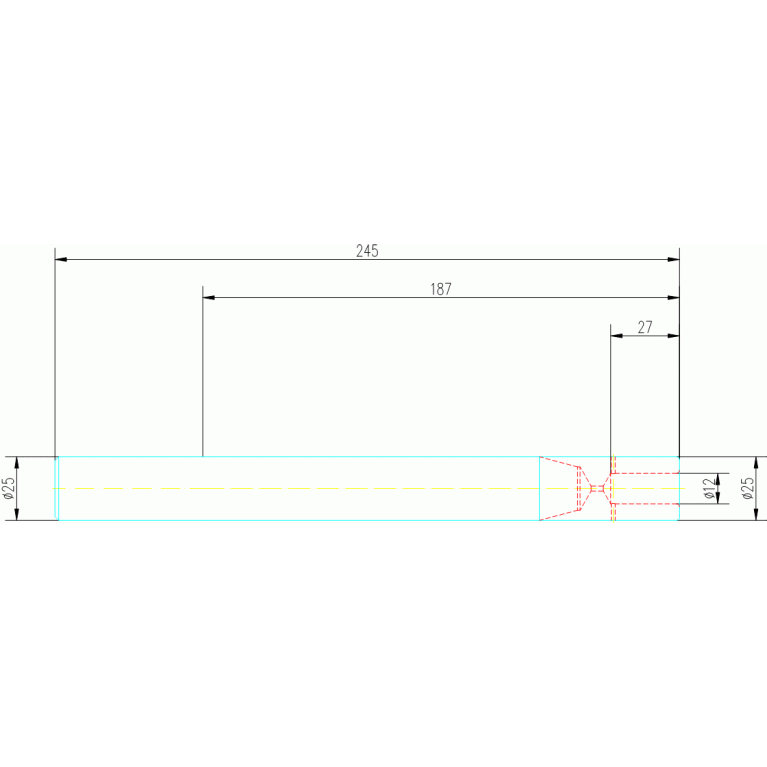

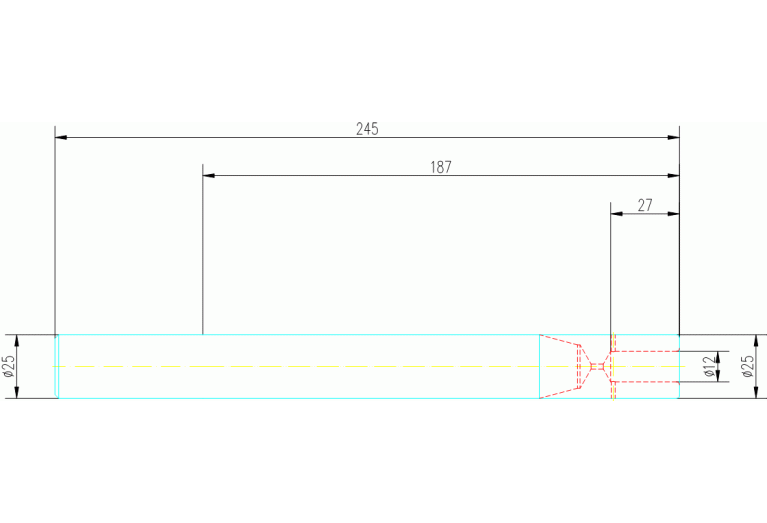

Главная Каталог продукции Toolunited 10 401-01 - Converter, rotationally symmetric A550.Z25.12.187-CS

A550.Z25.12.187-CS

A550.Z25.12.187-CS A550.Z25.12.187-CS A550.Z25.12.187-CS A550.Z25.12.187-CS

A550.Z25.12.187-CS

Walter
Артикул: 5007266
В наличии
В корзину
Описание
Характеристики
BD Body diameter
25 mm
CCFWS Form
20
CCSWS Style
5
CCTWS Type
ZYL
CCUWS Unit base
3
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0472
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL02500115
FamilyProducts

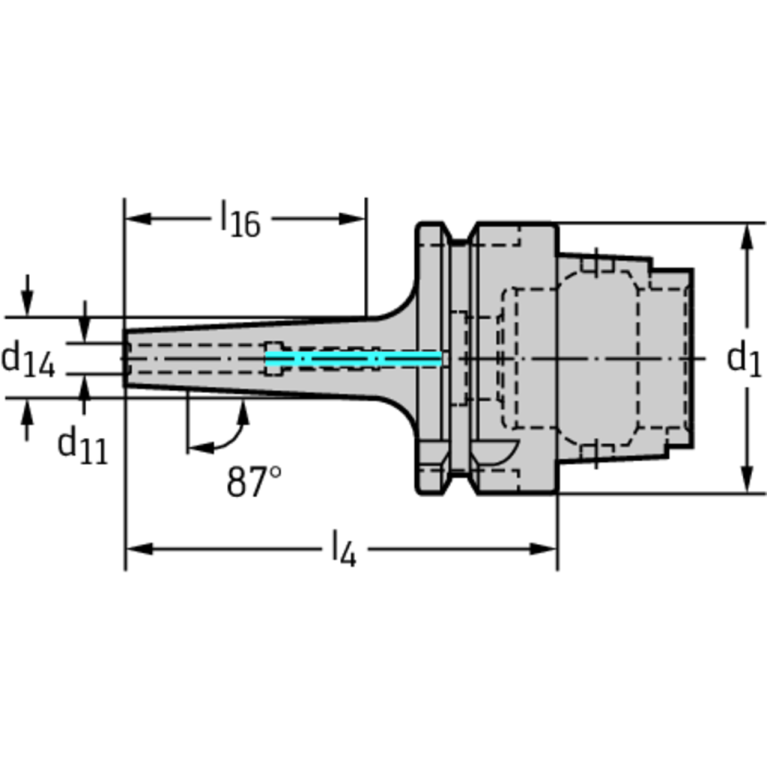

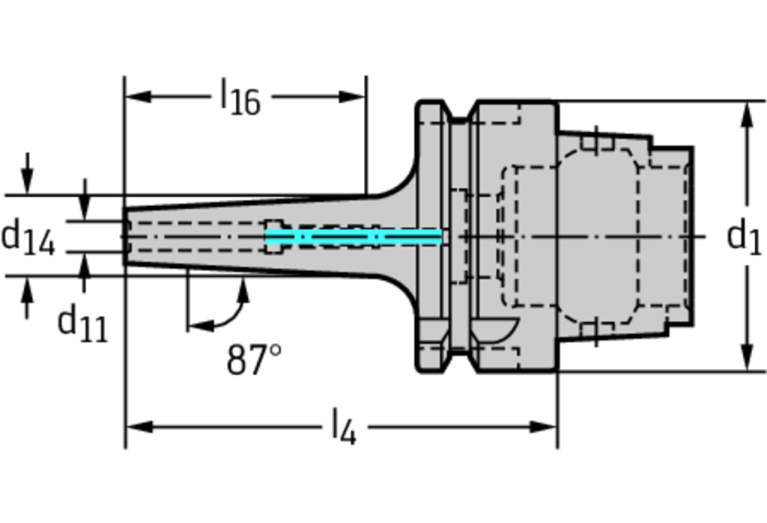

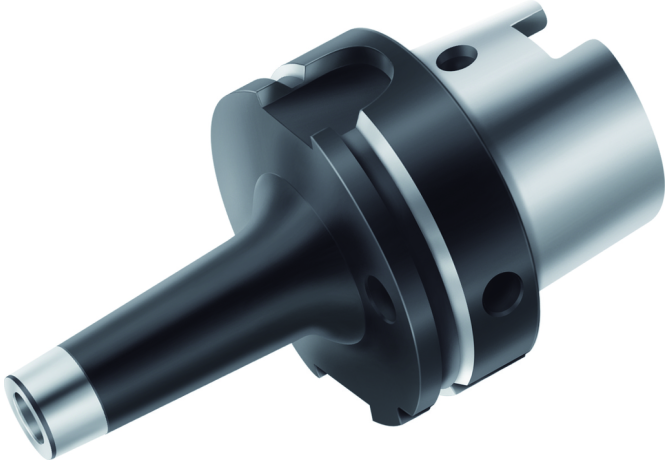

DIN 69893-1 A shrink-fit adaptor A560.H
ID Technical product number
5007266
Interface codes
J6 / J61
ISO
ZYL01G2500$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
245 mm
LF Functional length
187 mm
LOC-01 CCFWS Form
20
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
ZYL cylindrical shank
LOC-01 CCUWS Unit base
3 Inch with coolant
LOC-01 CZCWS Size code
0472
LOC-01 ISO
ZYL20R4724****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL04722035
LOC-02 CCFWS Form
20
LOC-02 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-02 CCTWS Type
ZYL cylindrical shank
LOC-02 CCUWS Unit base
3 Inch with coolant
LOC-02 CZCWS Size code
0472
LOC-02 ISO
ZYL01G1200****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
ZYL01200115
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03 ISO
ZYL01G2500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02500115
LPR Protruding length
187 mm
Name Identifying order number
A550.Z25.12.187-CS
OAL Overall length
245 mm
RPMX Rotational speed maximum
1 1/min
WT Weight of item
1.6 kg
