Главная Каталог продукции Toolunited 10 401-01 - Converter, rotationally symmetric A550.Z20.10.080

A550.Z20.10.080

Артикул: 5007199

В наличии

В корзину

Описание

Характеристики

BD Body diameter

20 mm

CCFWS Form

CCSWS Style

CCTWS Type

ZYL

CCUWS Unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Size code

0393

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL02000115

FamilyProducts

DIN 69893-1 A shrink-fit adaptor A560.H

ID Technical product number

5007199

Interface codes

J6 / J61

ISO

ZYL01G2000$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

KAP Kappa

0 Degree

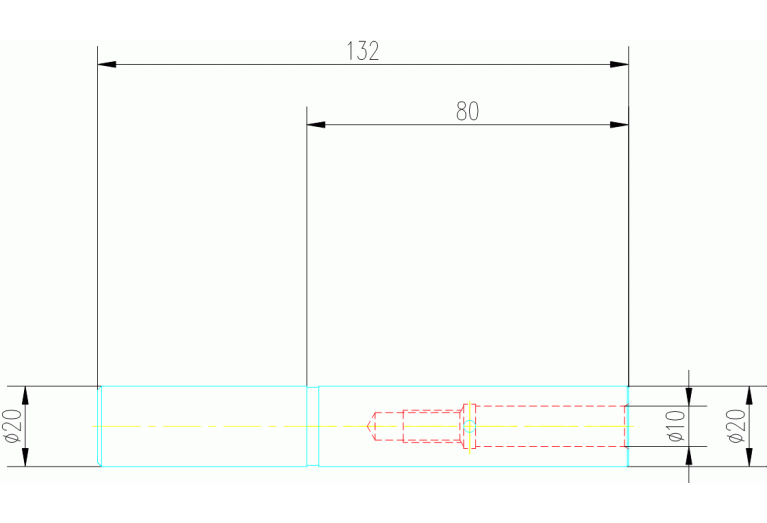

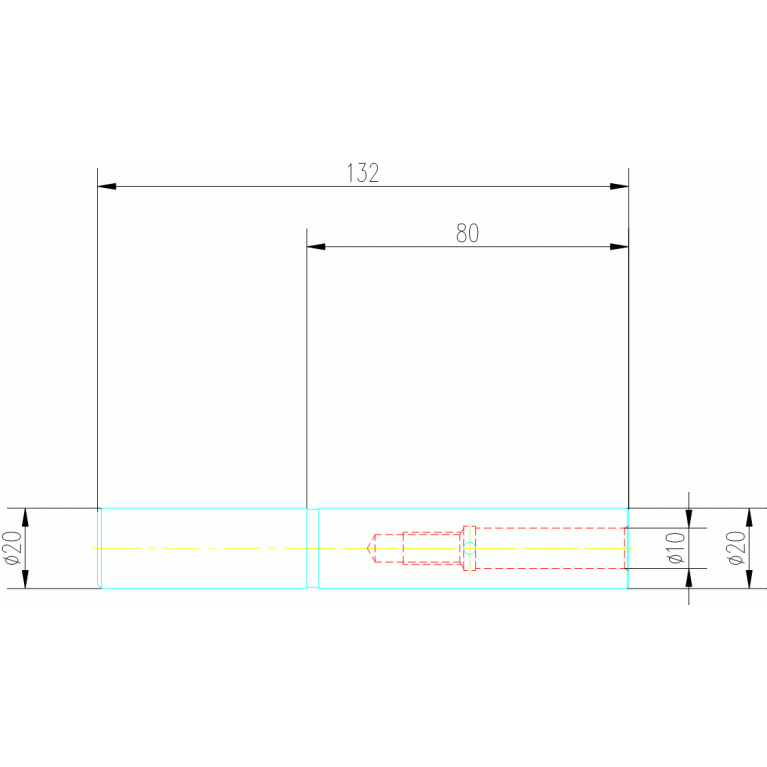

LB Body length 1

132 mm

LF Functional length

80 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

ZYL cylindrical shank

LOC-01 CCUWS Unit base

3 Inch with coolant

LOC-01 CZCWS Size code

0393

LOC-01 ISO

ZYL20R3937****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL03932035

LOC-02 CCFWS Form

LOC-02 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-02 CCTWS Type

ZYL cylindrical shank

LOC-02 CCUWS Unit base

3 Inch with coolant

LOC-02 CZCWS Size code

0393

LOC-02 ISO

ZYL01G1000****

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

ZYL01000115

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0200

LOC-03 DCONMS Diameter

20 mm

LOC-03 ISO

ZYL01G2000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02000115

LPR Protruding length

80 mm

Name Identifying order number

A550.Z20.10.080

OAL Overall length

132 mm

RPMX Rotational speed maximum

1 1/min

WT Weight of item

0.3 kg
