Главная Каталог продукции Toolunited 10 401-01 - Converter, rotationally symmetric A3000-C6-Q32-160

A3000-C6-Q32-160

Артикул: 7816969

В наличии

В корзину

Описание

Характеристики

CCFWS Form

CCSWS Style

CCTWS Type

SGL

CCUWS Unit base

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

W - Walter

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

CZCWS Size code

0320

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

CCS06300395

FamilyProducts

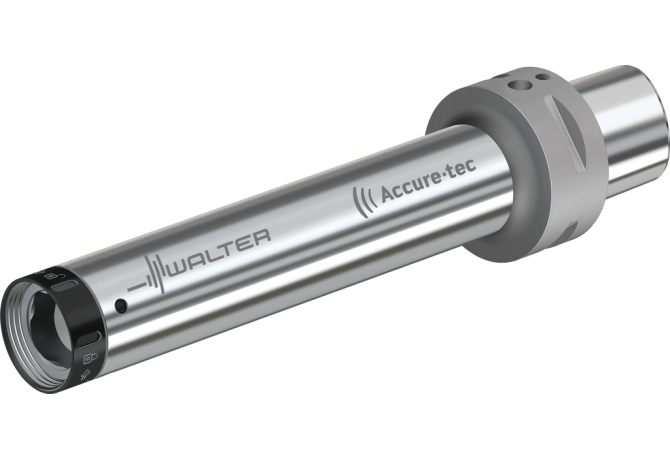

Walter Capto TM Adaptor – vibration damped A3000-C

HAND Cutting direction

N - Neutral

HF Functional height

0 mm

ID Technical product number

7816969

Interface codes

J6 / J61

ISO

CCS03C0630$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

KAP Kappa

0 Degree

LB Body length 1

135 mm

LB Length 2

129 mm

LF Functional length

135 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Type

SGL

LOC-01 CCUWS Unit base

1 Metric with coolant

LOC-01 CZCWS Size code

0320

LOC-01 ISO

SGL01A0320****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SGL03200115

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0630

LOC-03 DCONMS Diameter

63 mm

LOC-03 ISO

CCS03C0630$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS06300395

LPR Protruding length

135 mm

LS Shank length

38 mm

Name Identifying order number

A3000-C6-Q32-160

OAL Overall length

203.4 mm

STDNO Standard

ISO26623-1

WF Functional width

0 mm

WT Weight of item

1.8 kg
