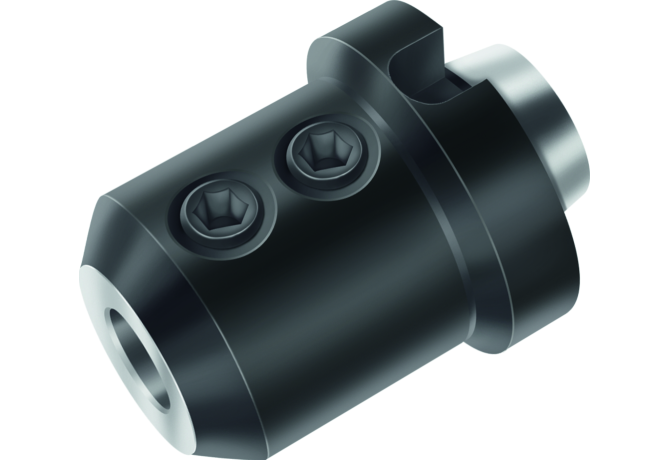

Главная Каталог продукции Toolunited 10 401-01 - Converter, rotationally symmetric A170M.U0.50.055.15

A170M.U0.50.055.15

A170M.U0.50.055.15 A170M.U0.50.055.15 A170M.U0.50.055.15

A170M.U0.50.055.15

Walter
Артикул: 5034459
В наличии
В корзину
Описание
Характеристики

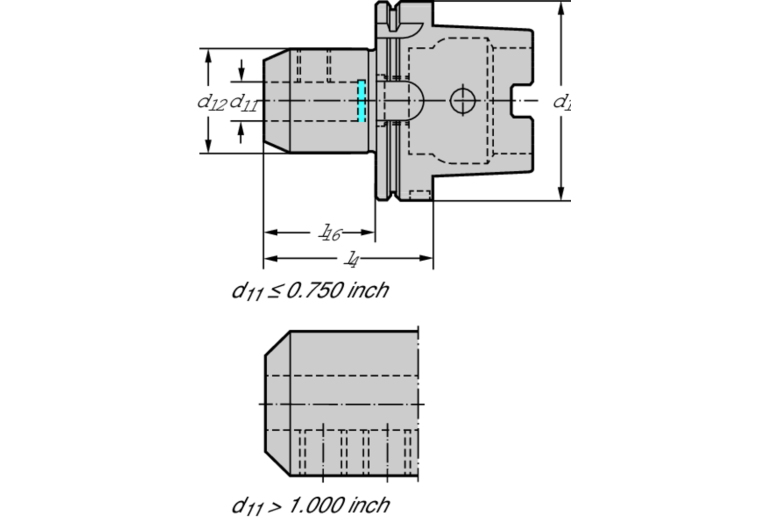

BD Body diameter
38.1 mm
CCFWS Form
18
CCSWS Style
5
CCTWS Type
ZYL
CCUWS Unit base
3
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0625
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
NCT05000195
FamilyProducts
Weldon shank adaptor A170M.U0
ID Technical product number
5034459
Interface codes
J6 / J61
ISO
NCT01C0500$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
48.006 mm
LF Functional length
68.58 mm
LOC-01 CCFWS Form
18
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
ZYL cylindrical shank
LOC-01 CCUWS Unit base
3 Inch with coolant
LOC-01 CZCWS Size code
0625
LOC-01 ISO
ZYL18R6250****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL06251835
LOC-02 CCFWS Form
18
LOC-02 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-02 CCTWS Type
ZYL cylindrical shank
LOC-02 CCUWS Unit base
3 Inch with coolant
LOC-02 CZCWS Size code
0625
LOC-02 ISO
ZYL10G1587****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
ZYL01581015
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
NCT Novex-NC-Tools WALTER
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0500
LOC-03 DCONMS Diameter
50 mm
LOC-03 ISO
NCT01C0500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
NCT05000195
LPR Protruding length
68.58 mm
Name Identifying order number
A170M.U0.50.055.15
OAL Overall length
80.58 mm
RPMX Rotational speed maximum
30000 1/min
WT Weight of item
0.42 kg
