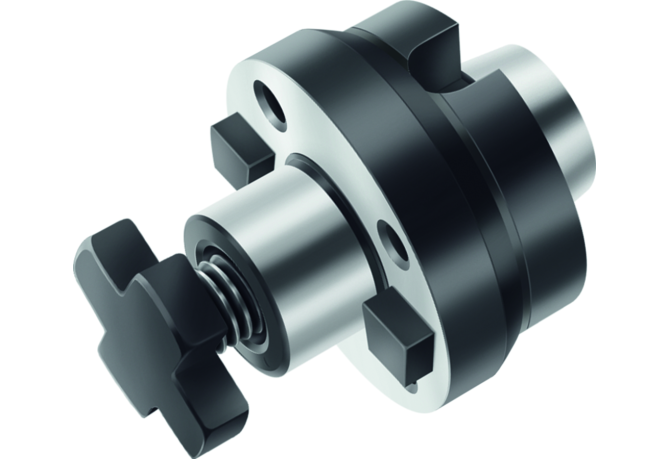

Главная Каталог продукции Toolunited 10 401-01 - Converter, rotationally symmetric A155M.U0.63.030.26

A155M.U0.63.030.26

Артикул: 5034478

В наличии

В корзину

Описание

Характеристики

BD Body diameter

69.85 mm

CCFWS Form

CCSWS Style

CCTWS Type

FDA

CCUWS Unit base

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CXSC Coolant exit style code

0 - Without coolant exit

CZCWS Size code

1000

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

NCT06300185

FamilyProducts

Shell mill adaptor A155M

ID Technical product number

5034478

Interface codes

J6 / J61

ISO

NCT01C0630$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

KAP Kappa

0 Degree

LB Body length 1

29.9974 mm

LF Functional length

29.997 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

0 Hole in machine direction or shaft in workpiece direction

LOC-01 CCTWS Type

FDA Milling arbor mounting

LOC-01 CCUWS Unit base

2 Inch

LOC-01 CZCWS Size code

1000

LOC-01 ISO

FDA22S1000****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

FDA10002220

LOC-02 CCFWS Form

LOC-02 CCSWS Style

0 Hole in machine direction or shaft in workpiece direction

LOC-02 CCTWS Type

FDA Milling arbor mounting

LOC-02 CCUWS Unit base

2 Inch

LOC-02 CZCWS Size code

1000

LOC-02 ISO

FDA12S1000****

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

FDA10001220

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

NCT Novex-NC-Tools WALTER

LOC-03 CCUMS Unit base

8 non-dimensional size

LOC-03 CZCMS Size code

0630

LOC-03 DCONMS Diameter

63 mm

LOC-03 ISO

NCT01C0630$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

NCT06300185

LPR Protruding length

29.997 mm

LS Shank length

17.45 mm

Name Identifying order number

A155M.U0.63.030.26

OAL Overall length

63.447 mm

RPMX Rotational speed maximum

30000 1/min

WT Weight of item

0.94 kg
