Главная Каталог продукции Toolunited 10 401-01 - Converter, rotationally symmetric A100M.3.50.035.50

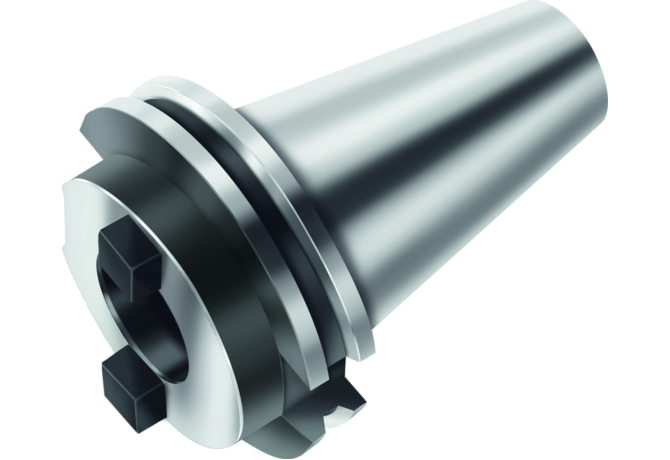

A100M.3.50.035.50

A100M.3.50.035.50 A100M.3.50.035.50 A100M.3.50.035.50 A100M.3.50.035.50

A100M.3.50.035.50

Walter
Артикул: 5006981
В наличии
В корзину
Описание
Характеристики
BD Body diameter
50 mm
CCFWS Form
01
CCSWS Style
5
CCTWS Type
NCT
CCUWS Unit base
9
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0500
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DF Flange diameter
98.42 mm
DIN
SKG05003195
FamilyProducts
ANSI ASME B5.50 master A100M.3
ID Technical product number
5006981
Interface codes
J6 / J61
ISO
SKG31C0500$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
15.9 mm
LF Functional length
35 mm
LOC-01 CCFWS Form
01
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
NCT Novex-NC-Tools WALTER
LOC-01 CCUWS Unit base
9 non-dimensional size with coolant
LOC-01 CZCWS Size code
0500
LOC-01 ISO
NCT01C0500****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
NCT05000195
LOC-03 CCFMS Form
31
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
SKG steep taper shank
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0500
LOC-03 DCONMS Diameter
50 mm
LOC-03 ISO
SKG31C0500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG05003195
LPR Protruding length
35 mm
Name Identifying order number
A100M.3.50.035.50
OAL Overall length
136.8 mm
RPMX Rotational speed maximum
12000 1/min
STDLET Standard letter to the standard number
A
STDNO Standard
DIN 4000-89 KENNZAHL
WT Weight of item
3.15 kg
