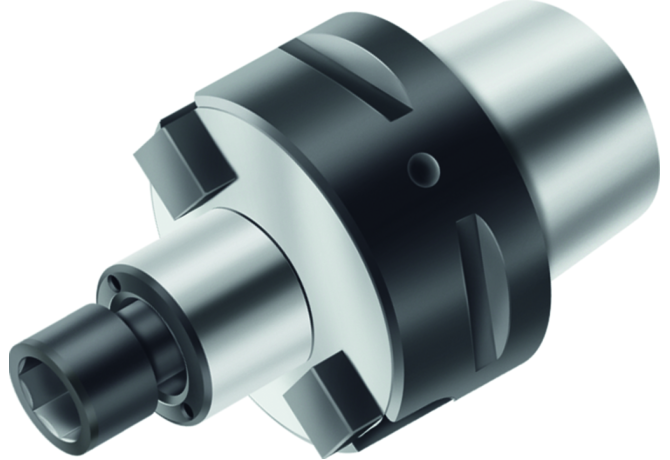

C6-A391.05C-19 030M

Артикул: 7493050

В наличии

В корзину

Описание

Характеристики

BD Body diameter

63 mm

CCFWS Form

CCSWS Style

CCTWS Type

FDA

CCUWS Unit base

CNSC Coolant entry style code

3 - With Coolant entry, axial concentric and radial

COMPC Company code

W - Walter

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

CZCWS Size code

0750

DCONWS Diameter

19.05 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

CCS06300195

FamilyProducts

Shell mill adaptor AK155.8.C

ID Technical product number

7493050

Interface codes

J6 / J61

ISO

CCS01C0630$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

KAP Kappa

0 Degree

LB Body length 1

30 mm

LF Functional length

30 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

0 Hole in machine direction or shaft in workpiece direction

LOC-01 CCTWS Type

FDA Milling arbor mounting

LOC-01 CCUWS Unit base

3 Inch with coolant

LOC-01 CZCWS Size code

0750

LOC-01 DCONWS Diameter

19.05 mm

LOC-01 ISO

FDA12R7500****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

FDA07501230

LOC-02 CCFWS Form

LOC-02 CCSWS Style

0 Hole in machine direction or shaft in workpiece direction

LOC-02 CCTWS Type

FDA Milling arbor mounting

LOC-02 CCUWS Unit base

3 Inch with coolant

LOC-02 CZCWS Size code

0750

LOC-02 DCONWS Diameter

19.05 mm

LOC-02 ISO

FDA22R7500****

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

FDA07502230

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0630

LOC-03 DCONMS Diameter

63 mm

LOC-03 ISO

CCS01C0630$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS06300195

LPR Protruding length

30 mm

LS Shank length

18 mm

Name Identifying order number

C6-A391.05C-19 030M

OAL Overall length

68 mm

RPMX Rotational speed maximum

20000 1/min

STDNO Standard

ISO26623-1

WT Weight of item

1.06 kg
