Главная Каталог продукции Toolunited 10 401-01 - Converter, rotationally symmetric C6-391.27-25 070A

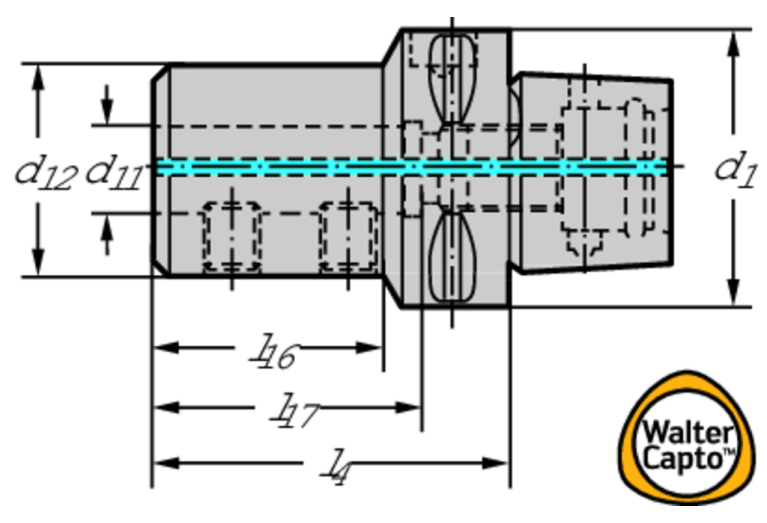

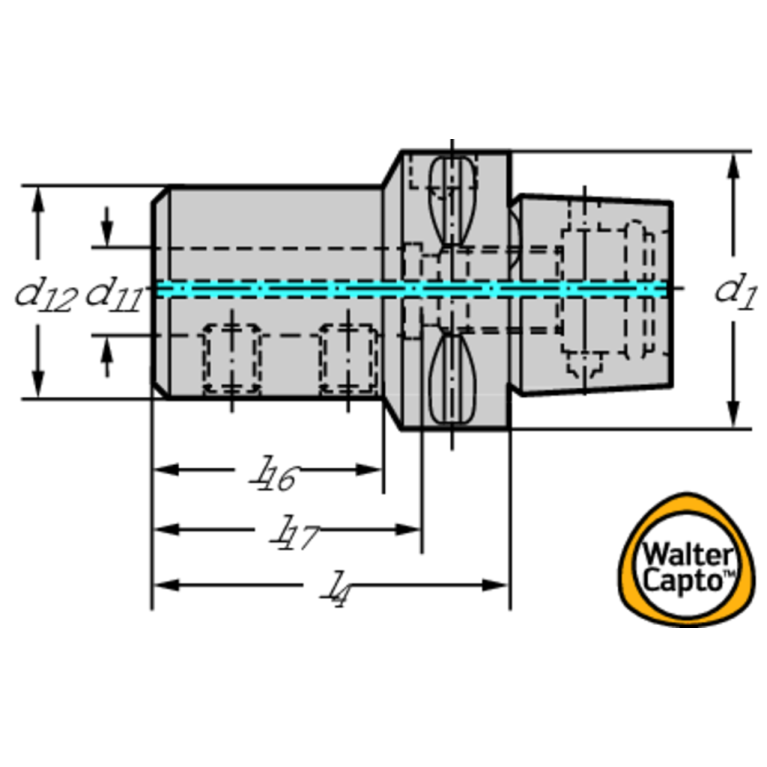

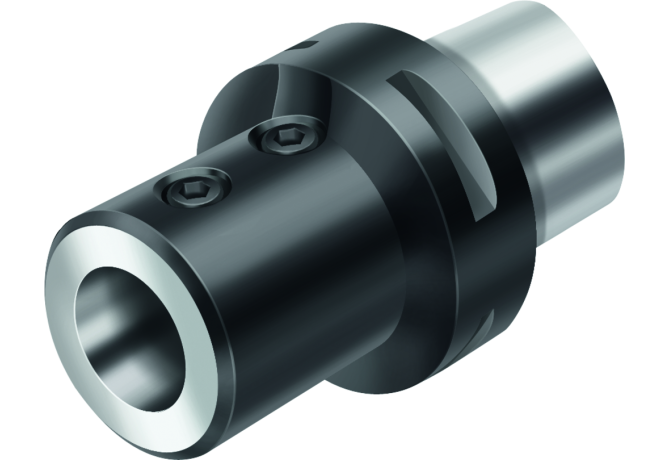

C6-391.27-25 070A

C6-391.27-25 070A C6-391.27-25 070A C6-391.27-25 070A

C6-391.27-25 070A

Walter
Артикул: 5012475
В наличии
В корзину
Описание
Характеристики
BD Body diameter
45 mm
CCFWS Form
11
CCSWS Style
5
CCTWS Type
ZYL
CCUWS Unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0250
DCONWS Diameter
25 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS06300195
FamilyProducts
Adaptor for drilling and reaming tools C.-391.27
ID Technical product number
5012475
Interface codes
J6 / J61
ISO
CCS01C0630$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
43.8 mm
LF Functional length
70 mm
LOC-01 CCFWS Form
11
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
ZYL cylindrical shank
LOC-01 CCUWS Unit base
1 Metric with coolant
LOC-01 CZCWS Size code
0250
LOC-01 DCONWS Diameter
25 mm
LOC-01 ISO
ZYL11G2500****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL02501115
LOC-02 CCFWS Form
11
LOC-02 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-02 CCTWS Type
ZYL cylindrical shank
LOC-02 CCUWS Unit base
1 Metric with coolant
LOC-02 CZCWS Size code
0250
LOC-02 DCONWS Diameter
25 mm
LOC-02 ISO
ZYL11R9842****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
ZYL09841135
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0630
LOC-03 DCONMS Diameter
63 mm
LOC-03 ISO
CCS01C0630$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS06300195
LPR Protruding length
70 mm
LS Shank length
38 mm
Name Identifying order number
C6-391.27-25 070A
OAL Overall length
108 mm
RPMX Rotational speed maximum
20000 1/min
STDNO Standard
ISO26623-1
WT Weight of item
1.223 kg
