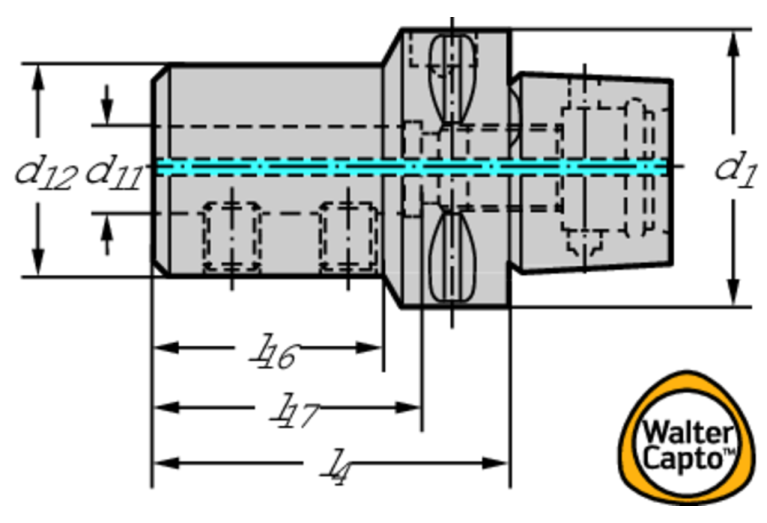

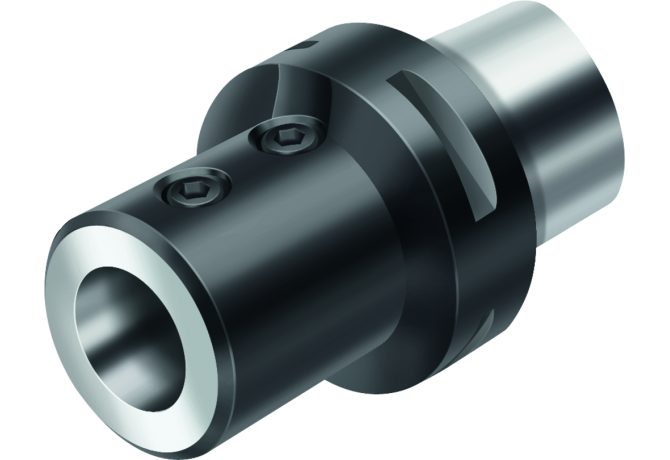

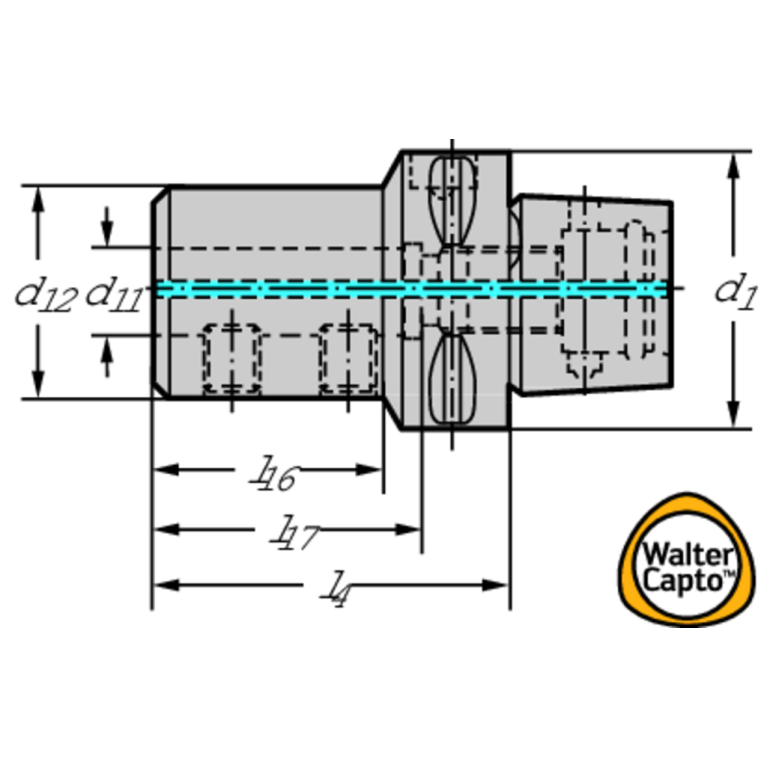

C5-391.27-32 075

C5-391.27-32 075 C5-391.27-32 075 C5-391.27-32 075

C5-391.27-32 075

Walter
Артикул: 5012472
В наличии
В корзину
Описание
Характеристики
BD Body diameter
52 mm
CCFWS Form
11
CCSWS Style
5
CCTWS Type
ZYL
CCUWS Unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0320
DCONWS Diameter
32 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS05000195
FamilyProducts
Adaptor for drilling and reaming tools C.-391.27
ID Technical product number
5012472
Interface codes
J6 / J61
ISO
CCS01C0500$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
55 mm
LF Functional length
75 mm
LOC-01 CCFWS Form
11
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
ZYL cylindrical shank
LOC-01 CCUWS Unit base
1 Metric with coolant
LOC-01 CZCWS Size code
0320
LOC-01 DCONWS Diameter
32 mm
LOC-01 ISO
ZYL11G3200****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL03201115
LOC-02 CCFWS Form
11
LOC-02 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-02 CCTWS Type
ZYL cylindrical shank
LOC-02 CCUWS Unit base
1 Metric with coolant
LOC-02 CZCWS Size code
0320
LOC-02 DCONWS Diameter
32 mm
LOC-02 ISO
ZYL11S1259****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
ZYL12591135
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0500
LOC-03 DCONMS Diameter
50 mm
LOC-03 ISO
CCS01C0500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS05000195
LPR Protruding length
75 mm
LS Shank length
30 mm
Name Identifying order number
C5-391.27-32 075
OAL Overall length
105 mm
RPMX Rotational speed maximum
28000 1/min
STDNO Standard
ISO26623-1
WT Weight of item
0.97 kg
