Главная Каталог продукции Toolunited 10 401-01 - Converter, rotationally symmetric C4-A391.05C-25 035

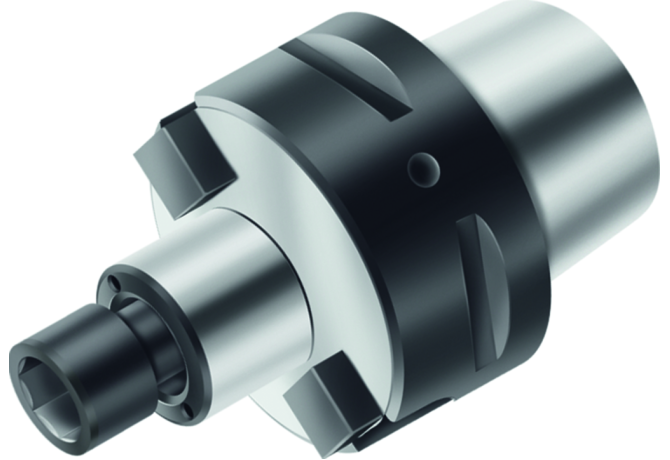

C4-A391.05C-25 035

Артикул: 7493037

В наличии

В корзину

Описание

Характеристики

BD Body diameter

50 mm

CCFWS Form

CCSWS Style

CCTWS Type

FDA

CCUWS Unit base

CNSC Coolant entry style code

3 - With Coolant entry, axial concentric and radial

COMPC Company code

W - Walter

CXSC Coolant exit style code

4 - With Coolant exit, axial on hole circle

CZCWS Size code

1000

DCONWS Diameter

25.4 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

CCS04000195

FamilyProducts

Shell mill adaptor AK155.8.C

ID Technical product number

7493037

Interface codes

J6 / J61

ISO

CCS01C0400$$$$

ISYC Subclass

401-01 - Converter, rotationally symmetric

KAP Kappa

0 Degree

LB Body length 1

35 mm

LF Functional length

35 mm

LOC-01 CCFWS Form

LOC-01 CCSWS Style

0 Hole in machine direction or shaft in workpiece direction

LOC-01 CCTWS Type

FDA Milling arbor mounting

LOC-01 CCUWS Unit base

3 Inch with coolant

LOC-01 CZCWS Size code

1000

LOC-01 DCONWS Diameter

25.4 mm

LOC-01 ISO

FDA12S1000****

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

FDA10001230

LOC-02 CCFWS Form

LOC-02 CCSWS Style

0 Hole in machine direction or shaft in workpiece direction

LOC-02 CCTWS Type

FDA Milling arbor mounting

LOC-02 CCUWS Unit base

3 Inch with coolant

LOC-02 CZCWS Size code

1000

LOC-02 DCONWS Diameter

25.4 mm

LOC-02 ISO

FDA22S1000****

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

FDA10002230

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0400

LOC-03 DCONMS Diameter

40 mm

LOC-03 ISO

CCS01C0400$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS04000195

LPR Protruding length

35 mm

LS Shank length

18 mm

Name Identifying order number

C4-A391.05C-25 035

OAL Overall length

59 mm

RPMX Rotational speed maximum

39000 1/min

STDNO Standard

ISO26623-1

WT Weight of item

0.667 kg
