Главная Каталог продукции Toolunited 10 401-01 - Converter, rotationally symmetric C4-391.27-16 056

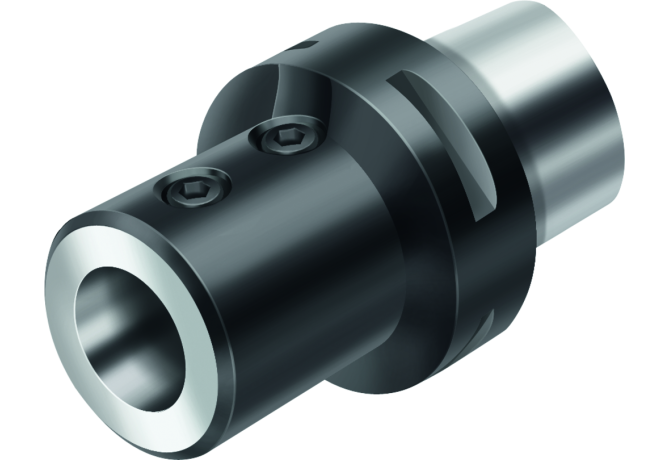

C4-391.27-16 056

C4-391.27-16 056 C4-391.27-16 056 C4-391.27-16 056

C4-391.27-16 056

Walter
Артикул: 5012466
В наличии
В корзину
Описание
Характеристики
BD Body diameter
36 mm
CCFWS Form
11
CCSWS Style
5
CCTWS Type
ZYL
CCUWS Unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Size code
0160
DCONWS Diameter
16 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS04000195
FamilyProducts
Adaptor for drilling and reaming tools C.-391.27
ID Technical product number
5012466
Interface codes
J6 / J61
ISO
CCS01C0400$$$$
ISYC Subclass
401-01 - Converter, rotationally symmetric
KAP Kappa
0 Degree
LB Body length 1
32.5 mm
LF Functional length
56 mm
LOC-01 CCFWS Form
11
LOC-01 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Type
ZYL cylindrical shank
LOC-01 CCUWS Unit base
1 Metric with coolant
LOC-01 CZCWS Size code
0160
LOC-01 DCONWS Diameter
16 mm
LOC-01 ISO
ZYL11G1600****
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL01601115
LOC-02 CCFWS Form
11
LOC-02 CCSWS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-02 CCTWS Type
ZYL cylindrical shank
LOC-02 CCUWS Unit base
1 Metric with coolant
LOC-02 CZCWS Size code
0160
LOC-02 DCONWS Diameter
16 mm
LOC-02 ISO
ZYL11R6299****
LOC-02-Connection-codes
J4 / J431 - Workpiece end
LOC-02-DIN
ZYL06291135
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03 ISO
CCS01C0400$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS04000195
LPR Protruding length
56 mm
LS Shank length
24 mm
Name Identifying order number
C4-391.27-16 056
OAL Overall length
80 mm
RPMX Rotational speed maximum
39000 1/min
STDNO Standard
ISO26623-1
WT Weight of item
0.499 kg
