Главная Каталог продукции Toolunited 10 401-01 - Converter, rotationally symmetric 338420 7L

338420 7L

338420 7L 338420 7L 338420 7L

338420 7L

Hoffmann Group
Артикул: 338420 7L
В наличии
В корзину
Описание
Характеристики
BD Body diameter
15 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
0
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Connection size code
0090
DCONWS Diameter
9 mm
DCP Data chip provision
0 - Without data chip
DIN
ZYL01001005
FamilyProducts

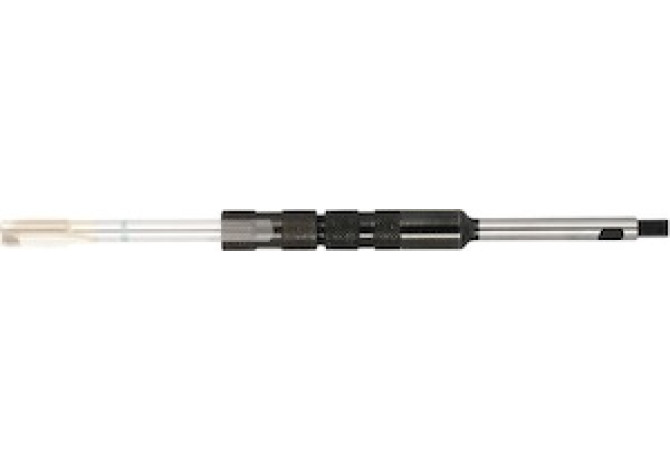

Tap extension with HB flat
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
149 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
0090
LOC-01 DCONWS Diameter
9 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL00900105
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0100
LOC-03 DCONMS Diameter
10 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01001005
LPR Protruding length
150 mm
LSCX Clamping length maximum
31 mm
Name Identifying order number
338420 7L
OAL Overall length
230 mm
TA Taper angle
45 Degree
WT Weight of item
0.236 kg
