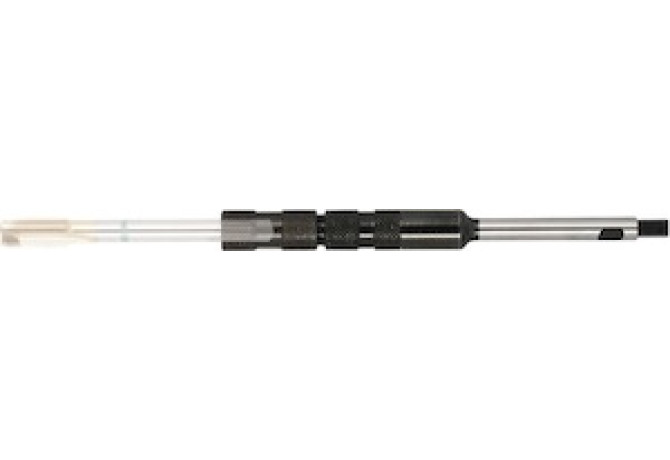

Главная Каталог продукции Toolunited 10 401-01 - Converter, rotationally symmetric 338420 5L

338420 5L

338420 5L 338420 5L 338420 5L

338420 5L

Hoffmann Group
Артикул: 338420 5L
В наличии
В корзину
Описание
Характеристики

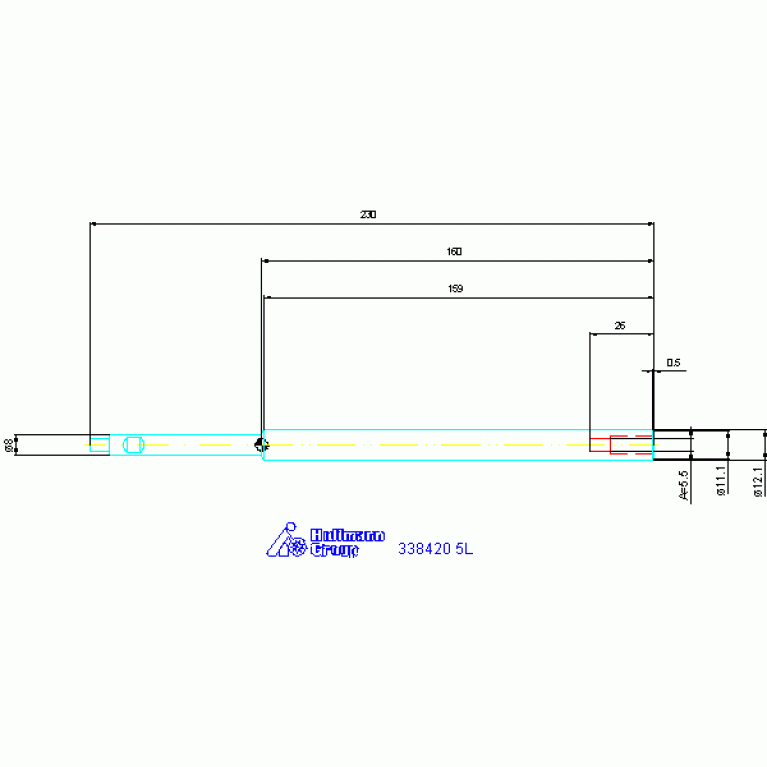

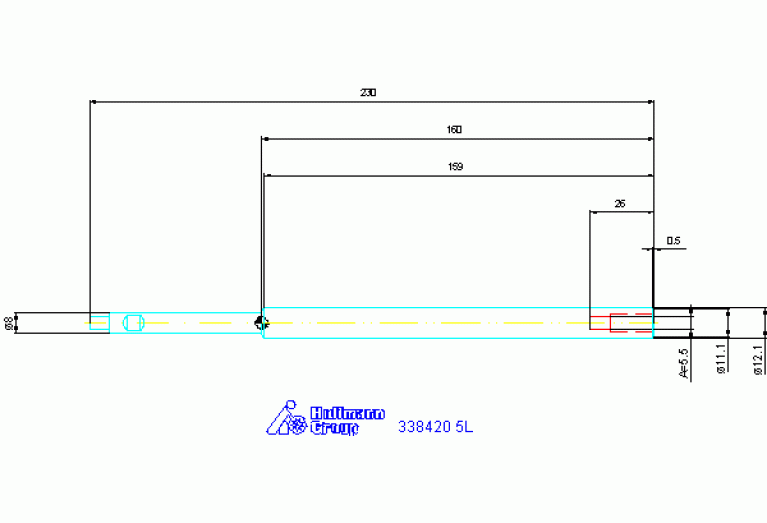

BD Body diameter
12.1 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
0
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
0 - Without coolant exit
CZCWS Connection size code
0070
DCONWS Diameter
7 mm
DCP Data chip provision
0 - Without data chip
DIN
ZYL00801005
FamilyProducts
Tap extension with HB flat
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
159 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
0 Metric
LOC-01 CZCWS Connection size code
0070
LOC-01 DCONWS Diameter
7 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL00700105
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0080
LOC-03 DCONMS Diameter
8 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00801005
LPR Protruding length
160 mm
LSCX Clamping length maximum
26 mm
Name Identifying order number
338420 5L
OAL Overall length
230 mm
TA Taper angle
45 Degree
WT Weight of item
0.162 kg
