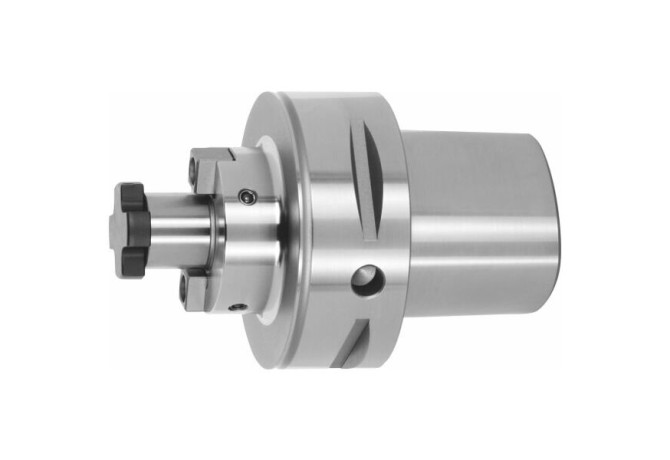

Главная Каталог продукции Toolunited 10 401-01 - Converter, rotationally symmetric 308551 27

308551 27

308551 27 308551 27 308551 27

308551 27

Hoffmann Group
Артикул: 308551 27
В наличии
В корзину
Описание
Характеристики
BD Body diameter
60 mm
BD Body diameter 2
60 mm
CCFWS Connection code form
01
CCSWS Connection code style
0
CCTWS Connection code type
FDA
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
2 - With Coolant exit, radial
CZCWS Connection size code
0270

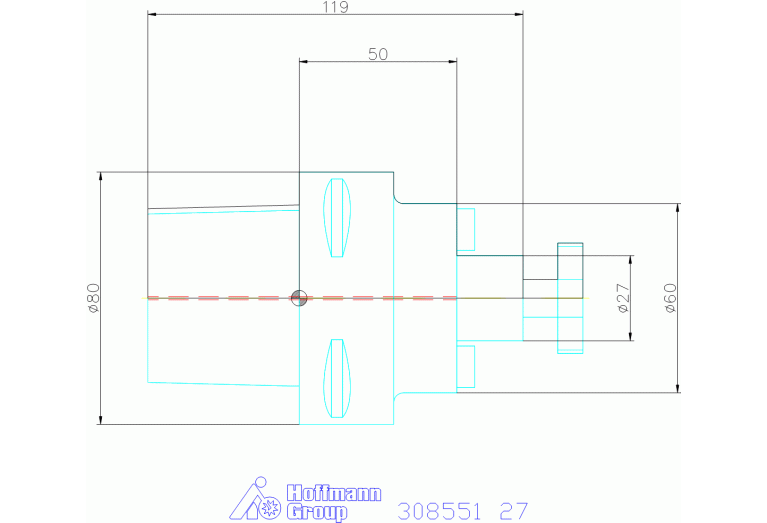

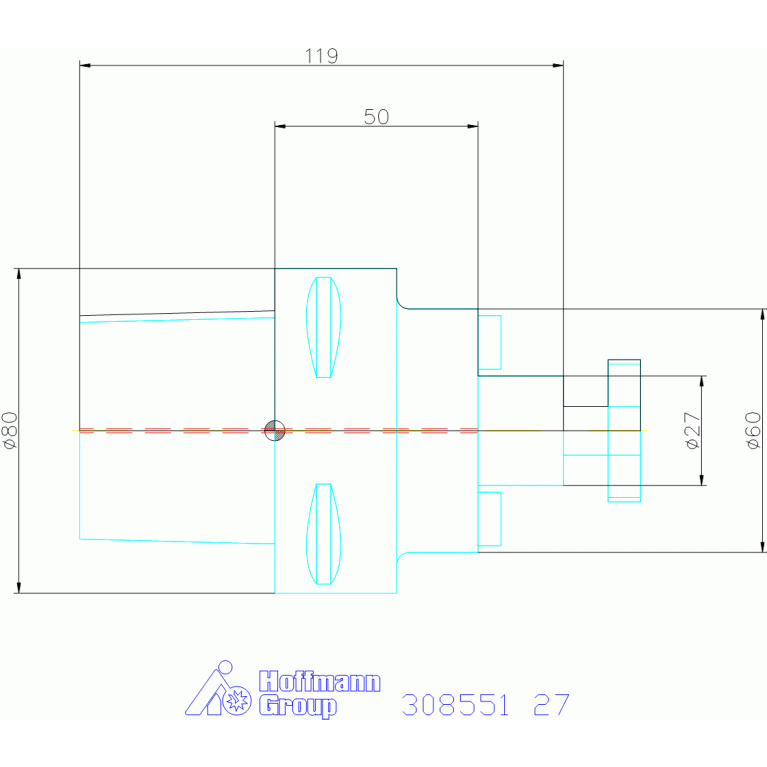

DCONWS Diameter
27 mm
DCP Data chip provision
0 - Without data chip
DF Flange diameter
80 mm
DIN
CCS08000195
FamilyProducts
Face mill arbor with cooling channel bores
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
98 mm
LB Length 2
38.5 mm
LF Functional length
50 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-01 CCTWS Connection code type
FDA Milling arbor mounting
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0270
LOC-01 DCONWS Diameter
27 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
FDA02700110
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0800
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS08000195
LPR Protruding length
71 mm
LSCN Clamping length minimum
21 mm
LSCX Clamping length maximum
27.3 mm
Name Identifying order number
308551 27
OAL Overall length
119 mm
WT Weight of item
2.2 kg
