Главная Каталог продукции Toolunited 10 401-01 - Converter, rotationally symmetric 307947 20

307947 20

307947 20 307947 20 307947 20

307947 20

Hoffmann Group
Артикул: 307947 20
В наличии
В корзину
Описание
Характеристики

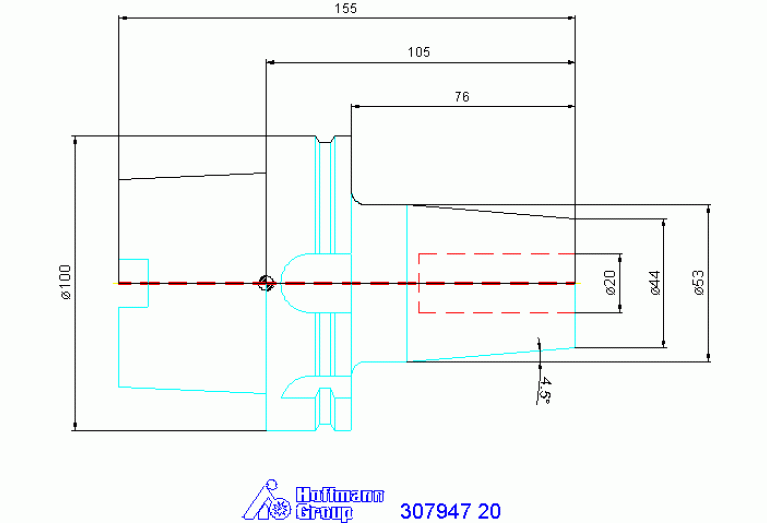

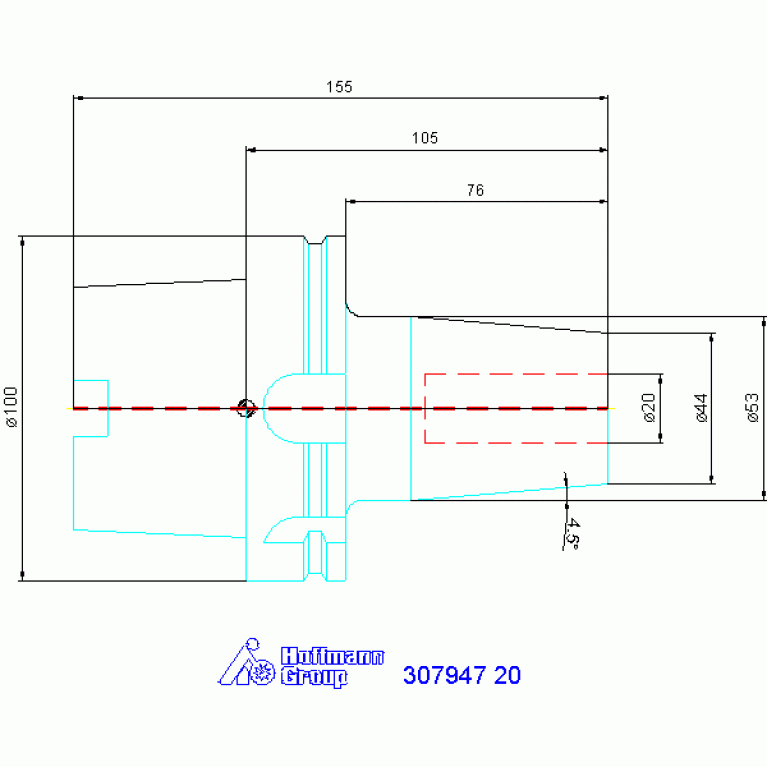

BD Body diameter
44 mm
BD Body diameter 2
53 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0200
DCONWS Diameter
20 mm
DCP Data chip provision
0 - Without data chip
DF Flange diameter
100 mm
DIN
HSK10000195
FamilyProducts
Shrink-fit chucks 4.5° with retainer function
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
56 mm
LB Length 2
18 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0200
LOC-01 DCONWS Diameter
20 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL02000115
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
1000
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK10000195
LPR Protruding length
105 mm
LSCX Clamping length maximum
53 mm
Name Identifying order number
307947 20
OAL Overall length
155 mm
TA Taper angle
4.5 Degree
WT Weight of item
3 kg
