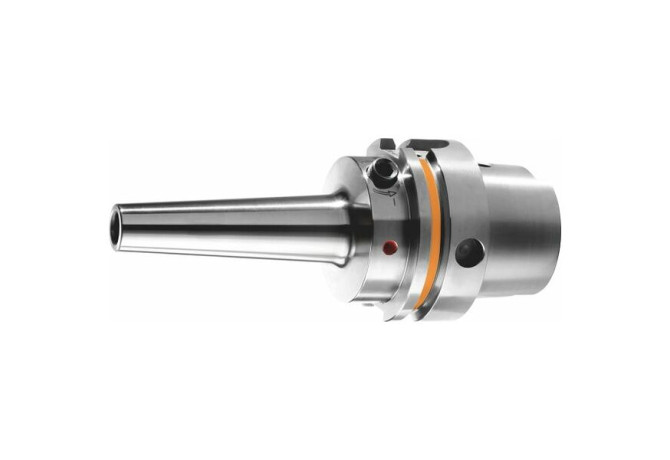

Главная Каталог продукции Toolunited 10 401-01 - Converter, rotationally symmetric 307526 4

307526 4

307526 4 307526 4 307526 4

307526 4

Hoffmann Group
Артикул: 307526 4
В наличии
В корзину
Описание
Характеристики
BD Body diameter
14.7 mm
BD Body diameter 2
34 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0040
DCINTF Interference cutting diameter
10 mm
DCONWS Diameter
4 mm
DCP Data chip provision
0 - Without data chip
DF Flange diameter
40 mm
DIN
HSK04000395
FamilyProducts
Slim hydraulic chuck
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
45 mm
LB Length 2
65 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0040
LOC-01 DCONWS Diameter
4 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL00400115
LOC-03 CCFMS Connection code form
03
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK04000395
LPR Protruding length
85 mm
LSCX Clamping length maximum
28 mm
Name Identifying order number
307526 4

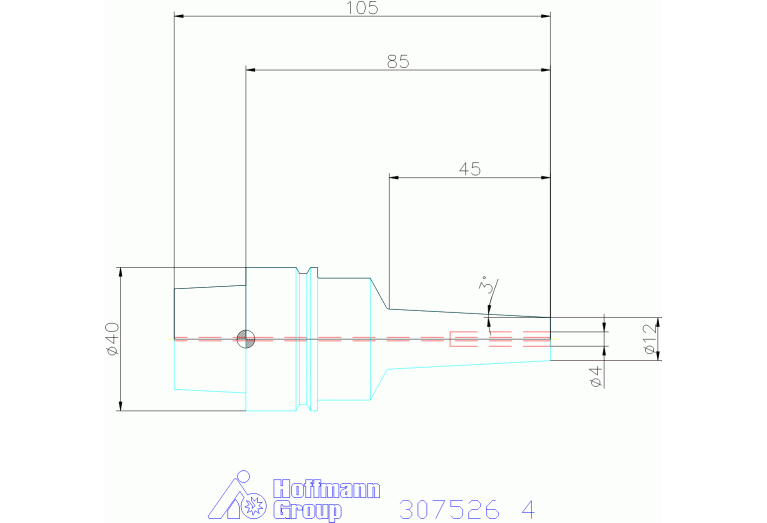

OAL Overall length
105 mm
TA Taper angle
3 Degree
WT Weight of item
0.35 kg
