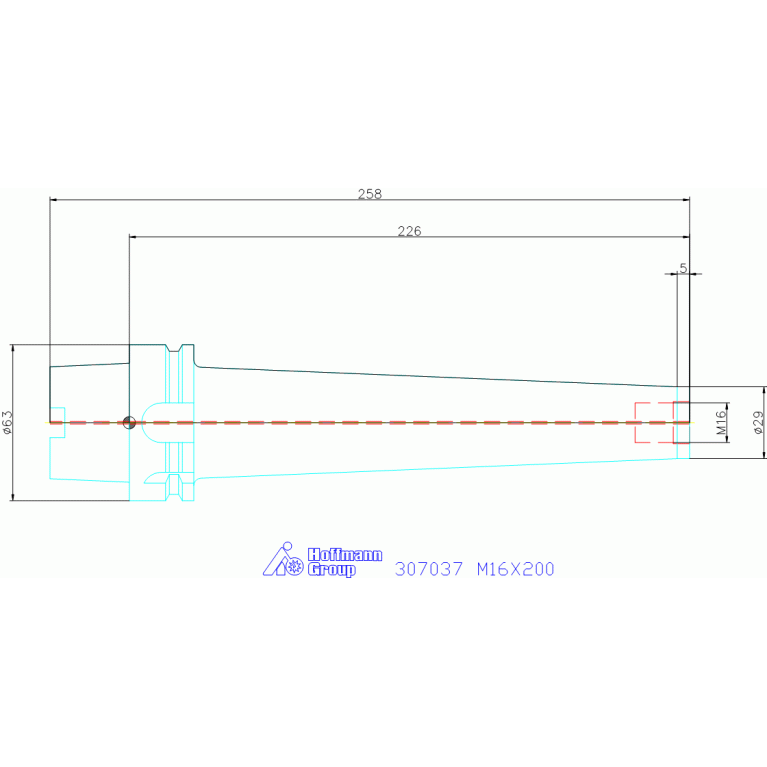

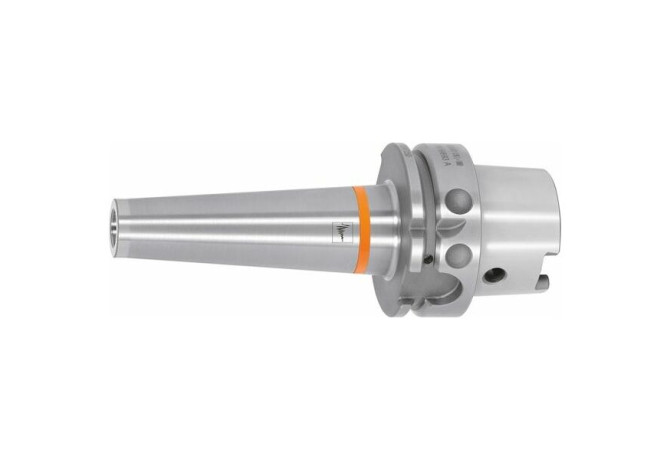

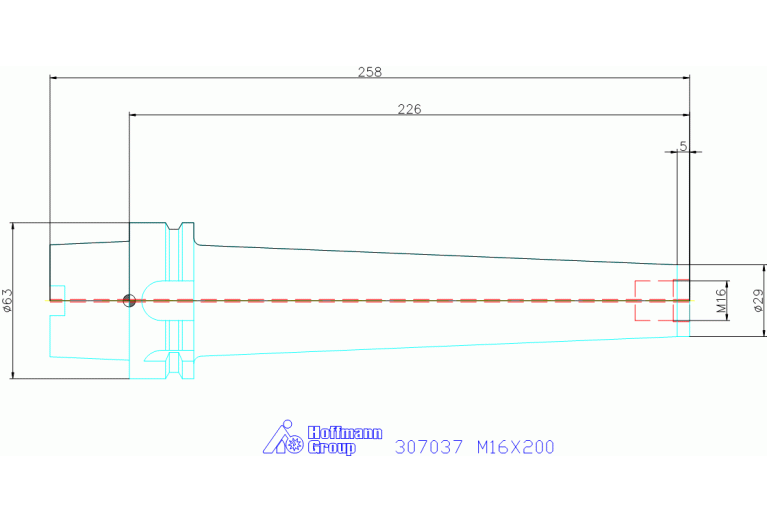

Главная Каталог продукции Toolunited 10 401-01 - Converter, rotationally symmetric 307037 M16X200

307037 M16X200

307037 M16X200 307037 M16X200 307037 M16X200

307037 M16X200

Hoffmann Group
Артикул: 307037 M16X200
В наличии
В корзину
Описание
Характеристики
BD Body diameter
29 mm
BD Body diameter 2
45 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
SAD
CCUWS Connection code unit base
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0160
DCP Data chip provision
0 - Without data chip
DF Flange diameter
63 mm
DIN
HSK06300195
FamilyProducts
Arbor for screw-in milling cutters with thread
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
5 mm
LF Functional length
226 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
SAD Screw mounting
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0160
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SAD01600115
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0630
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK06300195
LPR Protruding length
200.05 mm
Name Identifying order number
307037 M16X200
OAL Overall length
257.9 mm
WT Weight of item
2.422 kg
