Главная Каталог продукции Toolunited 10 401-01 - Converter, rotationally symmetric 303428 20

303428 20

303428 20 303428 20 303428 20

303428 20

Hoffmann Group
Артикул: 303428 20
В наличии
В корзину
Описание
Характеристики

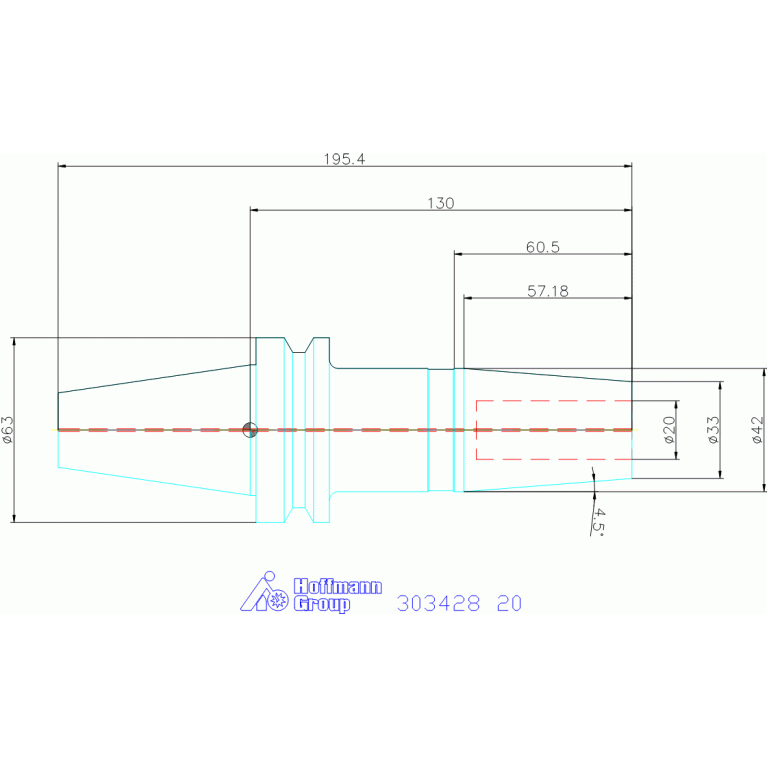

BD Body diameter
41 mm
CCFWS Connection code form
10
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
CZCWS Connection size code
0200
DCONWS Diameter
20 mm
DCP Data chip provision
0 - Without data chip
DF Flange diameter
63 mm
DIN
SKG04005795
FamilyProducts
Shrink-fit chuck
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LOC-01 CCFWS Connection code form
10
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 CZCWS Connection size code
0200
LOC-01 DCONWS Diameter
20 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL02001015
LOC-03 CCFMS Connection code form
57
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04005795
LPR Protruding length
130 mm
LSCX Clamping length maximum
53 mm
Name Identifying order number
303428 20
OAL Overall length
195.4 mm
TA Taper angle
4.5 Degree
WT Weight of item
1.78 kg
