Hoffmann Group
Артикул: 303175 0,3-10
В наличии
В корзину
Описание
Характеристики

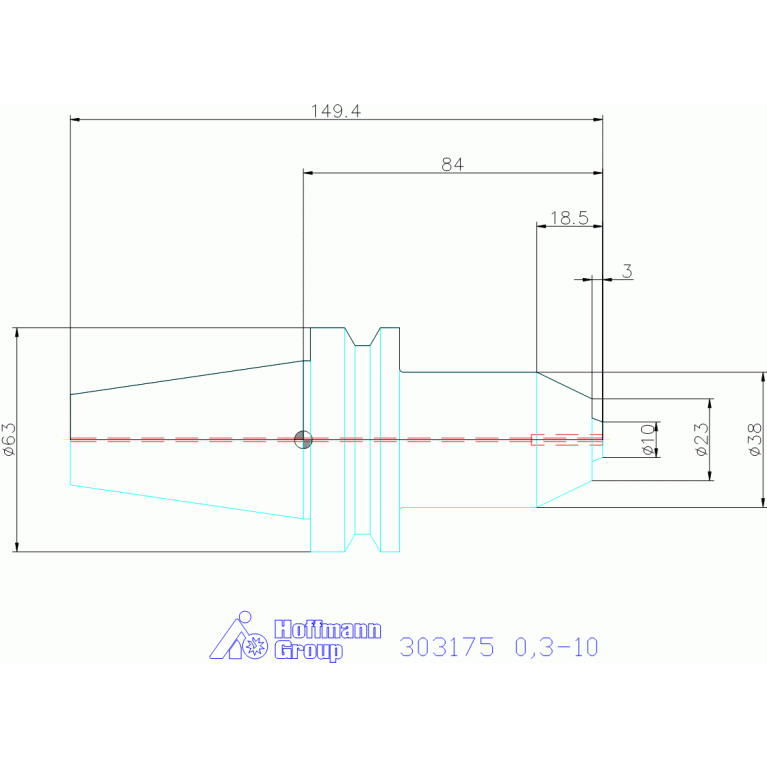

BD Body diameter
23 mm
BD Body diameter 2
38 mm
CCFWS Connection code form
01
CCSWS Connection code style
5
CCTWS Connection code type
ZYL
CCUWS Connection code unit base
1
COMPC Company code
HOG - Hoffmann Group
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCONWS Diameter
0.3 mm
DCONXWS Connection diameter max
10.2 mm
DCP Data chip provision
0 - Without data chip
DF Flange diameter
63 mm
DIN
SKG04005795
FamilyProducts

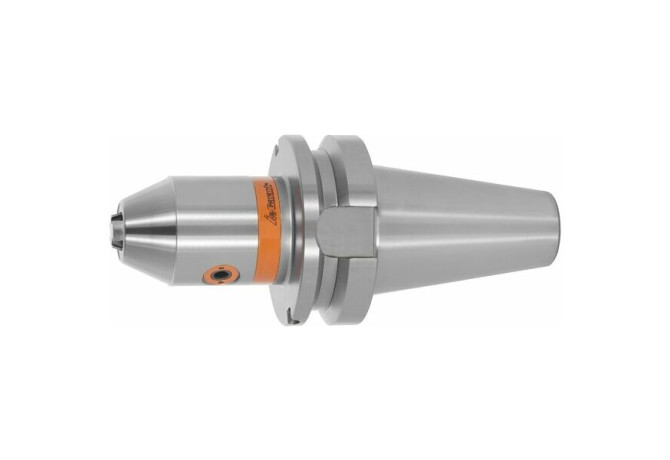

GARANT Short drill chuck Form AD/B
HAND Cutting direction
N - Neutral
Interface codes
J6 /
ISYC Subclass
401-01 - Converter, rotationally symmetric
LB Body length 1
18.5 mm
LB Length 2
38.5 mm
LF Functional length
73 mm
LOC-01 CCFWS Connection code form
01
LOC-01 CCSWS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-01 CCTWS Connection code type
ZYL cylindrical shank
LOC-01 CCUWS Connection code unit base
1 Metric with coolant
LOC-01 DCONWS Diameter
0.3 mm
LOC-01 DCONXWS Connection diameter max
10.2 mm
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
ZYL00030105ZYL01020105
LOC-03 CCFMS Connection code form
57
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SKG steep taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0400
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SKG04005795
LPR Protruding length
81 mm
Name Identifying order number
303175 0,3-10
OAL Overall length
19.4 mm
TA Taper angle
26 Degree
WT Weight of item
1.1 kg
