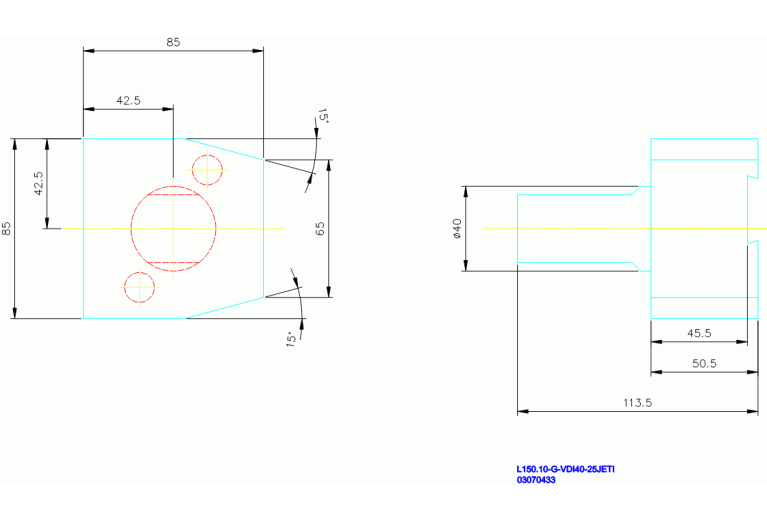

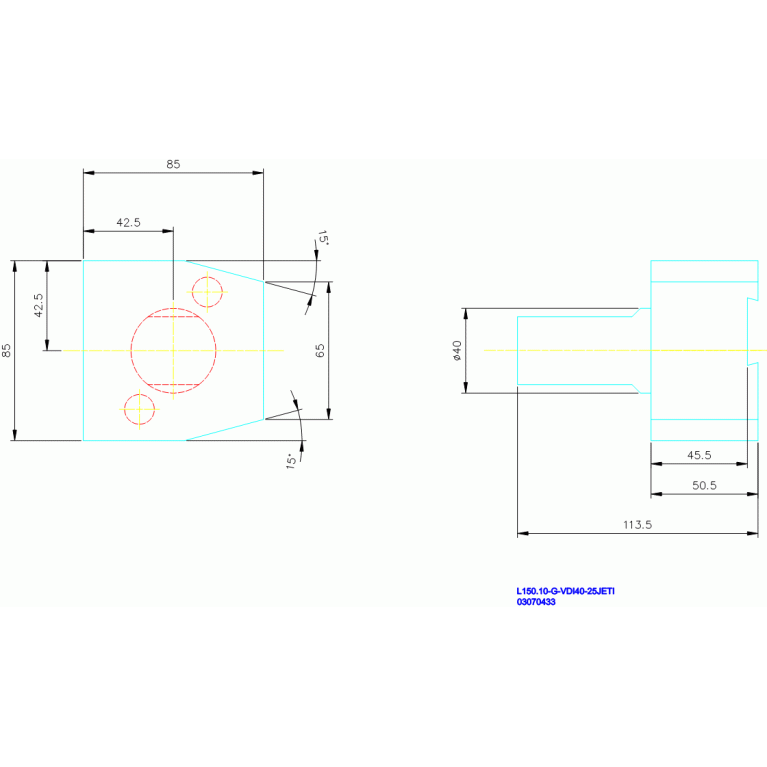

L150.10-G-VDI40-25JETI
L150.10-G-VDI40-25JETI
Артикул:
03070433
В наличии
Характеристики
COMPC Company code
SO - SECO Tools
CZCWS Connection size code
150
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
FamilyProducts
L150.10-G-VDI40-25JETI
HAND Cutting direction
N - Neutral
ID Technical product number
03070433
Interface codes
/
ISYC Subclass
401-00 - Adaptive item converter, extender, reducer unspecified
LF Functional length
45.5 mm
LOC-01 CZCWS Connection size code
150
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
SO-SO 150 10-25N
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYV cylindrical shank VDI type (serrated)
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 DCONMS Diameter
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LPR Protruding length
50.5 mm
Name Identifying order number
L150.10-G-VDI40-25JETI
OAW Overall width
85 mm
WF Functional width
42.5 mm
WT Weight of item
3.13 kg
