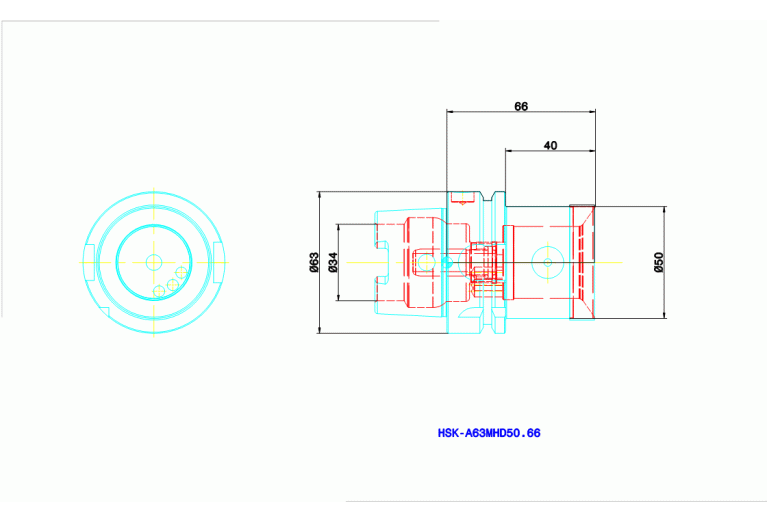

HSK-A63MHD50.66
HSK-A63MHD50.66
Артикул:
4541158
В наличии
Характеристики
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state
LA - Soon discontinued
DIN
HSK05000195
FamilyProducts
HSK-A Adaption MHD32-80
HAND Cutting direction
N - Neutral
ID Technical product number
4541158
Interface codes
J6 /
ISYC Subclass
401-00 - Adaptive item converter, extender, reducer unspecified
LOC-01-Connection-codes
J4 / J431 - Workpiece end
LOC-01-DIN
IL-K-1299
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
HSK Hollow taper shank
LOC-03 CCUMS Connection code unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Connection size code
0500
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
HSK05000195
LPR Protruding length
66 mm
Name Identifying order number
HSK-A63MHD50.66
OAL Overall length
98 mm
WT Weight of item
0.9 kg
