Главная Каталог продукции Toolunited 10 401-00 - Adaptive item converter, extender, reducer unspecified D100-939-BA100

D100-939-BA100

Артикул: 03139335

В наличии

В корзину

Описание

Характеристики

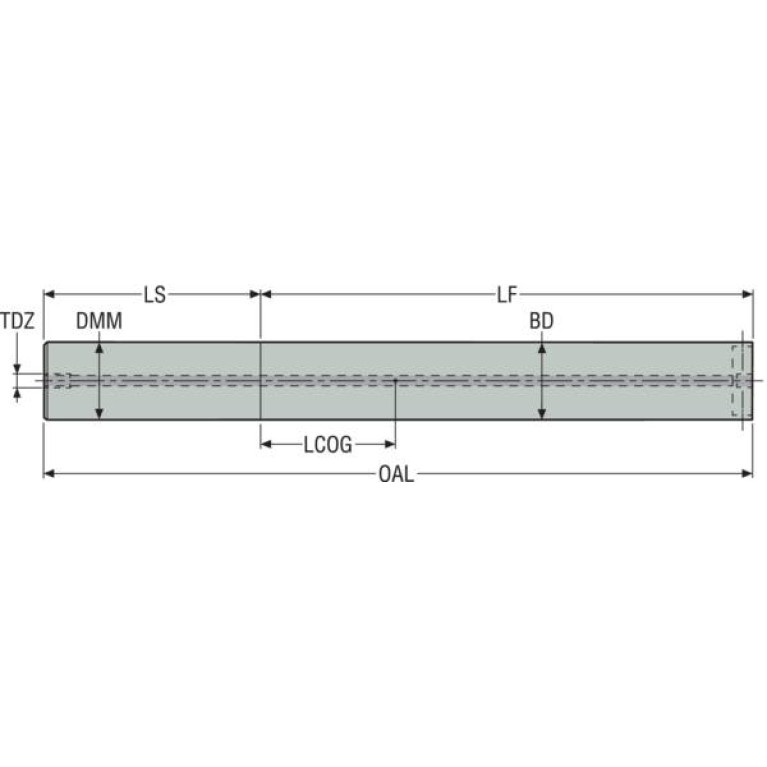

BD Body diameter

100 mm

COMPC Company code

SO - SECO Tools

CZCWS Connection size code

1000

DCONWS Diameter

100 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL10000105

FamilyProducts

D100-939-BA100

HAND Cutting direction

N - Neutral

ID Technical product number

03139335

Interface codes

J6 / J61

ISO

ZYL01H1000h$06

ISYC Subclass

401-00 - Adaptive item converter, extender, reducer unspecified

LB Body length 1

939 mm

LB Length 2

839 mm

LF Functional length

939 mm

LOC-01 CZCWS Connection size code

1000

LOC-01 DCONWS Diameter

100 mm

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SO-GLX100002M1

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

1000

LOC-03 DCONMS Diameter

100 mm

LOC-03 ISO

ZYL01H1000h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL10000105

LS Shank length

500 mm

Name Identifying order number

D100-939-BA100

OAL Overall length

1439 mm

THSZWS Connection thread nominal size workpiece side

G 3/4

WT Weight of item

84.66 kg
