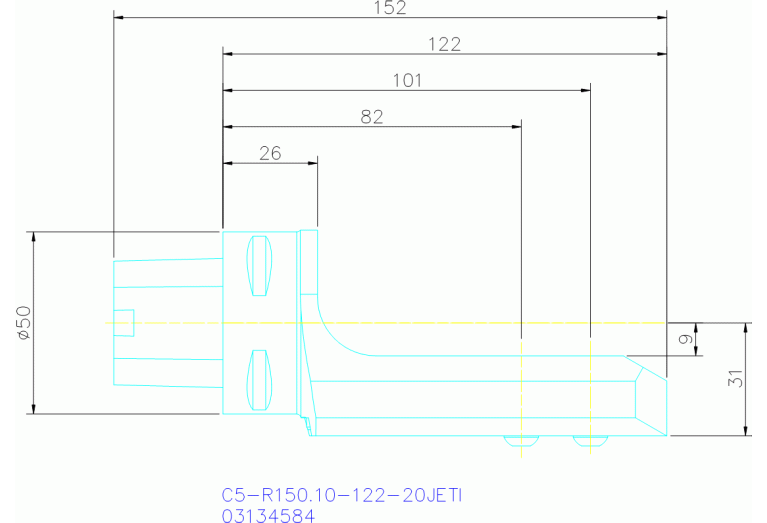

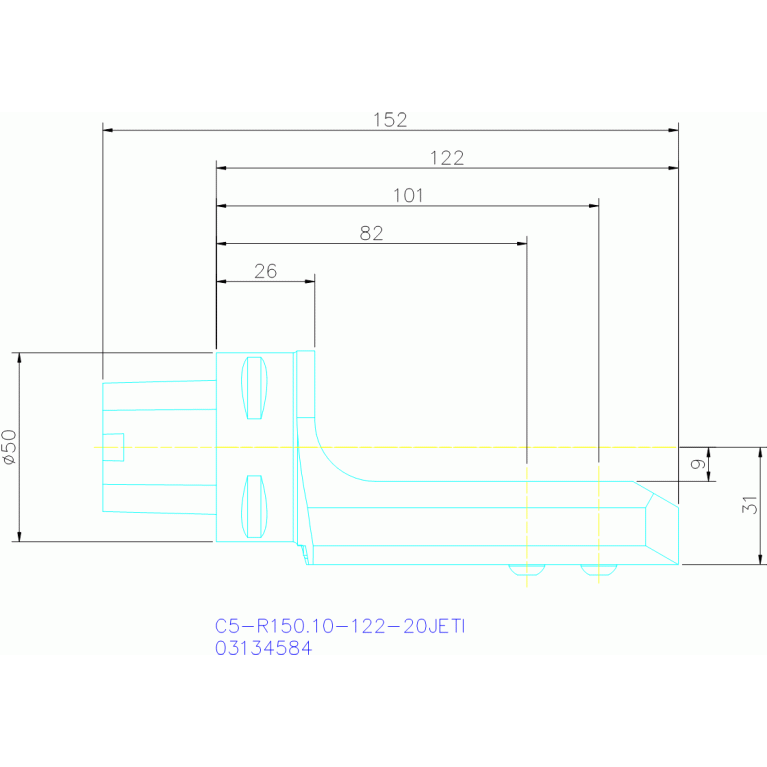

C5-R150.10-122-20JETI

Артикул: 03134584

В наличии

В корзину

Описание

Характеристики

COMPC Company code

SO - SECO Tools

CZCWS Connection size code

150

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

CCS05000185

FamilyProducts

C5-R150.10-122-20JETI

HAND Cutting direction

N - Neutral

HF Functional height

20 mm

ID Technical product number

03134584

Interface codes

J6 /

ISYC Subclass

401-00 - Adaptive item converter, extender, reducer unspecified

LF Functional length

122 mm

LOC-01 CZCWS Connection size code

150

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

SO-SO 150 10-20N

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0500

LOC-03 DCONMS Diameter

50 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS05000185

Name Identifying order number

C5-R150.10-122-20JETI

OAW Overall width

56 mm

RADH Radial height

32 mm

RADW Radial width

31 mm

WF Functional width

26 mm

WT Weight of item

1.317 kg
