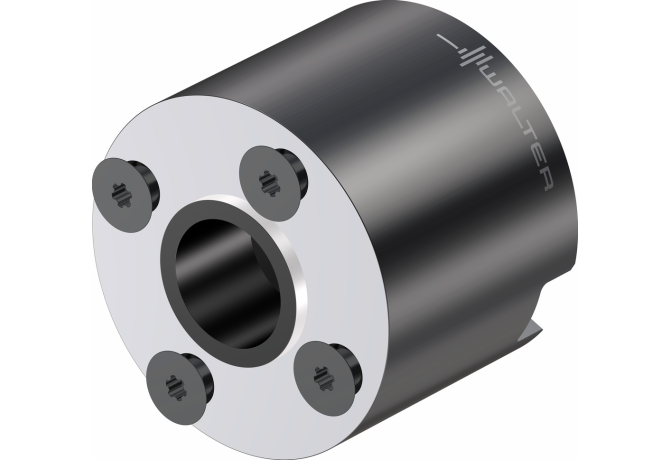

Главная Каталог продукции Toolunited 10 401-00 - Adaptive item converter, extender, reducer unspecified AA704.B26-G32-050-B

AA704.B26-G32-050-B

Артикул: 7353799

В наличии

В корзину

Описание

Характеристики

BD Body diameter

58 mm

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

W - Walter

CXSC Coolant exit style code

0 - Without coolant exit

DAH Diameter access hole

21 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

FDA10001220

FamilyProducts

Intermediate element AA704

ID Technical product number

7353799

Interface codes

J6 / J61

ISO

FDA12S1000$$$$

ISYC Subclass

401-00 - Adaptive item converter, extender, reducer unspecified

KAP Kappa

0 Degree

LB Body length 1

47.3 mm

LF Functional length

47.3 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Type

FDA Milling arbor mounting

LOC-03 CCUMS Unit base

2 Inch

LOC-03 CZCMS Size code

1000

LOC-03 DCONMS Diameter

25.4 mm

LOC-03 ISO

FDA12S1000$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA10001220

LPR Protruding length

47.3 mm

Name Identifying order number

AA704.B26-G32-050-B

OAL Overall length

49.5 mm

RPMX Rotational speed maximum

3200 1/min

WT Weight of item

0.804 kg
