Главная Каталог продукции Toolunited 10 401-00 - Adaptive item converter, extender, reducer unspecified C3-LC2085-4038M

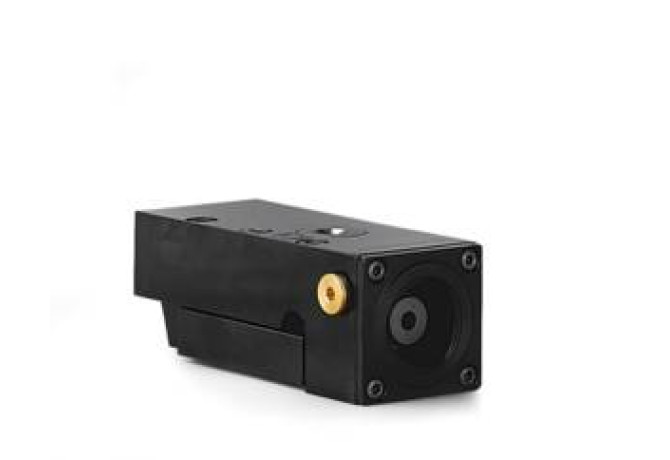

C3-LC2085-4038M

Артикул: 00093954

В наличии

В корзину

Описание

Характеристики

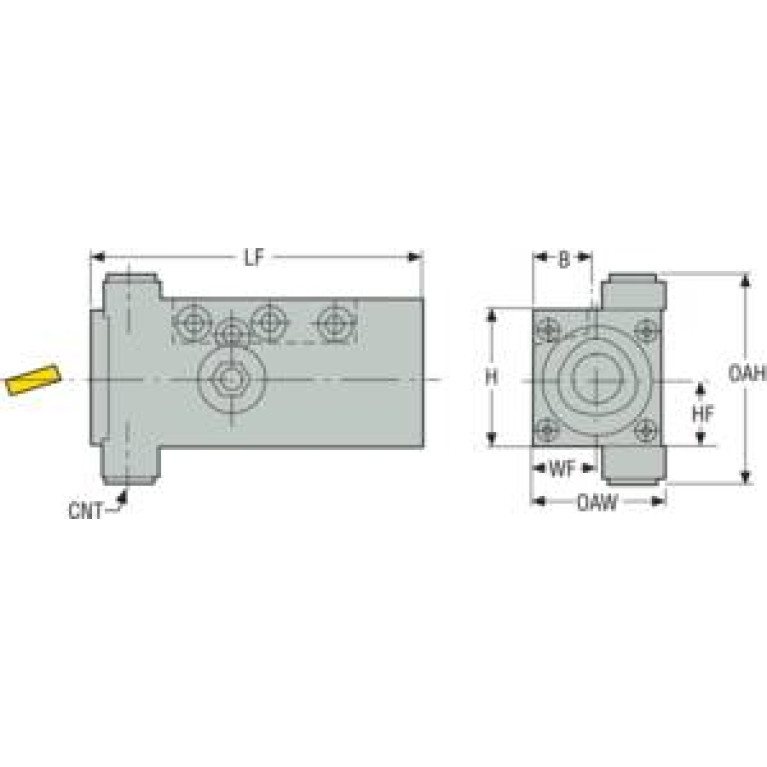

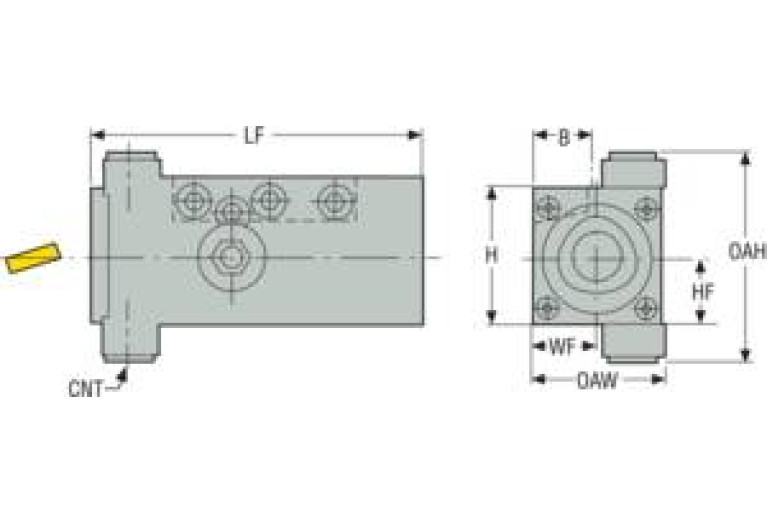

BD Body diameter

32 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

CCS

CCUWS Connection code unit base

COMPC Company code

SO - SECO Tools

CZCWS Connection size code

0320

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

FamilyProducts

C3-LC2085-4038M

HAND Cutting direction

L - Left

HF Functional height

20 mm

ID Technical product number

00093954

Interface codes

ISYC Subclass

401-00 - Adaptive item converter, extender, reducer unspecified

LF Functional length

95 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

CCS Coromant Capto System SANDVIK

LOC-01 CCUWS Connection code unit base

8 non-dimensional size

LOC-01 CZCWS Connection size code

0320

LOC-01 ISO

CCS01C0320$$$$

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

CCS03200185

LOC-02-Connection-codes

J4 / J431 - Workpiece end

LOC-02-DIN

SO-CCS003001M0

Name Identifying order number

C3-LC2085-4038M

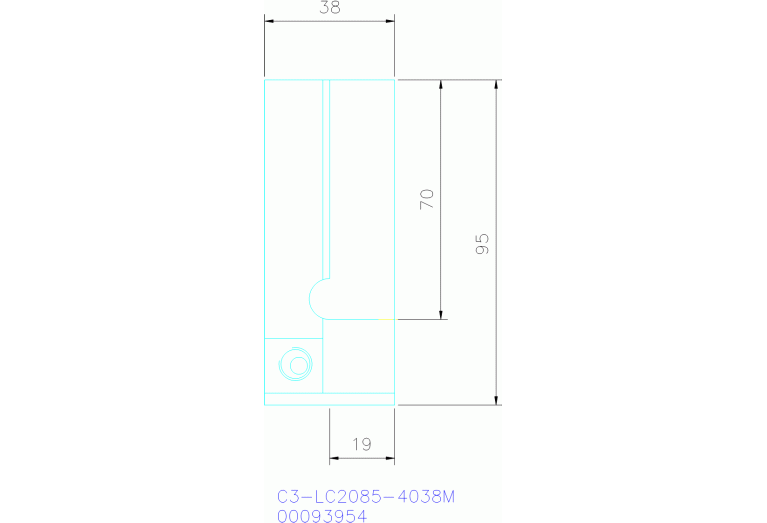

OAW Overall width

38 mm

WF Functional width

19 mm

WT Weight of item

1.047 kg
