Главная Каталог продукции Toolunited 10 314-00 - Cartridge for indexable insert unspecified KIT-G2042.26N-4T40-CE4

KIT-G2042.26N-4T40-CE4

KIT-G2042.26N-4T40-CE4 KIT-G2042.26N-4T40-CE4 KIT-G2042.26N-4T40-CE4

KIT-G2042.26N-4T40-CE4

Walter
Артикул: 6597457
В наличии
В корзину
Описание
Характеристики
BMC Body material code
S - Solid steel
CDX Cutting depth maximum
40 mm
COMPC Company code
W - Walter
CW Cutting width
4 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
PMW02600185
DIN CSW1
W-SX004000*******
FamilyProducts

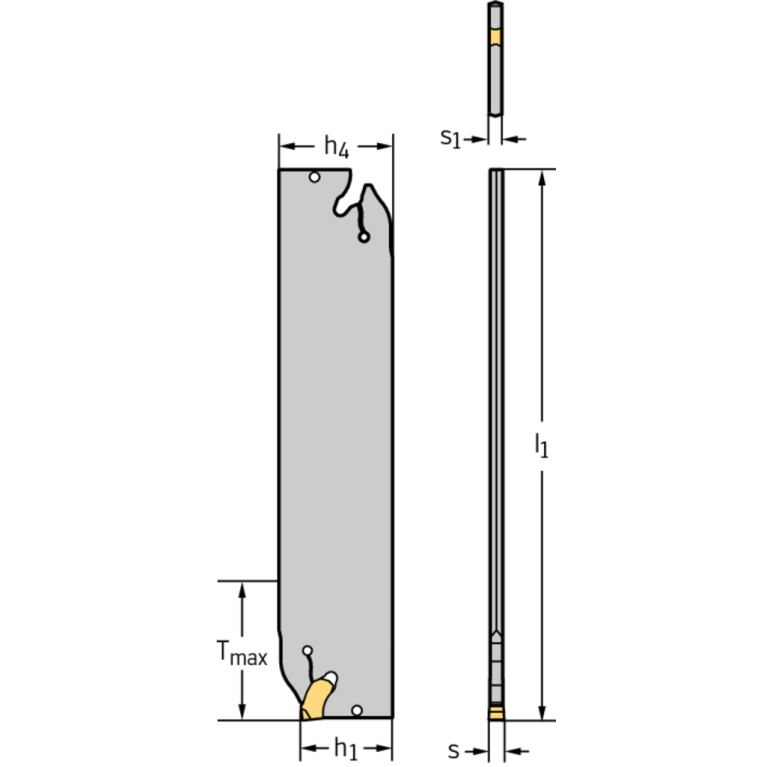

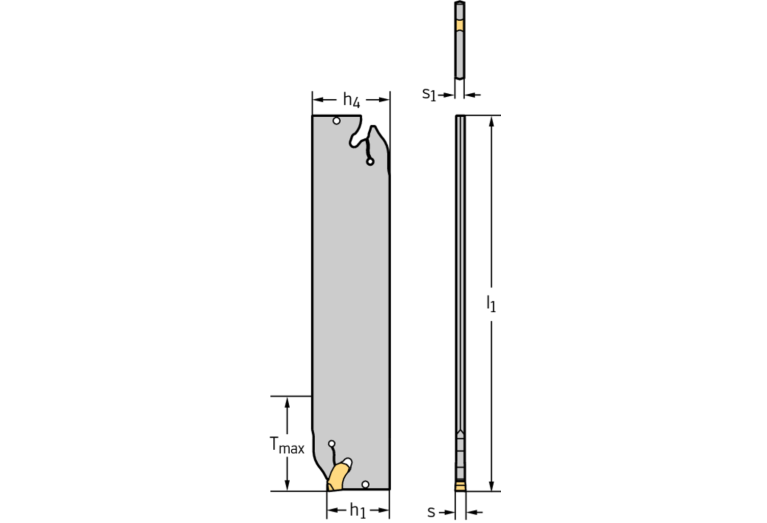

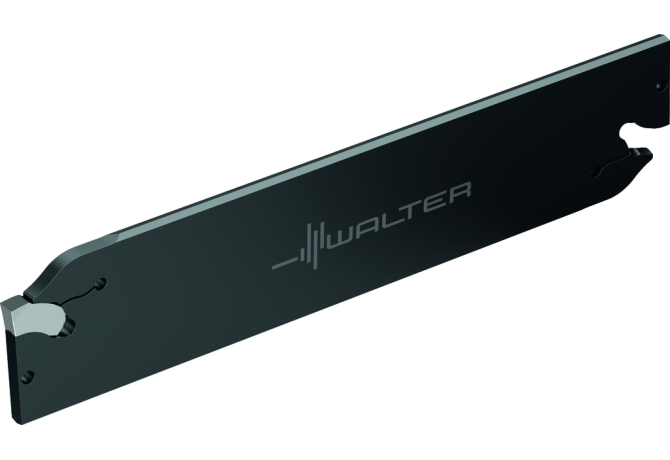

Deep parting blade G2042...N
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
N - Neutral
HF Functional height
0 mm
ID Technical product number
6597457
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
PMW01C0260$$00
ISO CSW1
WR$$SX004000*******
ISYC Subclass
314-00 - Cartridge for indexable insert unspecified
KAPR Tool cutting edge angle
90 Degree
LAMS Inclination angle
0 Degree
LF Functional length
110 mm
LOC-03 B Shank width
3.4 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
PMW Prism mounting WOHLHAUPTER
LOC-03 CCUMS Unit base
8 non-dimensional size
LOC-03 CZCMS Size code
0260
LOC-03 DCONMS Diameter
26 mm
LOC-03 H Shank height
26 mm
LOC-03 ISO
PMW01C0260$$00
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
PMW02600185
LPR Protruding length
55 mm
MTP Clamping type code
C - Top clamping without bore
Name Identifying order number
KIT-G2042.26N-4T40-CE4
OAH Overall height
26 mm
OAL Overall length
110 mm
WF Functional width
1.7 mm
Working process
DEA - Outer diameter grooving,ESA - Cutting off
WT Weight of item
0.274 kg
