Главная Каталог продукции Toolunited 10 314-00 - Cartridge for indexable insert unspecified EB402-1.CC06 (ARS)

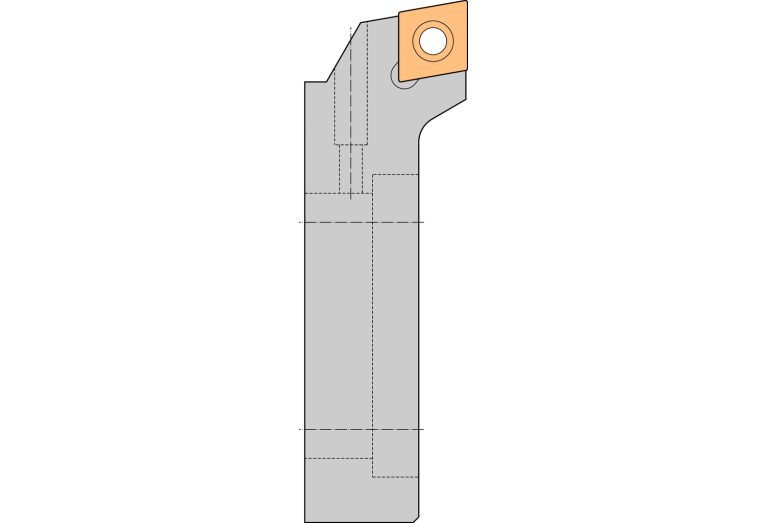

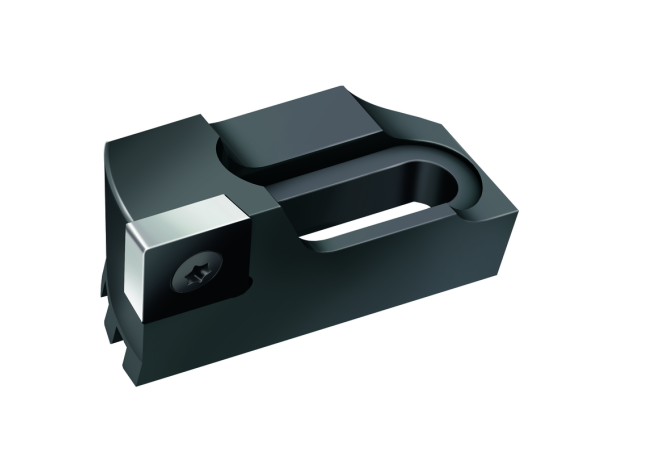

EB402-1.CC06 (ARS)

Артикул: 6830967

В наличии

В корзину

Описание

Характеристики

BLDA Tool style code Position A

BMC Body material code

S - Solid steel

COMPC Company code

W - Walter

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN CSW1

CC0602993N

EPSR Insert included angle

80 Degree

FamilyProducts

ARS boring cartridge CC.. indexable insert

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

R - Right

HF Functional height

4.6 mm

ID Technical product number

6830967

Interface codes

Interface codes CSW1

J41 / J441

ISISO A Indicator for ISO cutting plate Pos.A

ISO CSW1

ISO$CC0602003******

ISYC Subclass

314-00 - Cartridge for indexable insert unspecified

KAPR Tool cutting edge angle

95 Degree

LAMS Inclination angle

0 Degree

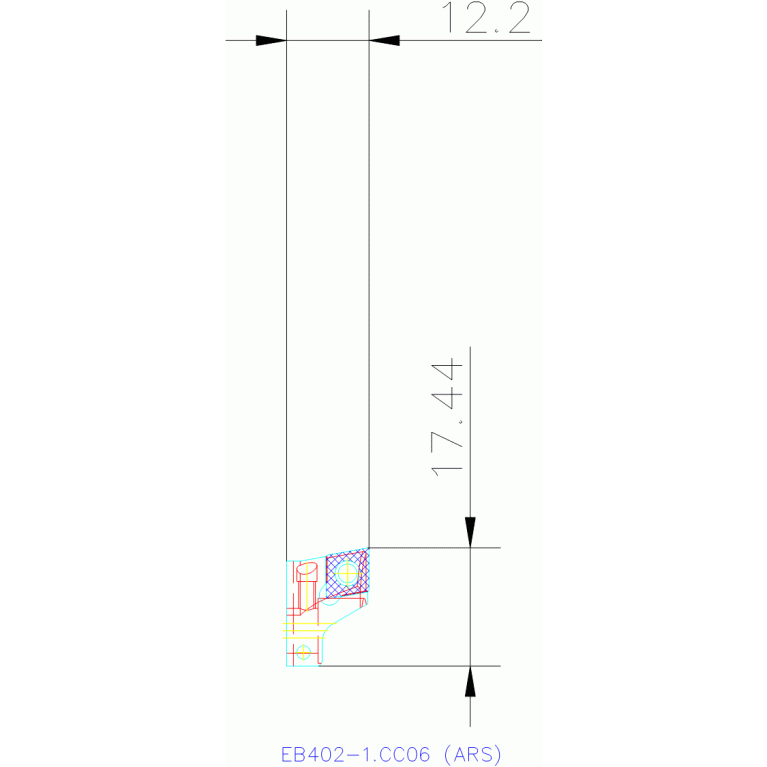

LF Functional length

12.2 mm

LPR Protruding length

12.2 mm

MIID Master insert identification

CCMT 2(1.5)1

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

EB402-1.CC06 (ARS)

OAL Overall length

12.2 mm

WF Functional width

11.19 mm

Working process

No working processes available

WT Weight of item

0.009 kg
