Главная Каталог продукции Toolunited 10 314-00 - Cartridge for indexable insert unspecified EB217-1.CC12 (ARS)

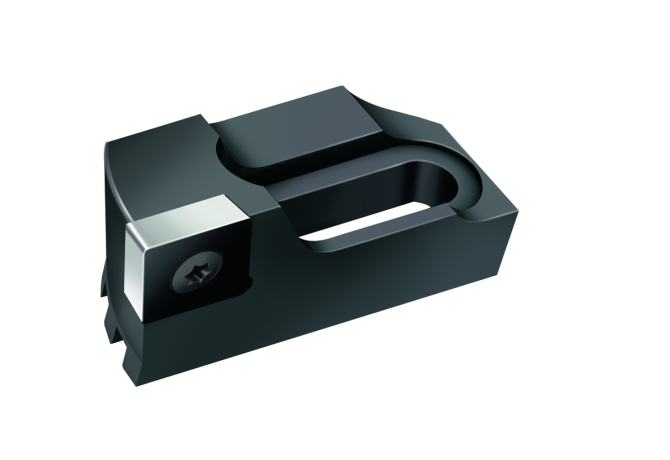

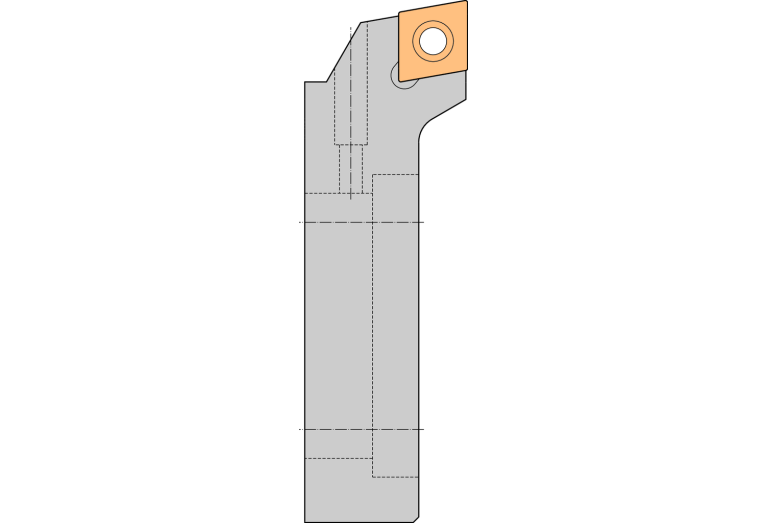

EB217-1.CC12 (ARS)

Артикул: 6830965

В наличии

В корзину

Описание

Характеристики

BLDA Tool style code Position A

BMC Body material code

S - Solid steel

COMPC Company code

W - Walter

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN CSW1

CC1204993N

EPSR Insert included angle

80 Degree

FamilyProducts

ARS boring cartridge CC.. indexable insert

GAMO Rake angle orthogonal

0 Degree

HAND Cutting direction

R - Right

HF Functional height

12.33 mm

ID Technical product number

6830965

Interface codes

Interface codes CSW1

J41 / J441

ISISO A Indicator for ISO cutting plate Pos.A

ISO CSW1

ISO$CC1204003******

ISYC Subclass

314-00 - Cartridge for indexable insert unspecified

KAPR Tool cutting edge angle

95 Degree

LAMS Inclination angle

0 Degree

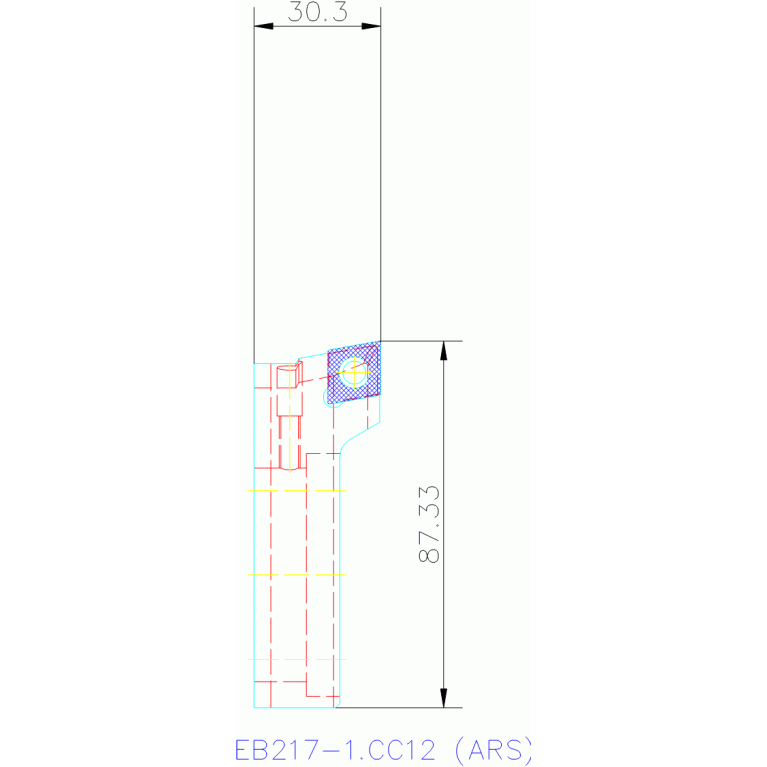

LF Functional length

30.3 mm

LPR Protruding length

30.3 mm

MIID Master insert identification

CCMT 432

MTP Clamping type code

S - Screwed across bore with, counter bore

Name Identifying order number

EB217-1.CC12 (ARS)

OAL Overall length

30.3 mm

WF Functional width

35.58 mm

Working process

No working processes available

WT Weight of item

0.25 kg
