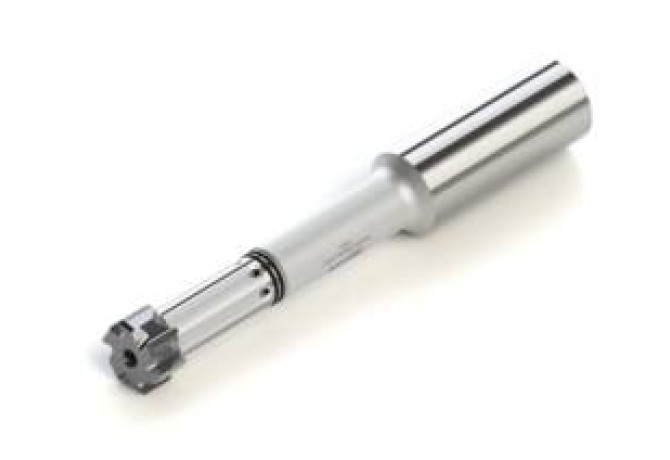

Главная Каталог продукции Toolunited 10 312-00 - Reamer with indexable inserts unspecified PMX05B-02800-10N1

PMX05B-02800-10N1

Артикул: 03144322

В наличии

В корзину

Описание

Характеристики

COMPC Company code

SO - SECO Tools

DC Cutting diameter minimum

7.75 mm

DCP Data chip provision

0 - Without data chip

DCX Cutting diameter 1st step maximum

9.9 mm

Delivery state valid from

3/14/2020

DIN

ZYL01000105

FamilyProducts

PMX05B-02800-10N1

HAND Cutting direction

R - Right

ID Technical product number

03144322

Interface codes

J6 /

ISYC Subclass

312-00 - Reamer with indexable inserts unspecified

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0100

LOC-03 DCONMS Diameter

10 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL01000105

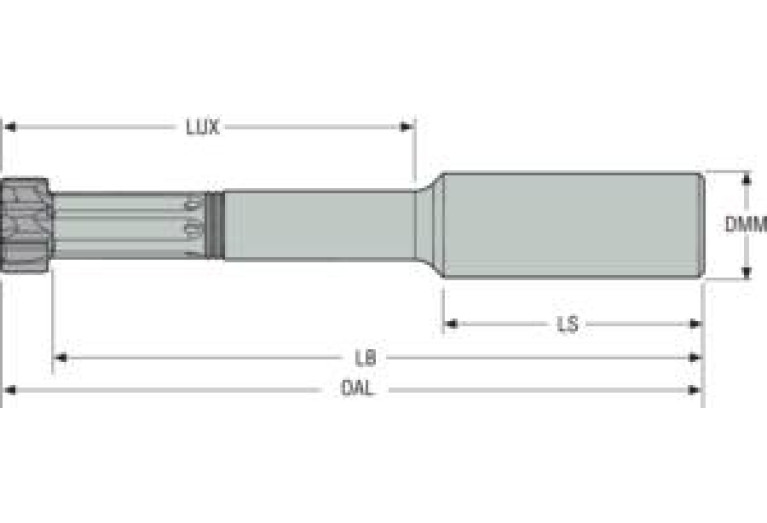

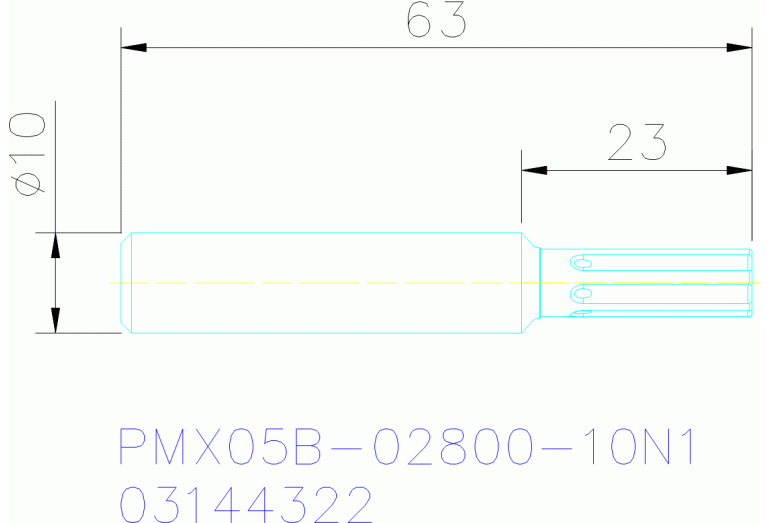

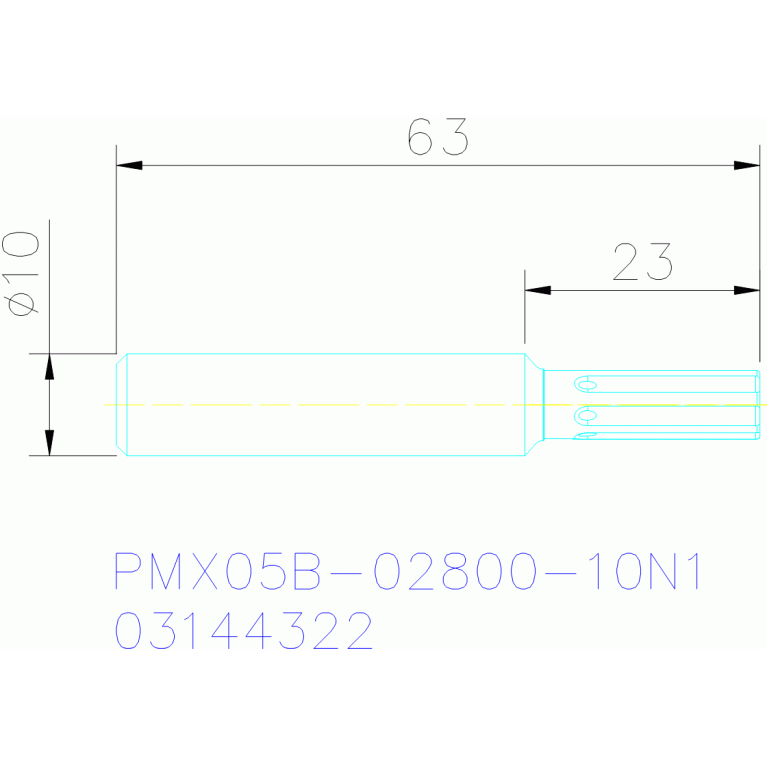

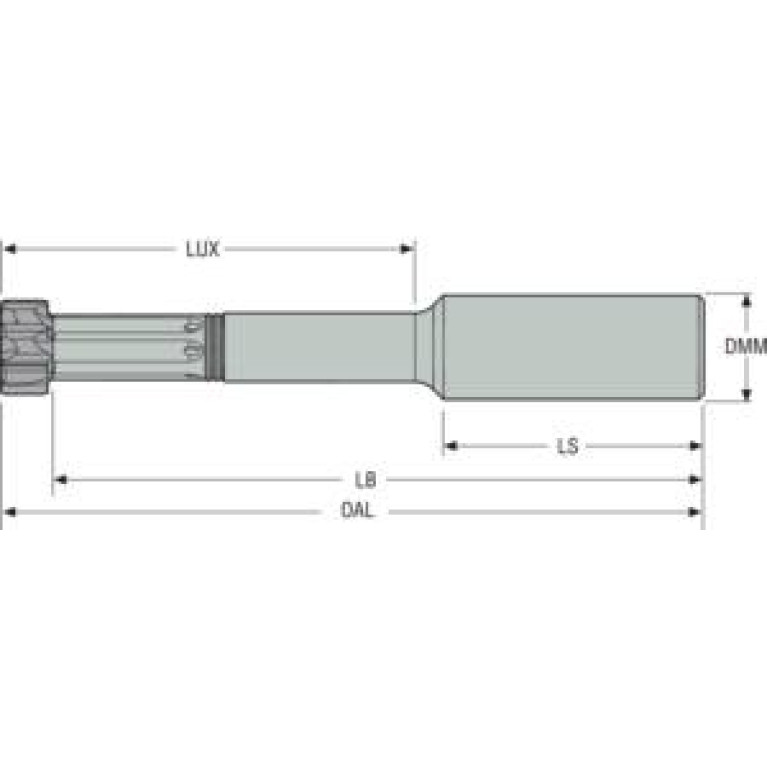

LS Shank length

40 mm

LU Usable length

28 mm

Name Identifying order number

PMX05B-02800-10N1

OAL Overall length

69 mm

Working process

No working processes available

WT Weight of item

0.024 kg
