F4152-12.5
F4152-12.5
Артикул:
5073278
В наличии
Характеристики
BMC Body material code
S - Solid steel
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter minimum
12.5 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
MKG00102085
FamilyProducts

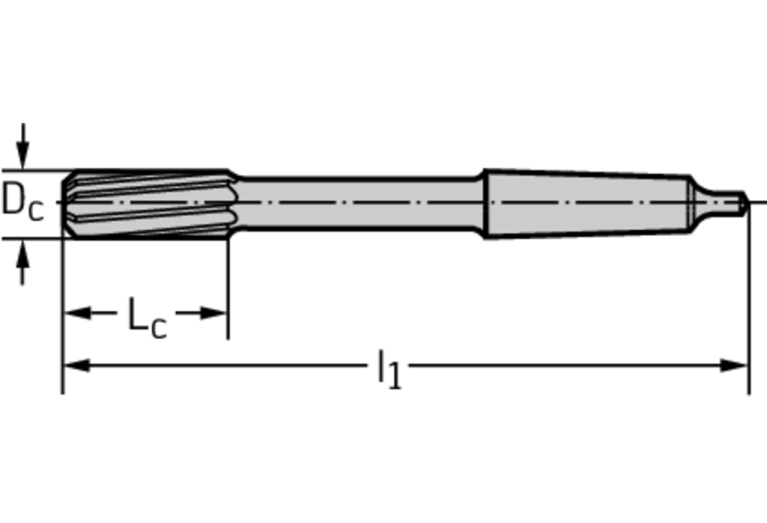

HSS machine reamers with Morse taper F4152
FHA Flute helix angle
7 Degree
FHH Flute helix hand
L - Hand of helix left
GRDMFG Grade manufacturers designation
UNBESCHICH
HAND Cutting direction
R - Right
ID Technical product number
5073278
Interface codes
J6 / J61
ISO
MKG20C0010$$$$
ISYC Subclass
311-01 - Solid cylindrical reamer
LF Functional length
120 mm
LOC-03 CCFMS Form
20
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
MKG Morse taper
LOC-03 CCUMS Unit base
8 non-dimensional size
LOC-03 CZCMS Size code
0010
LOC-03 DCONMS Diameter
1 mm
LOC-03 ISO
MKG20C0010$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
MKG00102085
LU Usable length
116.5 mm
Name Identifying order number
F4152-12.5
NOF Flute count
6

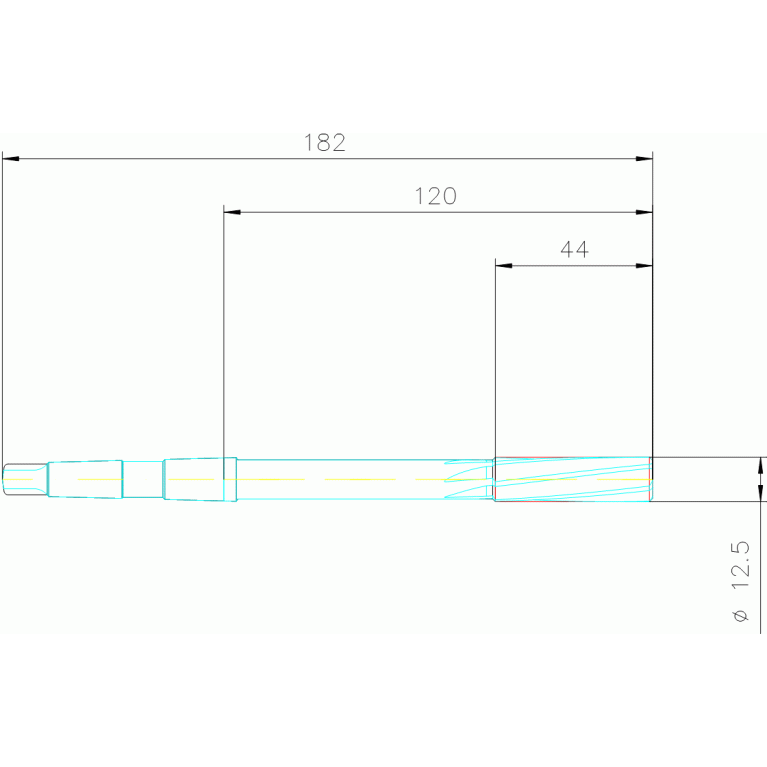

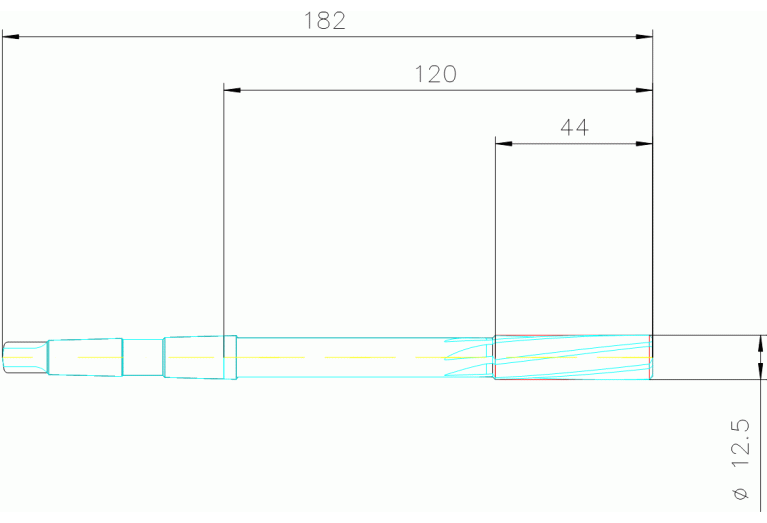

OAL Overall length
182 mm
PLGL Plug length
0.9 mm
RPMX Rotational speed maximum
1600 1/min
STDLET Standard letter to the standard number
BE
STDNO Standard
DIN 208
STDSZ Size to the standard number
0
Working process
REI - Cylindrical reaming
WT Weight of item
0.116 kg
