3103H7-1600 YK10F
3103H7-1600 YK10F
Артикул:
3103H7-1600 YK10F
В наличии
Характеристики
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
ZCC - ZCC Cutting Tools
CXSC Coolant exit style code
0 - Without coolant exit

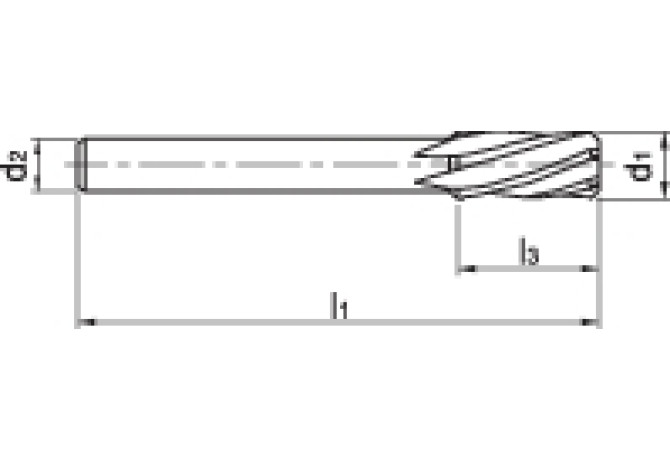

DC Cutting diameter minimum
16 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
1.59 kg
DIN
ZYL01250105
FamilyProducts

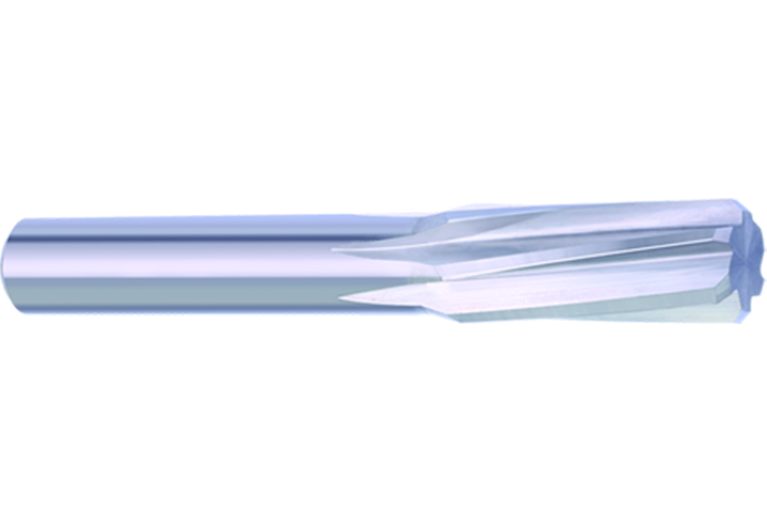

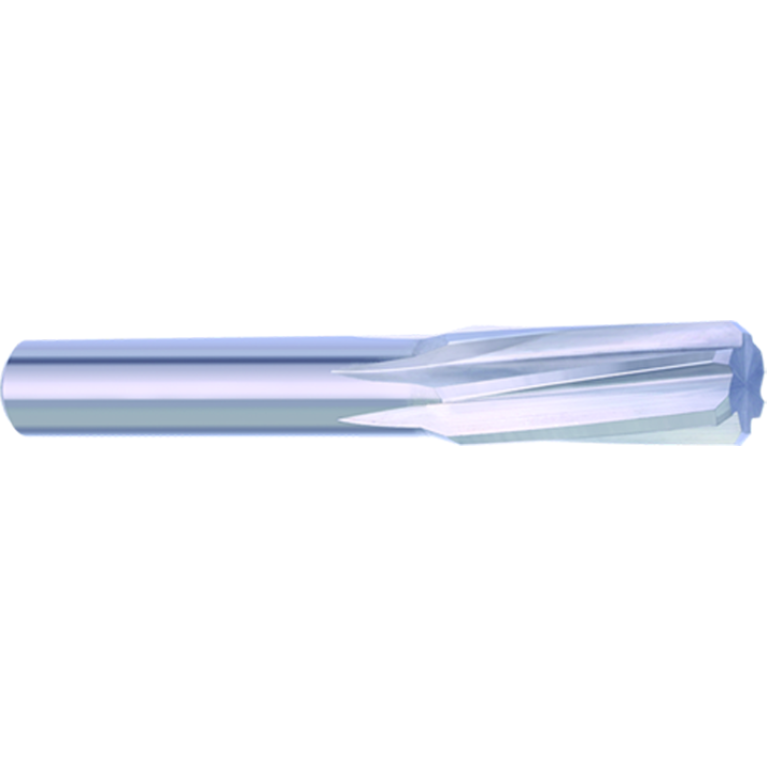

Reamer, left-hand twist
FHA Flute helix angle
7 Degree
FHH Flute helix hand
L - Hand of helix left
GRDMFG Grade manufacturers designation
YK10F
HAND Cutting direction
R - Right
ID Identifying order number
3103H7-1600 YK10F
Interface codes
J6 /
ISYC Subclass
311-01 - Solid cylindrical reamer
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
0 Metric
LOC-03 CZCMS Size code
0125
LOC-03 DCONMS Diameter
12.5 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01250105
LPR Protruding length
32 mm
NOF Flute count
6
OAL Overall length
90 mm
Working process
REI - Cylindrical reaming
