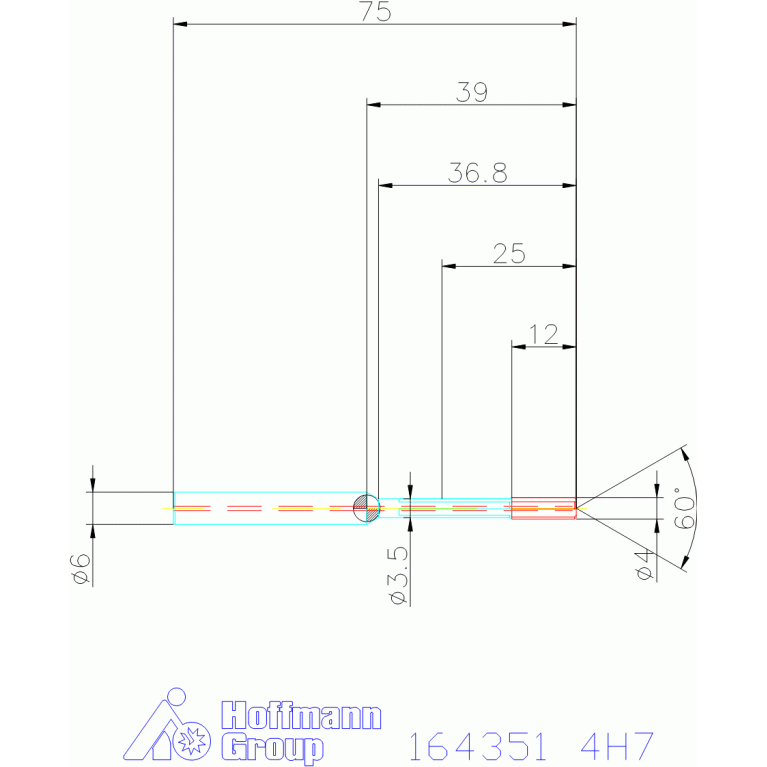

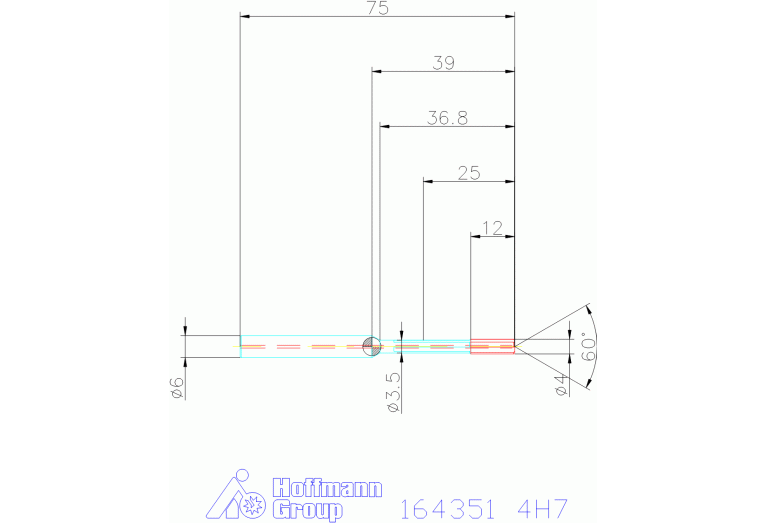

Главная Каталог продукции Toolunited 10 311-01 - Solid cylindrical reamer 164351 4H7

164351 4H7

Артикул: 164351 4H7

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

12 mm

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COATN Coating

TiAlN

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter minimum

4 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL00600115

FamilyProducts

Solid carbide reamer

FHA Flute helix angle

0 Degree

FHH Flute helix hand

N - Hand of helix neutral

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

311-01 - Solid cylindrical reamer

LF Functional length

25 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600115

LPR Protruding length

39 mm

LS Shank length

36 mm

LU Usable length

25 mm

Name Identifying order number

164351 4H7

NOF Flute count

OAL Overall length

75 mm

PLANG Plug angle

PLGL Plug length

0.3 mm

TCDH ISO tolerance class for drilling result

Working process

REI - Cylindrical reaming

WT Weight of item

0.006 kg
