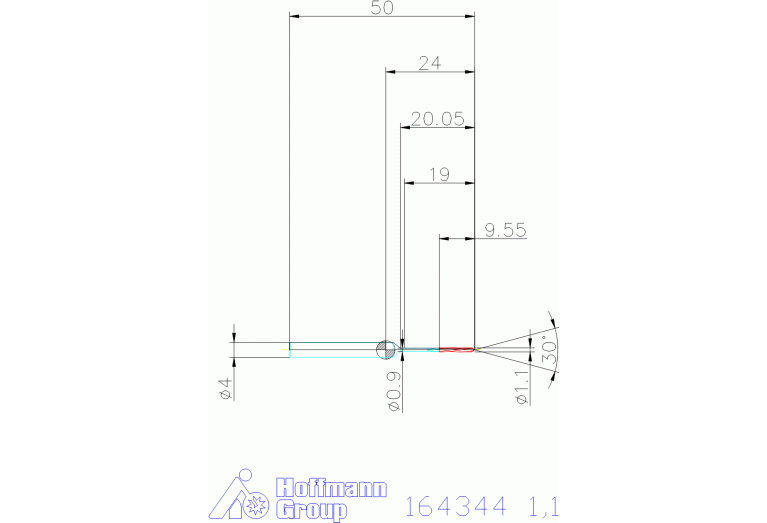

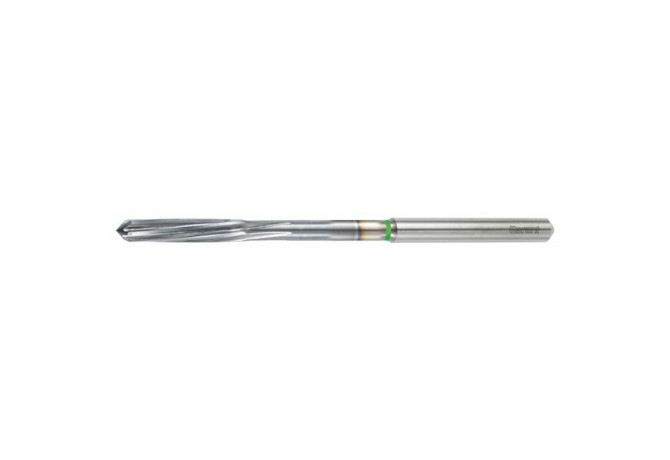

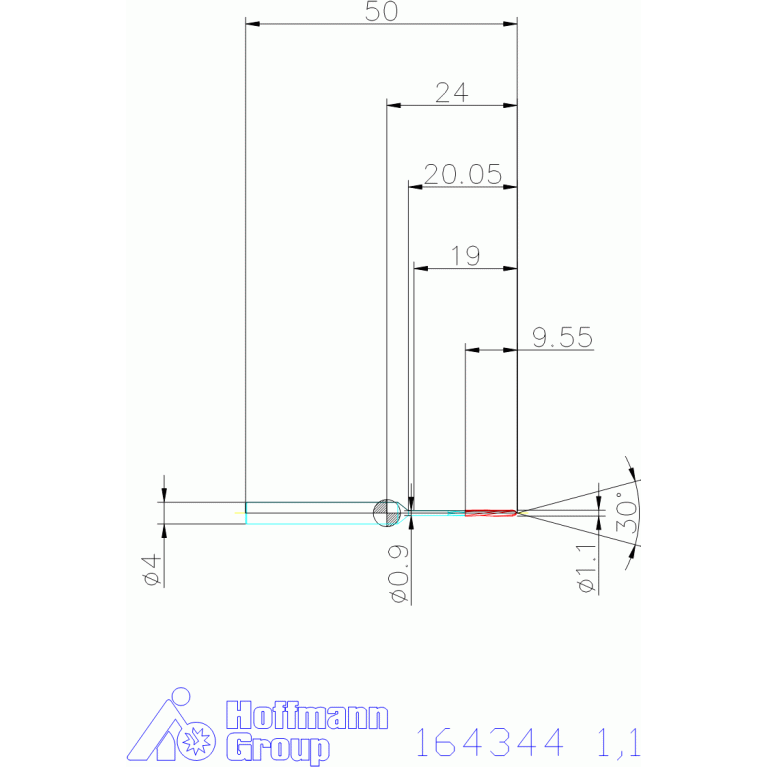

Главная Каталог продукции Toolunited 10 311-01 - Solid cylindrical reamer 164344 1,1

164344 1,1

Артикул: 164344 1,1

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

9.55 mm

CNSC Coolant entry style code

0 - Without coolant entry

COATN Coating

TiAlN

COMPC Company code

HOG - Hoffmann Group

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

1.1 mm

DCP Data chip provision

0 - Without data chip

DIN

ZYL00400105

FamilyProducts

Solid carbide NC machine reamer

FHA Flute helix angle

9 Degree

FHH Flute helix hand

L - Hand of helix left

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

311-01 - Solid cylindrical reamer

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0040

LOC-03 DCONMS Diameter

4 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00400105

LPR Protruding length

24 mm

LS Shank length

28 mm

LU Usable length

19 mm

Name Identifying order number

164344 1,1

NOF Flute count

OAL Overall length

50 mm

PLANG Plug angle

PLGL Plug length

0.4 mm

Working process

REI - Cylindrical reaming

WT Weight of item

0.0055 kg
