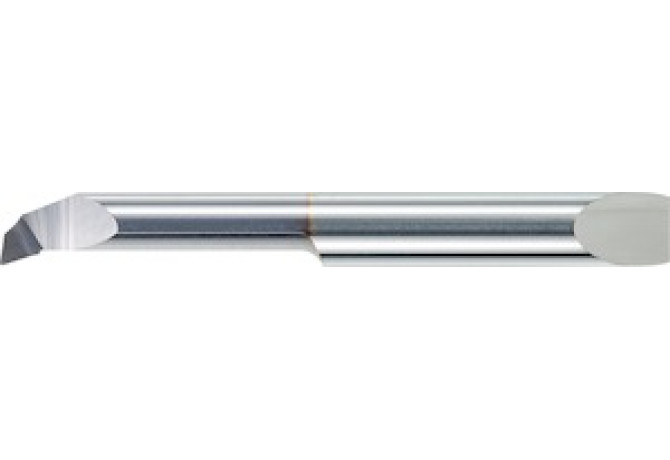

Главная Каталог продукции Toolunited 10 310-09 - Internal turning tool no 9 - offset side cutting design 270514 5,2

270514 5,2

Артикул: 270514 5,2

В наличии

В корзину

Описание

Характеристики

COMPC Company code

HOG - Hoffmann Group

DIN

ZYL00500105

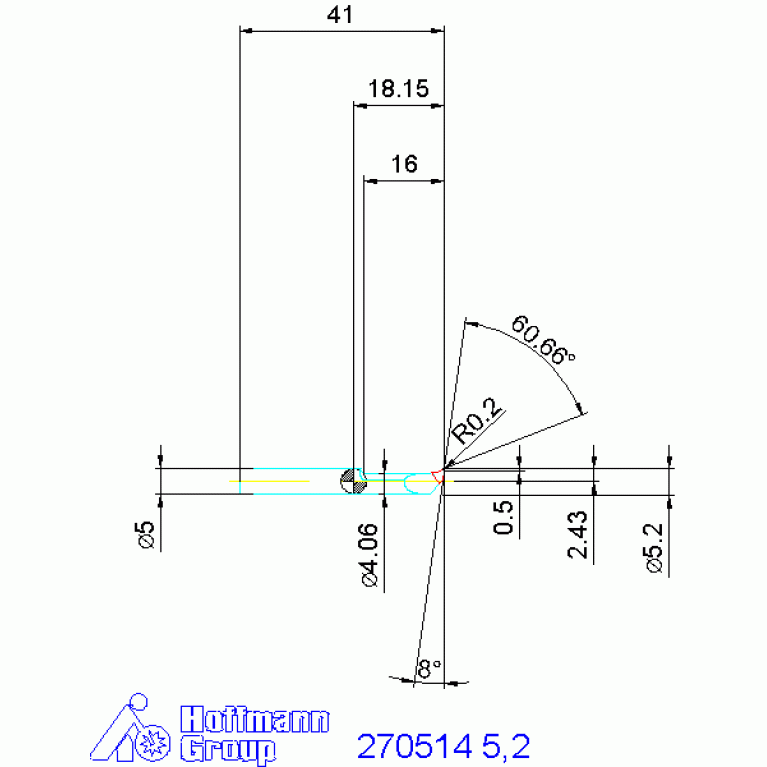

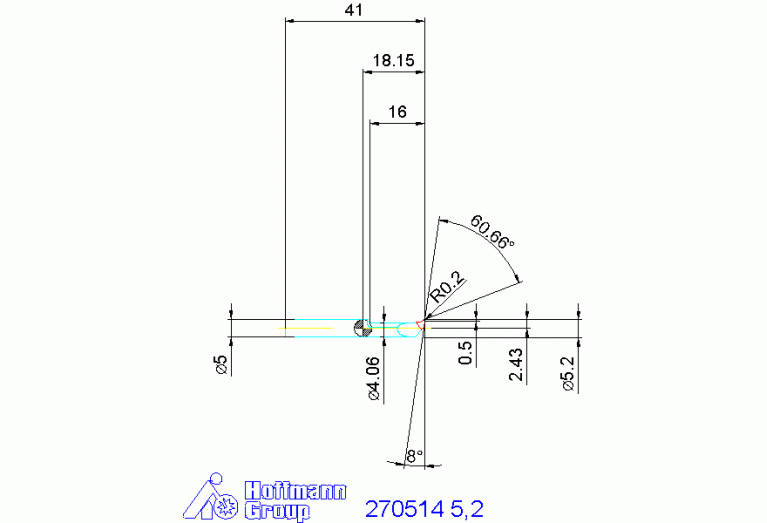

DMIN Minimum bore diameter

5.2 mm

EPSR Insert included angle

21 Degree

FamilyProducts

Boring-out insert

HAND Cutting direction

R - Right

HF Functional height

2.5 mm

Interface codes

J6 /

ISYC Subclass

310-09 - Internal turning tool no 9 - offset side cutting design

KAPR Tool cutting edge angle

8 Degree

LAMS Inclination angle

0 Degree

LF Functional length

0 mm

LFA A dimension on lf

0 mm

LH Head length

18.15 mm

LOC-03 B Shank width

4.04 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0050

LOC-03 DCONMS Diameter

5 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00500105

Name Identifying order number

270514 5,2

OAL Overall length

41 mm

SX Shank cross section shape code

10 - Round shank

WF Functional width

2.44 mm

WFA A dimension on wf

0 mm

Working process

No working processes available

WT Weight of item

0.01 kg
