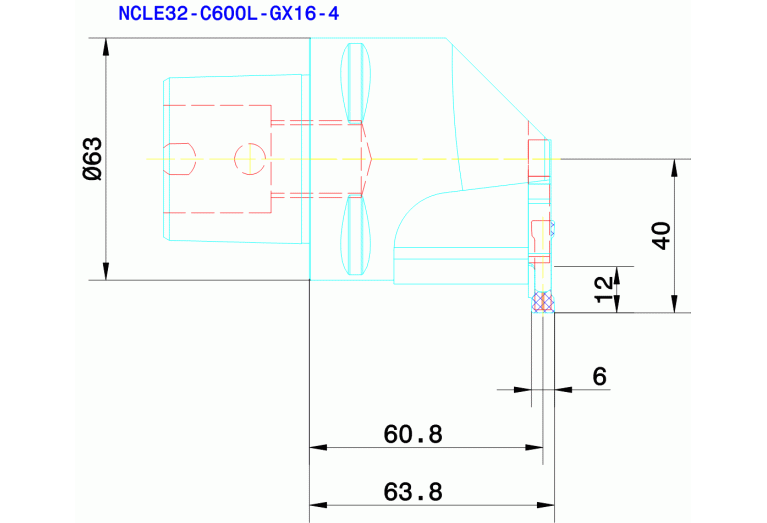

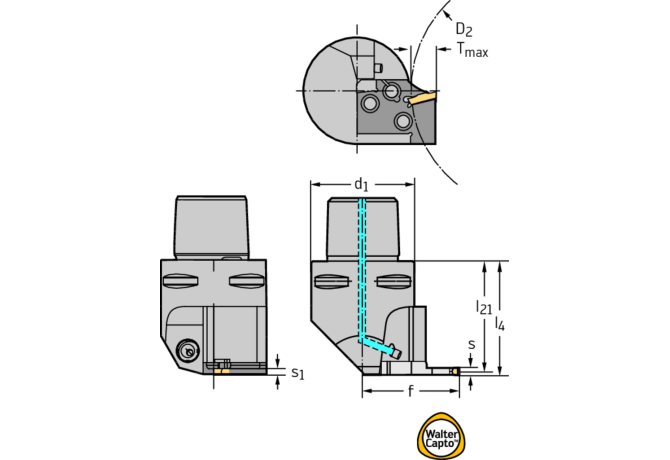

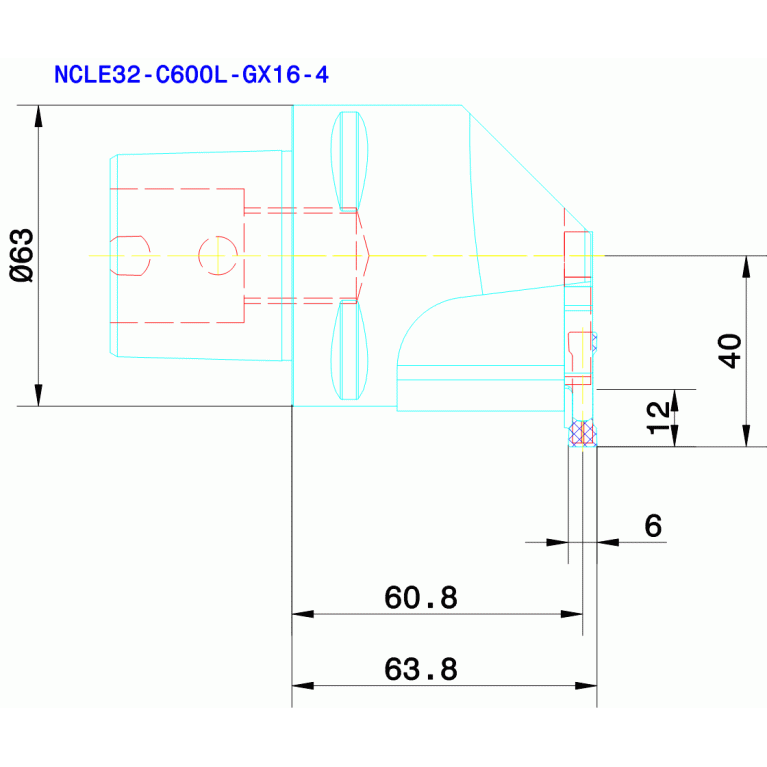

NCLE32-C600L-GX16-4

NCLE32-C600L-GX16-4 NCLE32-C600L-GX16-4 NCLE32-C600L-GX16-4

NCLE32-C600L-GX16-4

Walter
Артикул: 5198731
В наличии
В корзину
Описание
Характеристики
CDX Cutting depth maximum
12 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CCS06300195
DIN CSW1
W-GX1640EX
FamilyProducts
Groove turning – 90° radial grooving C...-NCLE
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
L - Left
HF Functional height
0 mm
ID Technical product number
5198731
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
CCS01C0630$$$$
ISO CSW1
WR$$GX164000***EX**
ISYC Subclass
309-11 - System tool for OD grooving and parting
KAPR Tool cutting edge angle
90 Degree
LAMS Inclination angle
0 Degree
LF Functional length
60.8 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Unit base
9 non-dimensional size with coolant
LOC-03 CZCMS Size code
0630
LOC-03 DCONMS Diameter
63 mm
LOC-03 ISO
CCS01C0630$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS06300195
LPR Protruding length
60.8 mm
LTA Length tool assembly
60.8 mm
MTP Clamping type code
C - Top clamping without bore
Name Identifying order number
NCLE32-C600L-GX16-4
OAL Overall length
101.8 mm
STDNO Standard
ISO26623-1
WF Functional width
40 mm
Working process
No working processes available
WT Weight of item
1.342 kg
