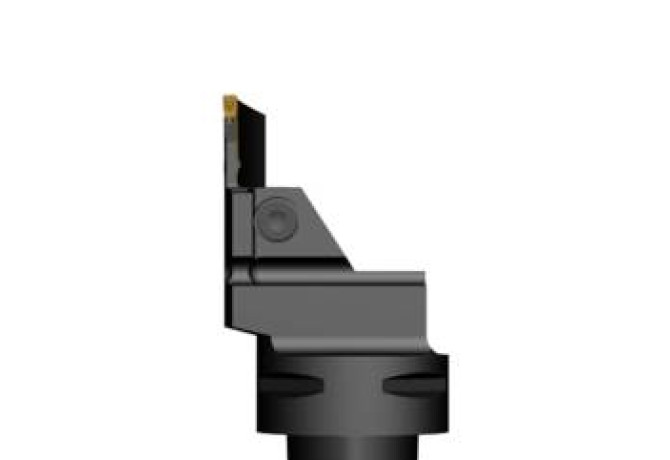

C5-CFOL-35100-06L130090-JET
C5-CFOL-35100-06L130090-JET
Артикул:
02718763
В наличии
Характеристики
A1A SKJ Cutting edge angle major Pos. A
1
A2A SKJ Stechbreite Nennmaß Schneidkörper Pos.A
6 mm
BLDA SKJ Tool style code Position A
1

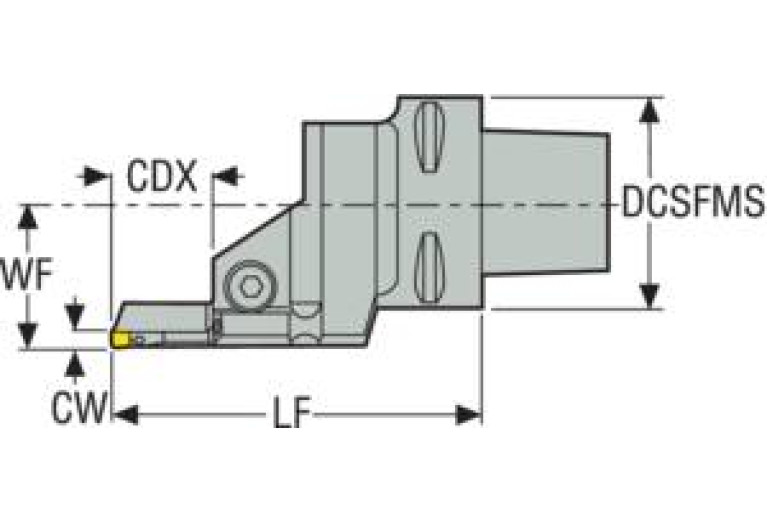

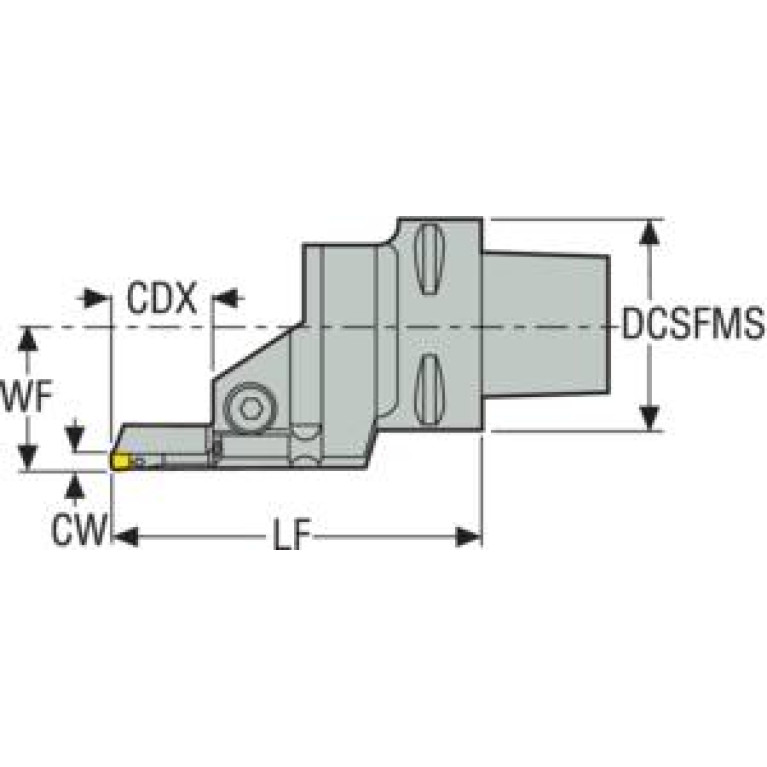

CDX Cutting depth maximum
36 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
CCS05000185
DIN CSW1
SO-SO LC 1606
FamilyProducts
C5-CFOL-35100-06L130090-JET
G1A SKJ Schneidkörperlänge Schneidkörper Pos.A
17.4 mm
G7A SKJ Schneidkantenhöhe Schneidkörper Pos.A
4.2 mm
HAND Cutting direction
L - Left
ID Technical product number
02718763
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
CCS01C0500$$$$
ISO CSW1
SO$$LC1606**1LB****
ISYC Subclass
309-11 - System tool for OD grooving and parting
KAPR Tool cutting edge angle
90 Degree

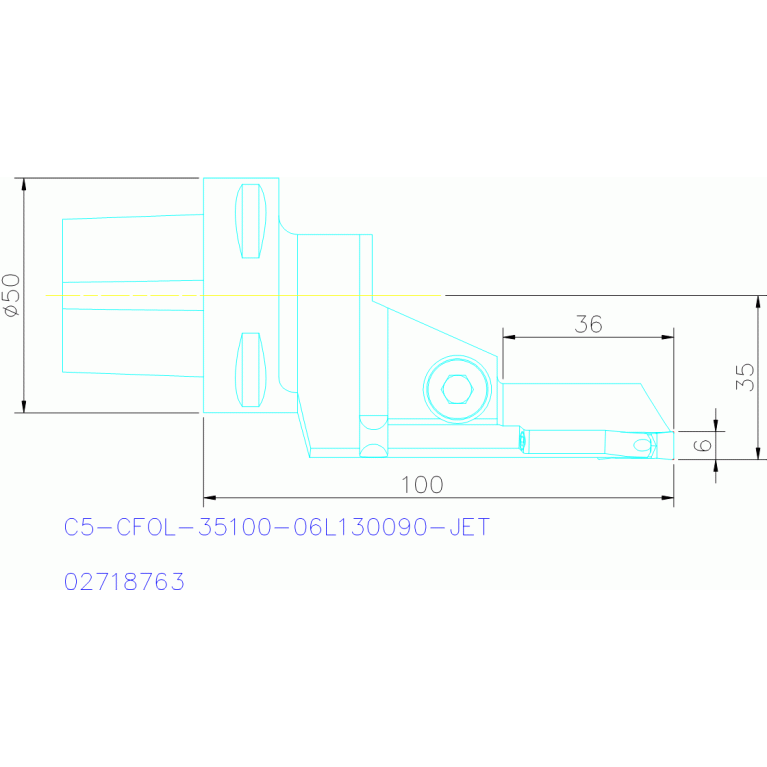

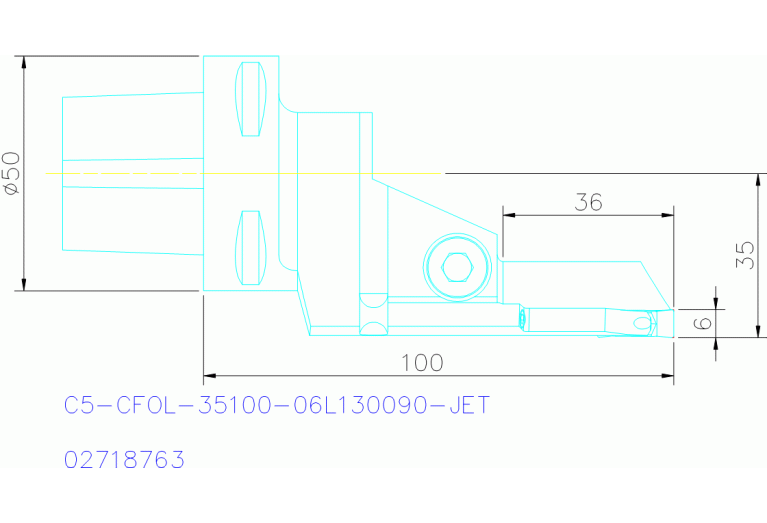

LF Functional length
100 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0500
LOC-03 ISO
CCS01C0500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS05000185
LPR Protruding length
100 mm
LTA Length tool assembly
100 mm
MIID Master insert identification
LC1606
Name Identifying order number
C5-CFOL-35100-06L130090-JET
WF Functional width
35 mm
Working process
No working processes available
WT Weight of item
0.866 kg
