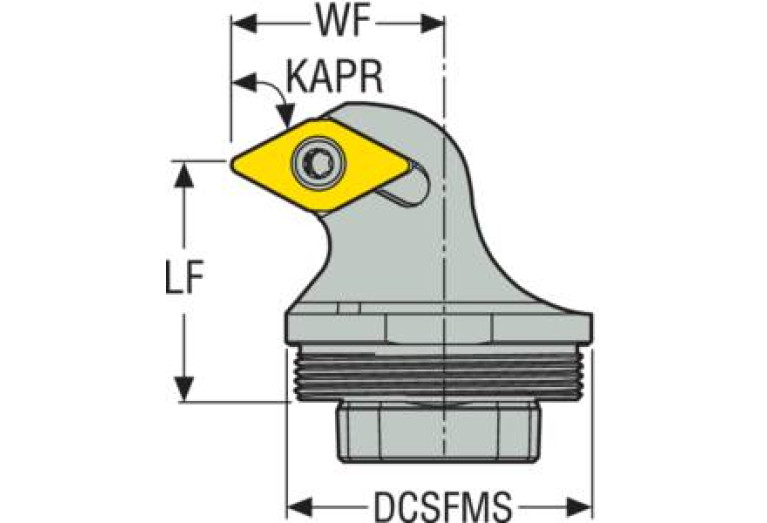

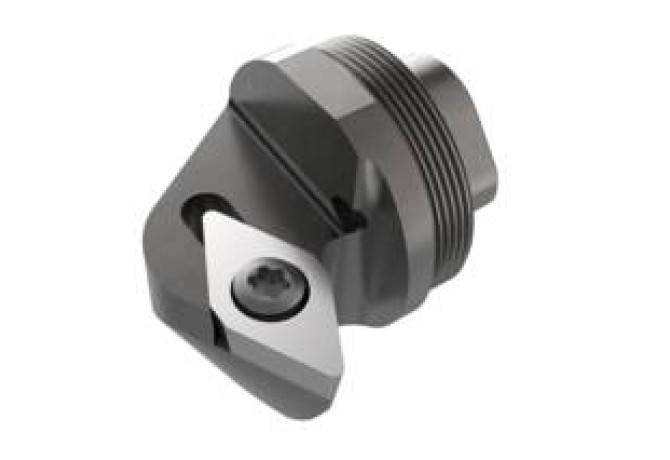

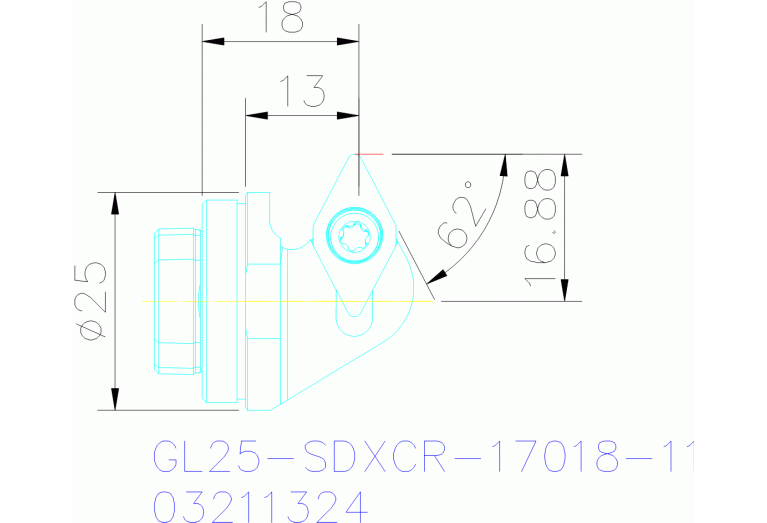

GL25-SDXCR-17018-11

GL25-SDXCR-17018-11 GL25-SDXCR-17018-11 GL25-SDXCR-17018-11 GL25-SDXCR-17018-11

GL25-SDXCR-17018-11

Seco
Артикул: 03211324
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
B3A Inscribed circle diameter Pos. A
9.525 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
3.97 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
0.1 mm
DCP Data chip provision
0 - Without data chip
DIN
GRL02500115
DMIN Minimum bore diameter
32 mm
FamilyProducts
GL25-SDXCR-17018-11
GAMF Rake angle radial
-6 Degree
GAMO Rake angle orthogonal
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
HF Functional height
0 mm
ID Technical product number
03211324
Interface codes
J6 / J61
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
SGL01C0250$$$$
ISO CSW1
ISO$DC11T3**3RB****
ISYC Subclass
309-09 - System tool for internal turning
KAPR Tool cutting edge angle
62.5 Degree
LAMS Inclination angle
-6 Degree
LF Functional length
18 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
GRL GRANLUND
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0250
LOC-03 ISO
SGL01C0250$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
GRL02500115
LTA Length tool assembly
18 mm
MIID Master insert identification
DCGT11T301-F1
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
GL25-SDXCR-17018-11
OAL Overall length
24.3 mm
WF Functional width
17 mm
Working process
No working processes available
WT Weight of item
0.15 kg
