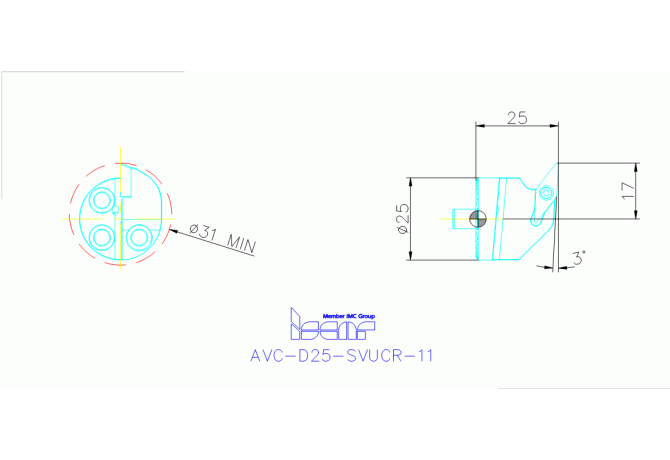

AVC-D25-SVUCR-11
AVC-D25-SVUCR-11
Артикул:
3331872
В наличии
Характеристики
A2A Clearance angle major Pos. A
7 Degree
B3A Inscribed circle diameter Pos. A
6.35 mm
BLDA Tool style code Position A
3
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IS - Iscar
CXSC Coolant exit style code
2 - With Coolant exit, radial
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/30/2017
DMIN Minimum bore diameter
32 mm
EPSR Insert included angle
35 Degree
FamilyProducts
Interchangeable boring head AVC-SVUCR/L
GAMF Rake angle radial
0 Degree
GAMP Rake angle axial
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
3331872
Interface codes
/
Interface codes CSW1
/ J441
ISO CSW1
IS$$44405450778820
ISYC Subclass
309-09 - System tool for internal turning
KAPR Tool cutting edge angle
93 Degree
L Cutting edge length
11 mm
LF Functional length
25 mm
LOC-03 DCONMS Diameter
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LTA Length tool assembly
25 mm
MIID Master insert identification
VC..1103
Name Identifying order number
AVC-D25-SVUCR-11
WF Functional width
17 mm
Working process
No working processes available
