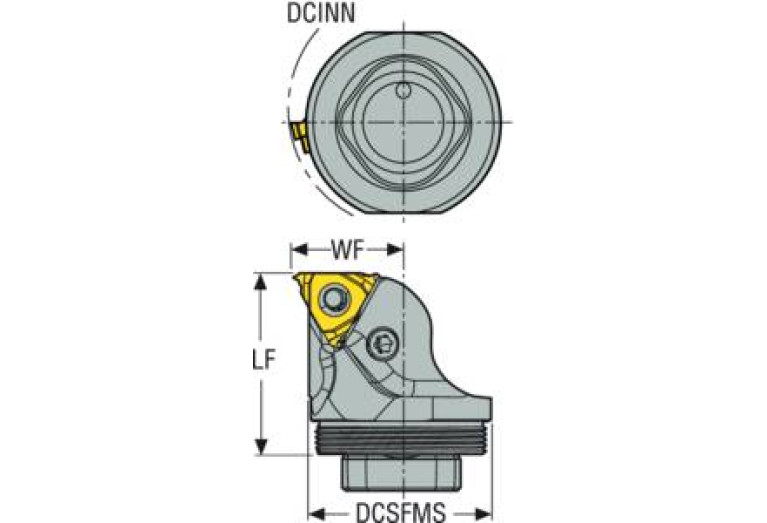

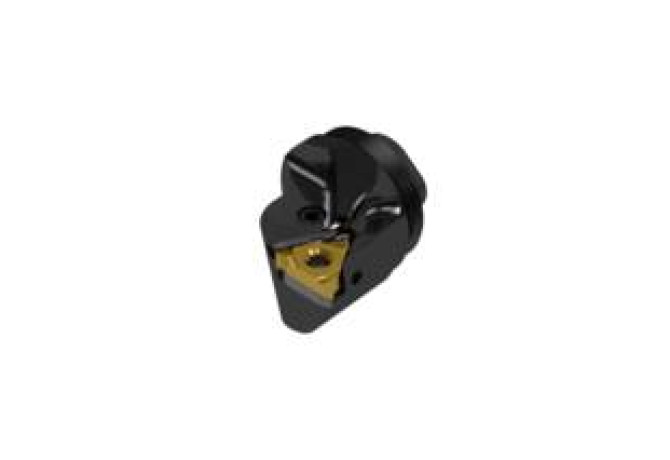

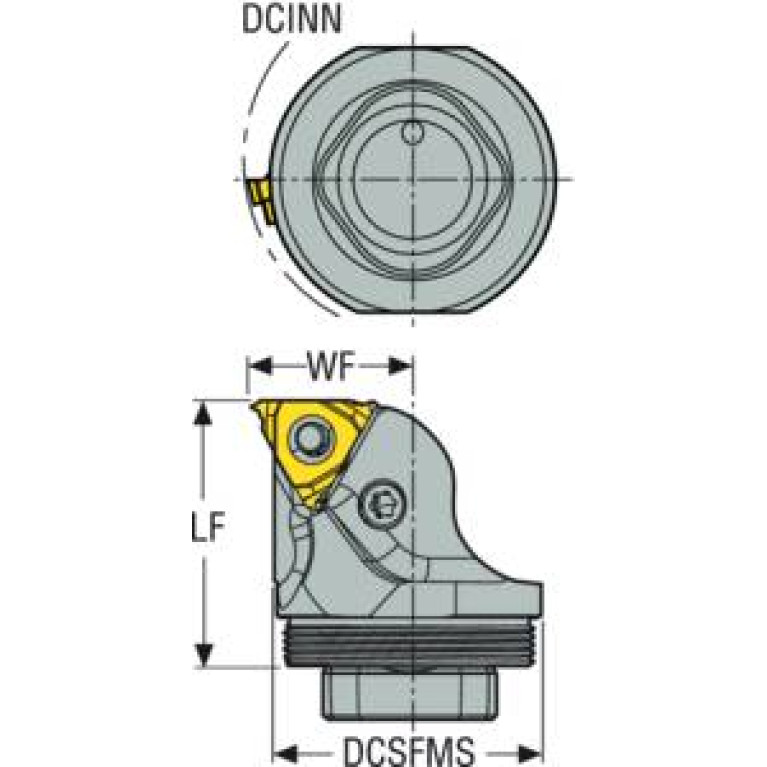

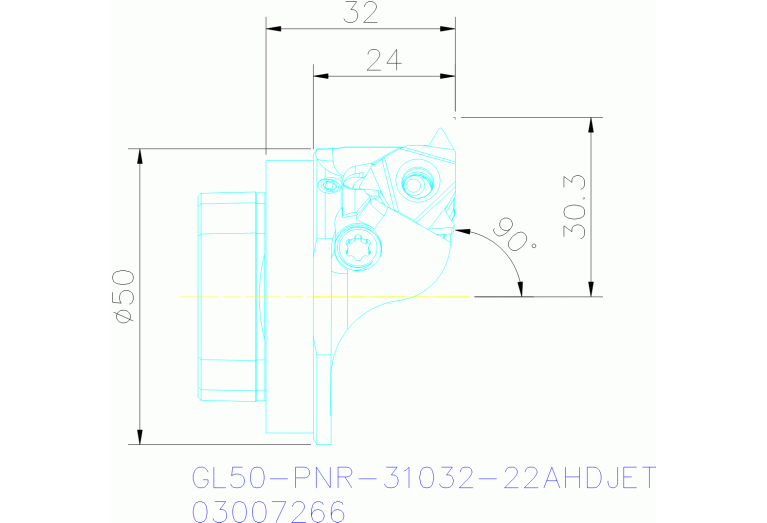

Главная Каталог продукции Toolunited 10 309-08 - System tool for external threading GL50-PNR-31032-22AHDJET

GL50-PNR-31032-22AHDJET

GL50-PNR-31032-22AHDJET

GL50-PNR-31032-22AHDJET

GL50-PNR-31032-22AHDJET

GL50-PNR-31032-22AHDJET

GL50-PNR-31032-22AHDJET

GL50-PNR-31032-22AHDJET

SECO Tools

Артикул: 03007266

В наличии

В корзину

Описание

Характеристики

A1A SKJ Cutting edge angle major Pos. A

6

A61A SKJ Thread pitch minimum

1.5 mm

BLDA SKJ Tool style code Position A

6

C8A SKJ Spitzenradius Schneidkörper Pos.A

0.12 mm

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

SO - SECO Tools

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

DCP Data chip provision

0 - Without data chip

Delivery state valid from

3/14/2020

DIN

GRL05000115

DIN CSW1

SO-SO 22NR

DMIN Minimum bore diameter

56 mm

FamilyProducts

GL50-PNR-31032-22AHDJET

G3A SKJ Eingeschriebener Kreis Schneidkörper Pos.A

12.7 mm

G7A SKJ Schneidkantenhöhe Schneidkörper Pos.A

4.71 mm

HAND Cutting direction

R - Right

HF Functional height

0 mm

ID Technical product number

03007266

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

SGL01C0500$$$$

ISO CSW1

SO$$NR22R

ISYC Subclass

309-08 - System tool for external threading

LF Functional length

32 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

GRL GRANLUND

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0500

LOC-03 ISO

SGL01C0500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

GRL05000115

LPR Protruding length

32 mm

LTA Length tool assembly

32 mm

MIID Master insert identification

ISO SO$$NR22R

MTP Clamping type code

P - Hole clamping, with straight bore

Name Identifying order number

GL50-PNR-31032-22AHDJET

WF Functional width

30.3 mm

Working process

No working processes available

WT Weight of item

0.34 kg
