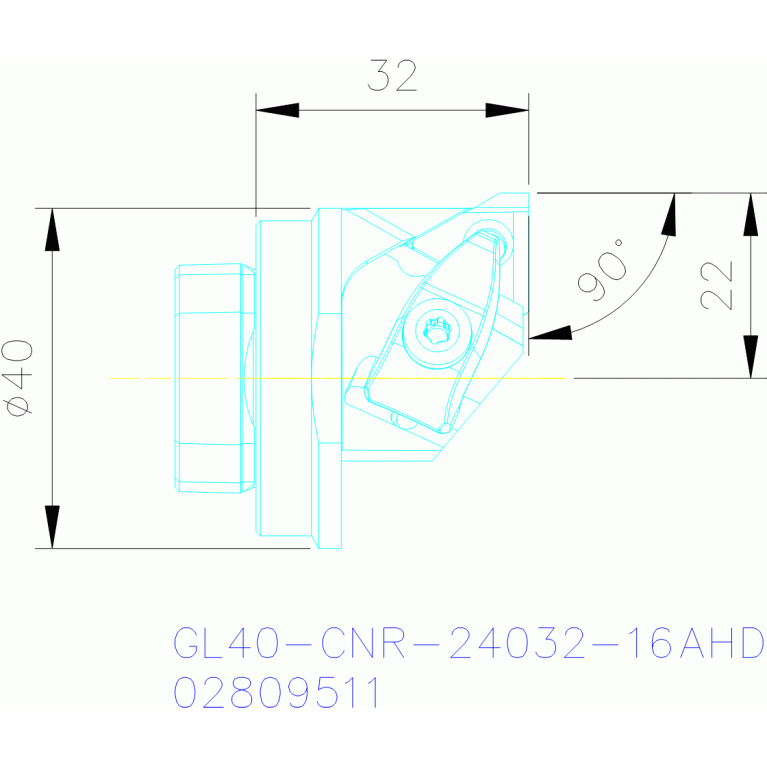

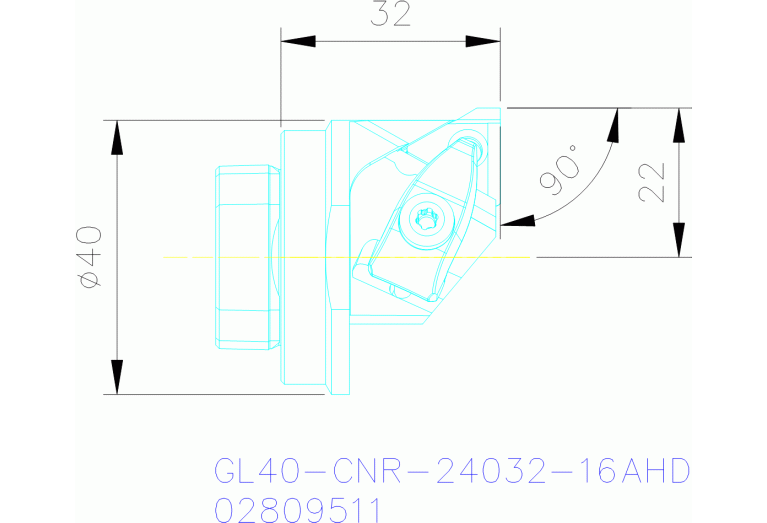

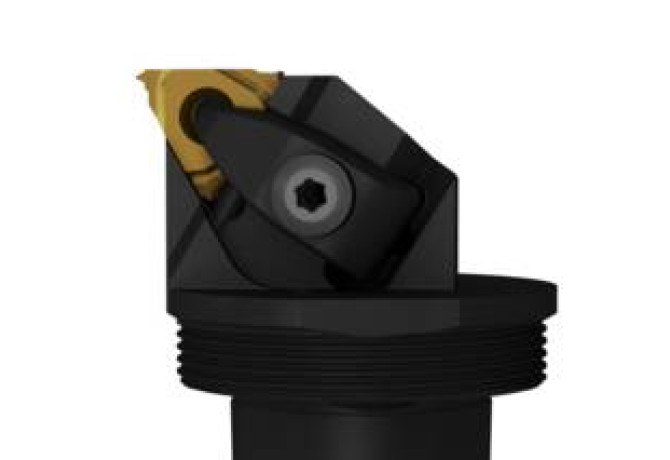

GL40-CNR-24032-16AHD
GL40-CNR-24032-16AHD
Артикул:
02809511
В наличии
Характеристики
A1A SKJ Cutting edge angle major Pos. A
8
A61A SKJ Thread pitch minimum
0.5 mm
BLDA SKJ Tool style code Position A
8
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN CSW1
SO-SO 16NR
DMIN Minimum bore diameter
50 mm
FamilyProducts
GL40-CNR-24032-16AHD
G3A SKJ Eingeschriebener Kreis Schneidkörper Pos.A
9.525 mm
G7A SKJ Schneidkantenhöhe Schneidkörper Pos.A
3.47 mm
HAND Cutting direction
R - Right
HF Functional height
0 mm
ID Technical product number
02809511
Interface codes
/ J61
Interface codes CSW1
J41 / J441
ISO
SGL01C0400$$$$
ISO CSW1
SO$$NR16R
ISYC Subclass
309-08 - System tool for external threading
KAPR Tool cutting edge angle
90 Degree
LF Functional length
32 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
SGL
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 ISO
SGL01C0400$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LPR Protruding length
32 mm
LTA Length tool assembly
32 mm
MIID Master insert identification
ISO SO$$NR16R
MTP Clamping type code
C - Top clamping without bore
Name Identifying order number
GL40-CNR-24032-16AHD

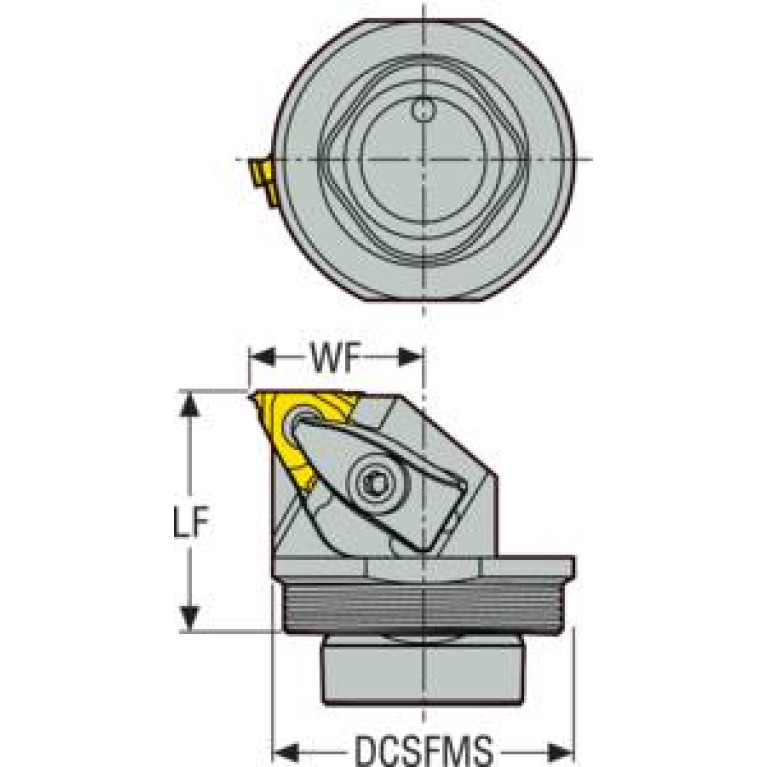

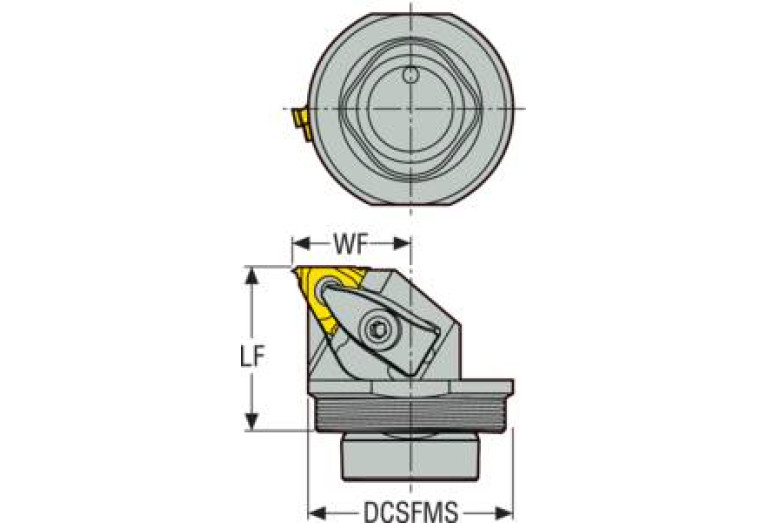

WF Functional width
24 mm
Working process
No working processes available
WT Weight of item
0.3 kg
