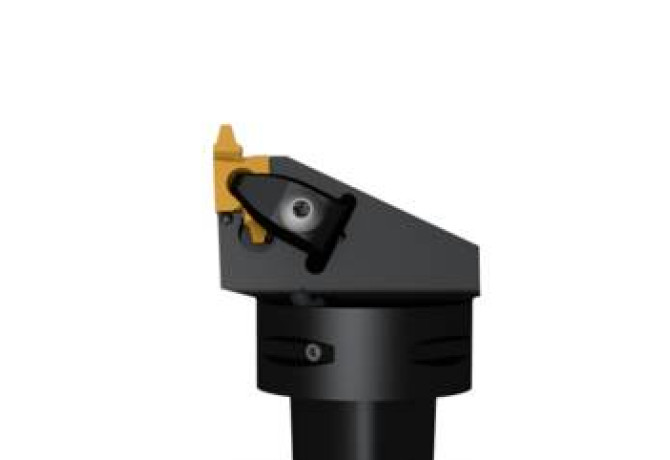

Главная Каталог продукции Toolunited 10 309-08 - System tool for external threading C5-CER-35065-26HD

C5-CER-35065-26HD

C5-CER-35065-26HD C5-CER-35065-26HD C5-CER-35065-26HD C5-CER-35065-26HD

C5-CER-35065-26HD

SECO Tools
Артикул: 02790776
В наличии
В корзину
Описание
Характеристики
A1A SKJ Cutting edge angle major Pos. A
1
BLDA SKJ Tool style code Position A
1
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
CCS05000185
DIN CSW1
SO-SO 26ER
FamilyProducts
C5-CER-35065-26HD
G1A SKJ Schneidkörperlänge Schneidkörper Pos.A
26 mm
HAND Cutting direction
R - Right
ID Technical product number
02790776
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
CCS01C0500$$$$
ISO CSW1
SO$$ER26R
ISYC Subclass
309-08 - System tool for external threading

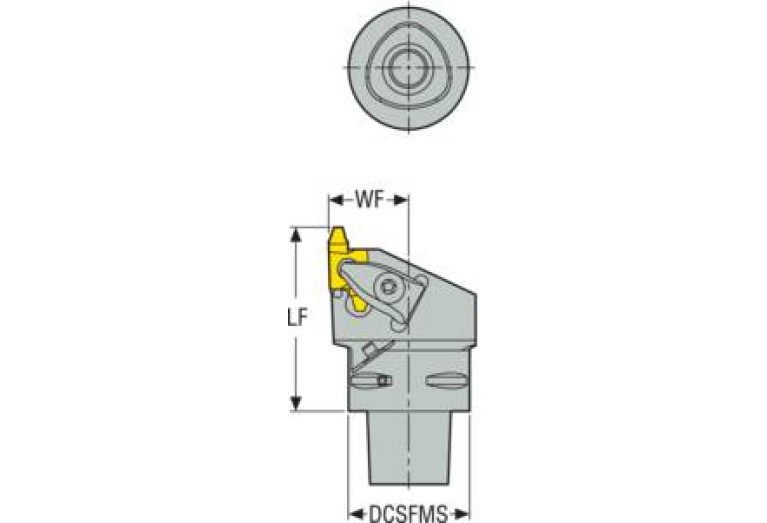

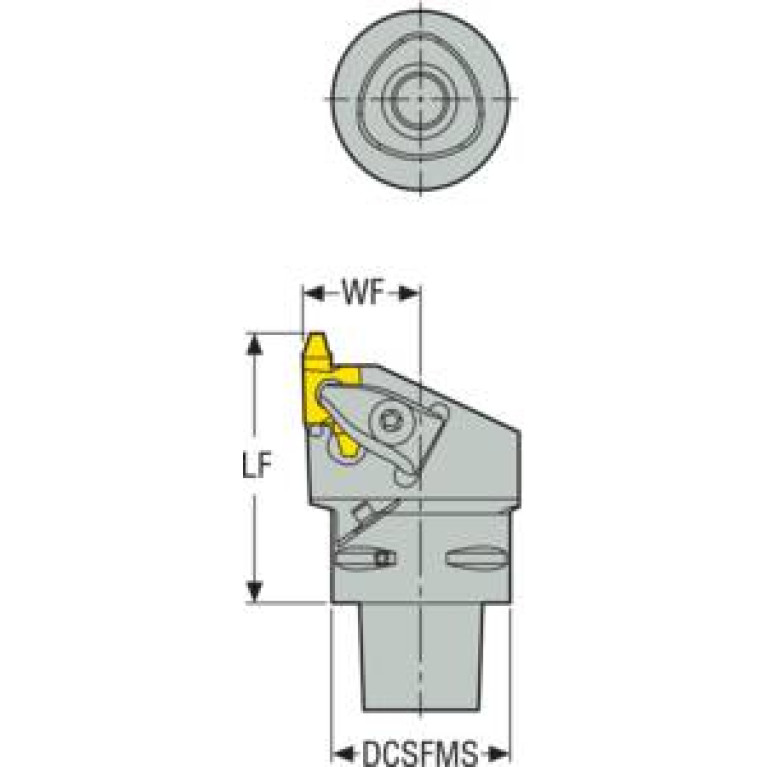

KAPR Tool cutting edge angle
90 Degree

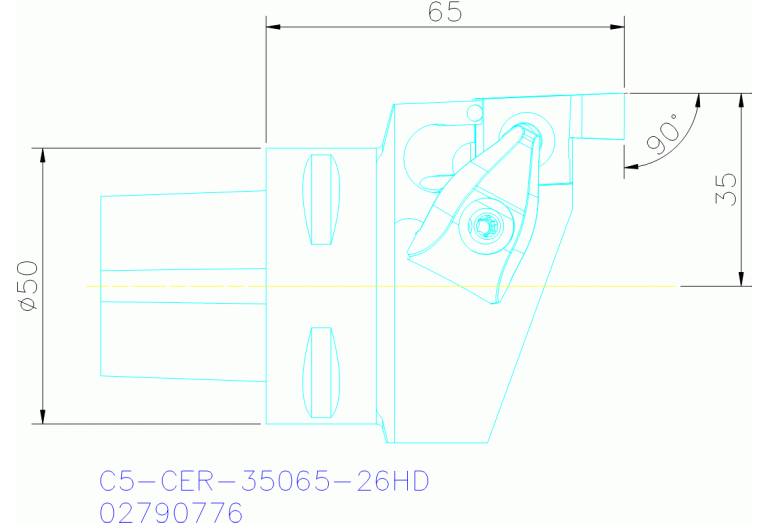

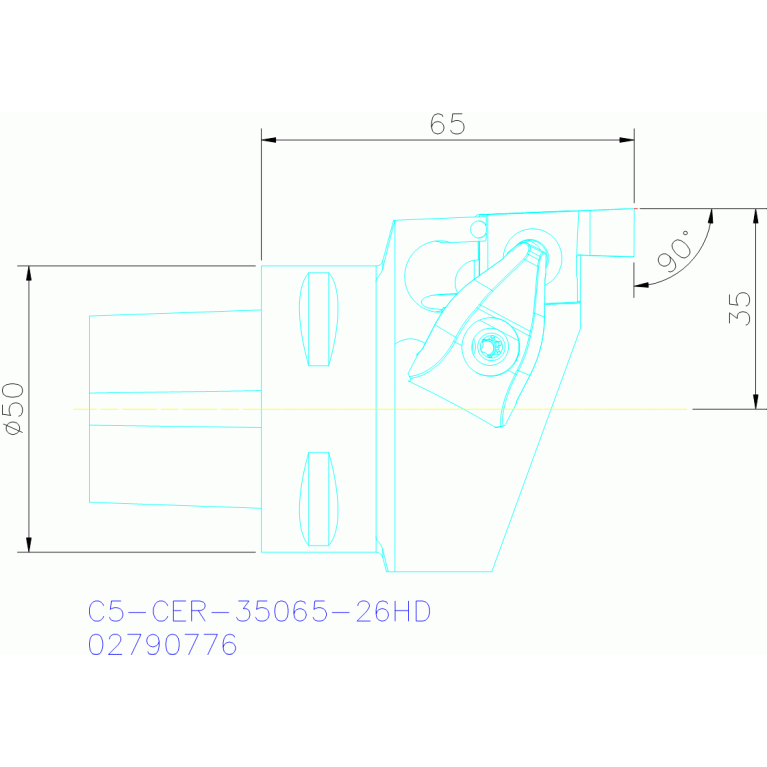

LF Functional length
65 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0500
LOC-03 ISO
CCS01C0500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS05000185
LPR Protruding length
65 mm
LTA Length tool assembly
65 mm
MIID Master insert identification
ISO SO$$ER26R
MTP Clamping type code
C - Top clamping without bore
Name Identifying order number
C5-CER-35065-26HD
WF Functional width
35 mm
Working process
No working processes available
WT Weight of item
0.776 kg
