Главная Каталог продукции Toolunited 10 309-08 - System tool for external threading C5-CEL-35060-16CHD

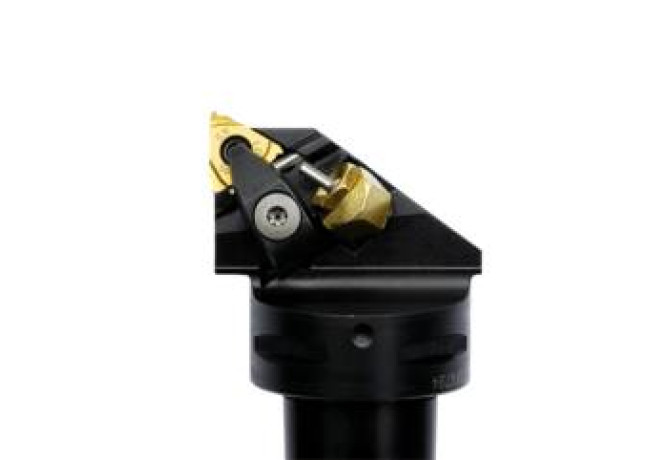

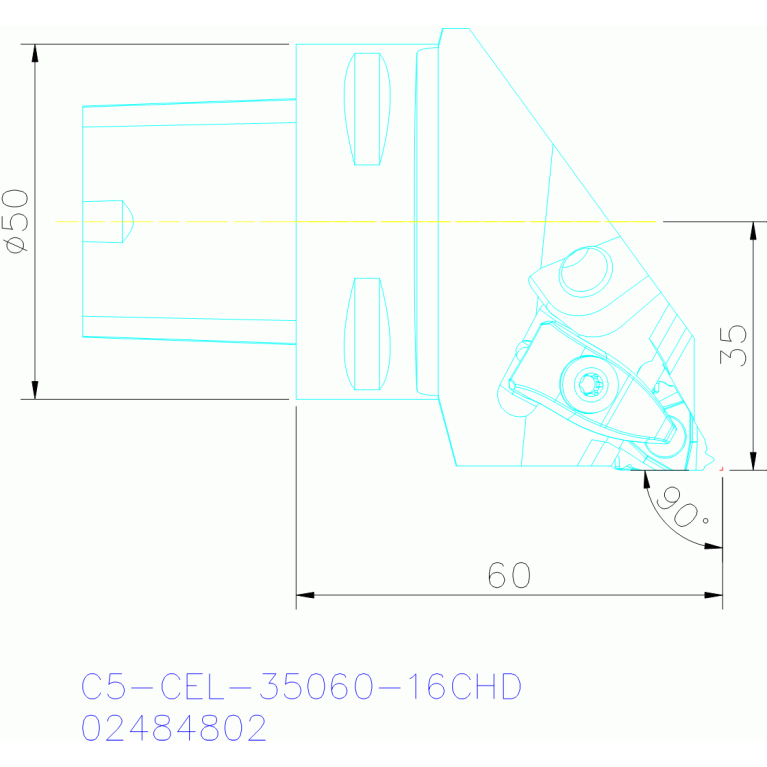

C5-CEL-35060-16CHD

C5-CEL-35060-16CHD C5-CEL-35060-16CHD C5-CEL-35060-16CHD C5-CEL-35060-16CHD

C5-CEL-35060-16CHD

SECO Tools
Артикул: 02484802
В наличии
В корзину
Описание
Характеристики
A1A SKJ Cutting edge angle major Pos. A
6
A61A SKJ Thread pitch minimum
0.5 mm
BLDA SKJ Tool style code Position A
6
C8A SKJ Spitzenradius Schneidkörper Pos.A
0.06 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
CCS05000185
DIN CSW1
SO-SO 16EL
FamilyProducts
C5-CEL-35060-16CHD
G3A SKJ Eingeschriebener Kreis Schneidkörper Pos.A
9.525 mm
G7A SKJ Schneidkantenhöhe Schneidkörper Pos.A
3.47 mm
HAND Cutting direction
L - Left
ID Technical product number
02484802
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
CCS01C0500$$$$
ISO CSW1
SO$$EL16L
ISYC Subclass
309-08 - System tool for external threading
KAPR Tool cutting edge angle
90 Degree

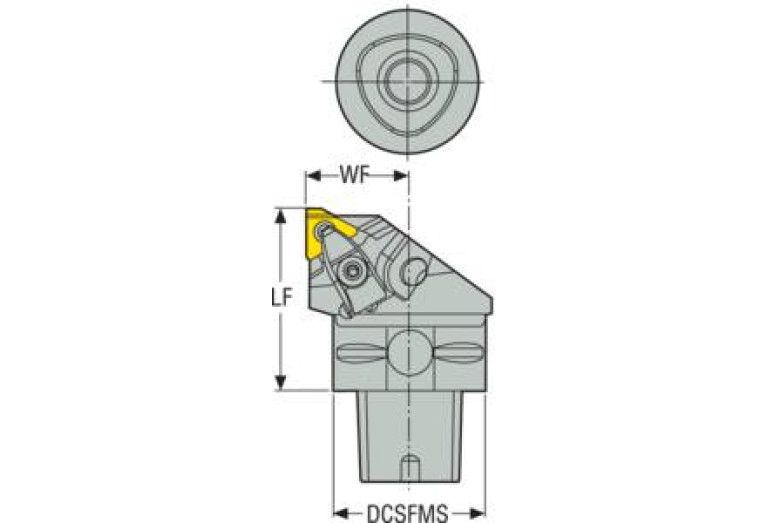

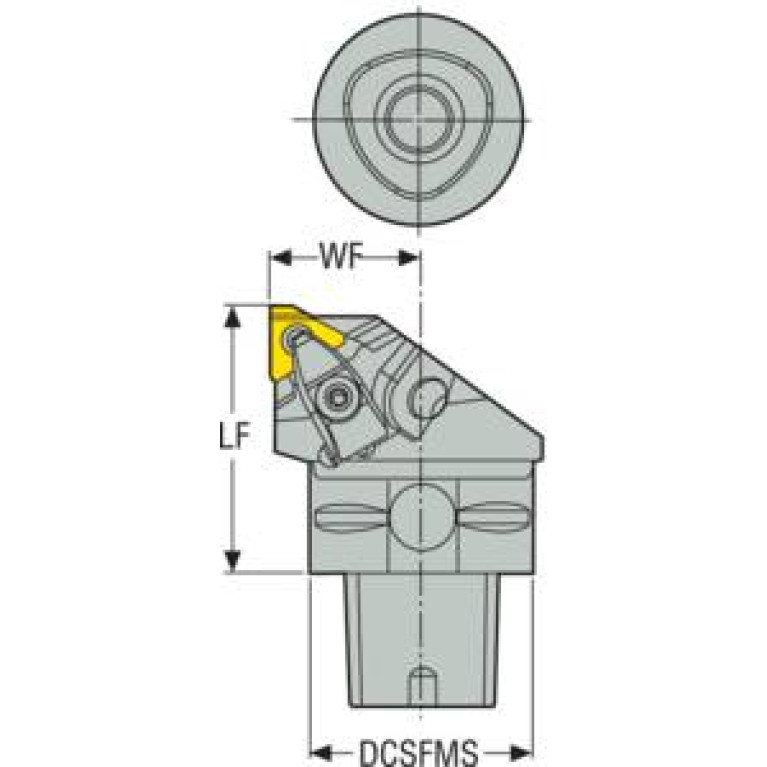

LF Functional length
60 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0500
LOC-03 ISO
CCS01C0500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS05000185
LPR Protruding length
60 mm
LTA Length tool assembly
60 mm
MIID Master insert identification
ISO SO$$EL16L
MTP Clamping type code
C - Top clamping without bore
Name Identifying order number
C5-CEL-35060-16CHD
WF Functional width
35 mm
Working process
No working processes available
WT Weight of item
0.784 kg
