Главная Каталог продукции Toolunited 10 309-07 - System tool for external turning DTC-D40-DVUNR-16T

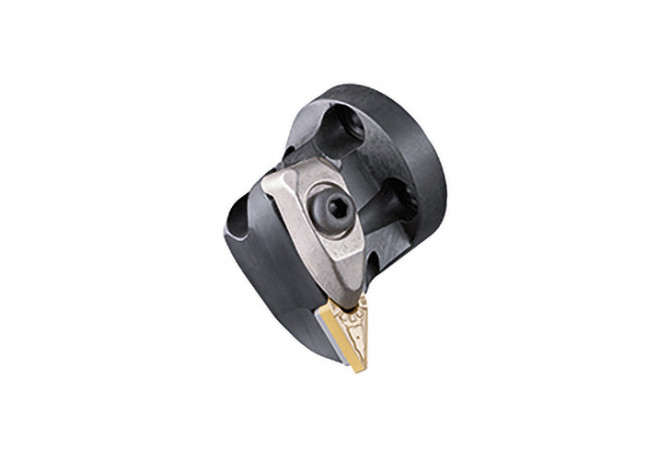

DTC-D40-DVUNR-16T

DTC-D40-DVUNR-16T DTC-D40-DVUNR-16T DTC-D40-DVUNR-16T

DTC-D40-DVUNR-16T

Ingersoll
Артикул: 3332989
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
BLDA Tool style code Position A
3
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state
LA - Soon discontinued
DIN
IL-IMC AB 40
DIN CSW1
VN1604012N
DMIN Minimum bore diameter
52 mm
EPSR Insert included angle
35 Degree
FamilyProducts
DTC-DVUNR/L
HAND Cutting direction
R - Right
ID Technical product number
3332989
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISYC Subclass
309-07 - System tool for external turning
KAPR Tool cutting edge angle
93 Degree
LF Functional length
36 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
IL-IMC AB 40
LPR Protruding length
36 mm
LTA Length tool assembly
36 mm
MIID Master insert identification
VN 1604
Name Identifying order number
DTC-D40-DVUNR-16T
OAL Overall length
36 mm
THSC Tool holder shape code
A - offset shank design
WF Functional width
30 mm
Working process
No working processes available
