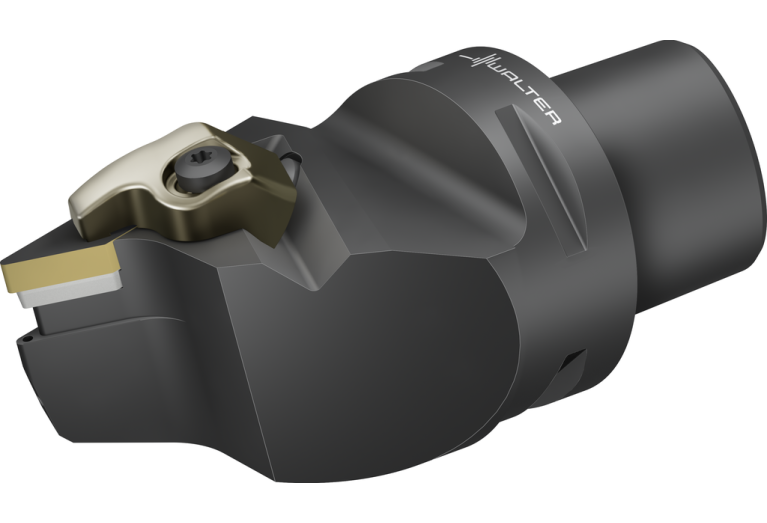

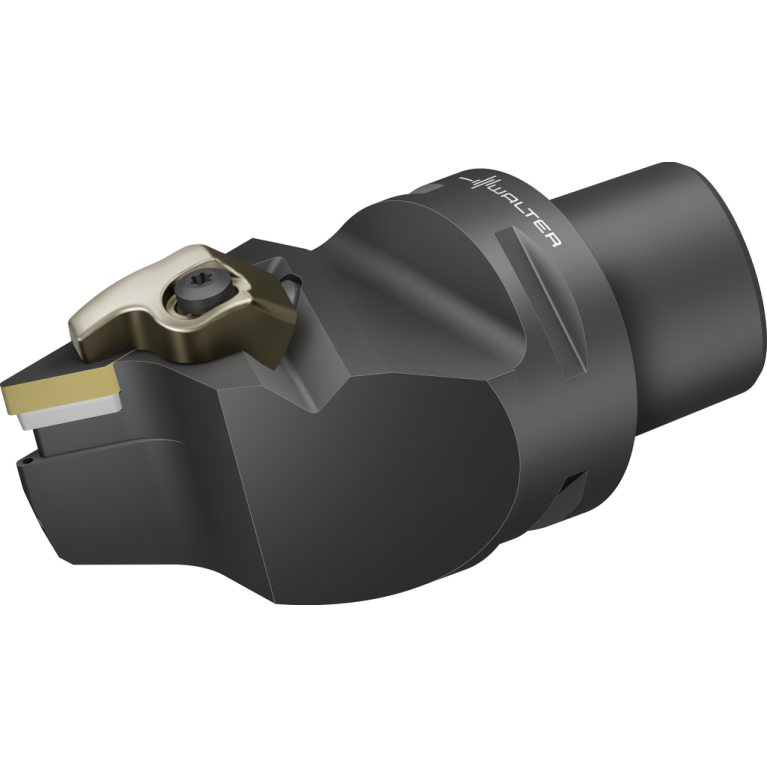

C5-DVJNL-35065-16-P

Артикул: 7512209

В наличии

В корзину

Описание

Характеристики

BLDA Tool style code Position A

CEATC Tool cutting edge angle type code

B - Side and front lead angle

CEDC Cutting edge count

CNSC Coolant entry style code

3 - With Coolant entry, axial concentric and radial

COMPC Company code

W - Walter

CXSC Coolant exit style code

7 - With coolant supply (discharge), axial groove at shank

DCP Data chip provision

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

CCS05000195

DIN CSW1

VN1604992N

DMIN Minimum bore diameter

600 mm

EPSR Insert included angle

35 Degree

FamilyProducts

Turning tools – Rigid clamping C...-DVJN...-P

GAMO Rake angle orthogonal

-4 Degree

HAND Cutting direction

L - Left

HF Functional height

0 mm

ID Technical product number

7512209

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A Indicator for ISO cutting plate Pos.A

ISO

CCS01C0500$$$$

ISO CSW1

ISO$VN1604002******

ISYC Subclass

309-07 - System tool for external turning

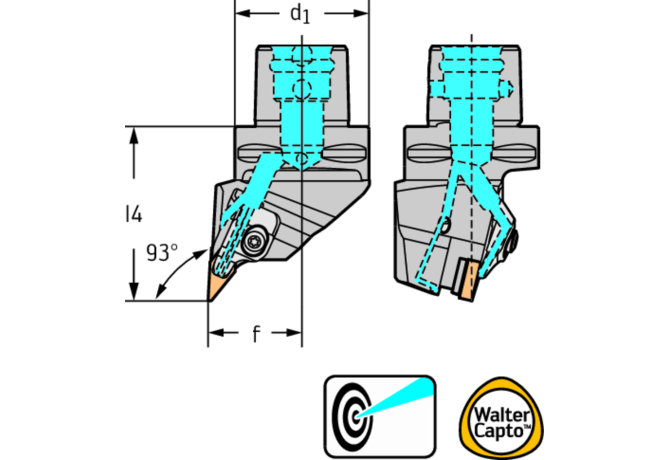

KAPR Tool cutting edge angle

93 Degree

L Cutting edge length

16.5 mm

LAMS Inclination angle

-13 Degree

LF Functional length

65 mm

LOC-03 CCFMS Form

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Unit base

9 non-dimensional size with coolant

LOC-03 CZCMS Size code

0500

LOC-03 DCONMS Diameter

50 mm

LOC-03 ISO

CCS01C0500$$$$

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS05000195

LPR Protruding length

95 mm

LTA Length tool assembly

65 mm

MIID Master insert identification

VNMG 16 04 08

MTP Clamping type code

Name Identifying order number

C5-DVJNL-35065-16-P

OAL Overall length

95 mm

STDNO Standard

ISO26623-1

THSC Tool holder shape code

G - straight shank design

WF Functional width

35 mm

Working process

DDA - External turning,DFA - External form turning

WT Weight of item

0.718 kg
