Главная Каталог продукции Toolunited 10 309-07 - System tool for external turning C5-DDJNL-35060-11-M

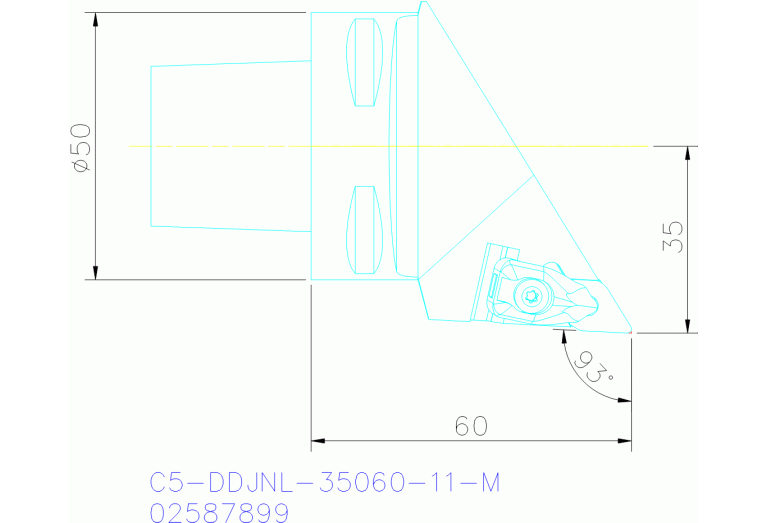

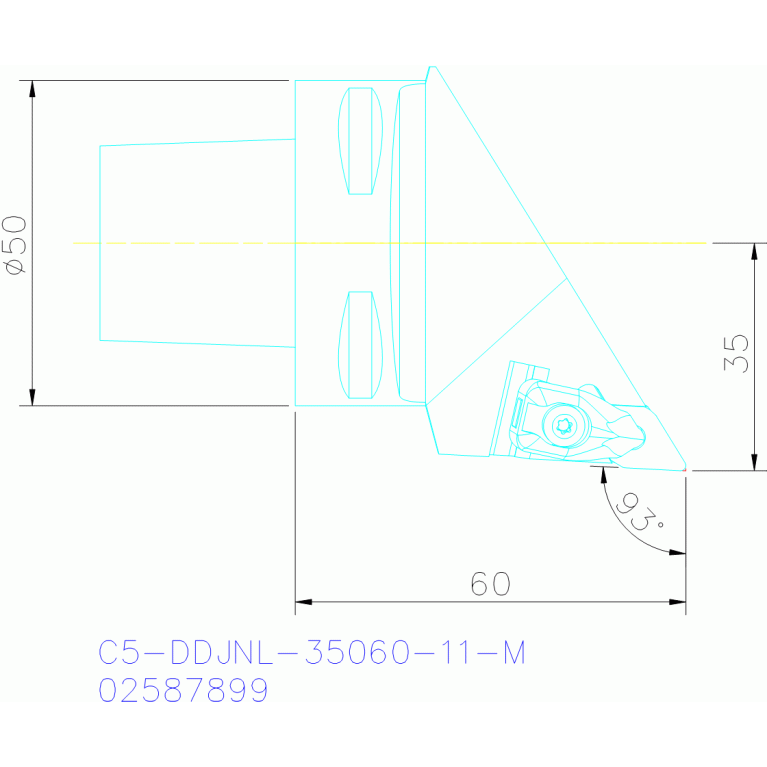

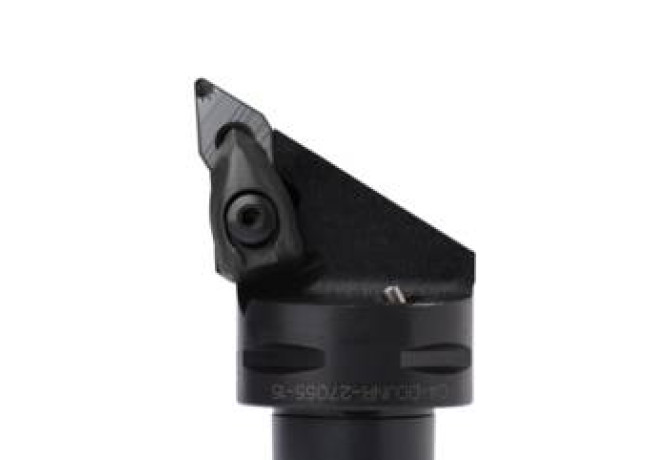

C5-DDJNL-35060-11-M

C5-DDJNL-35060-11-M C5-DDJNL-35060-11-M C5-DDJNL-35060-11-M C5-DDJNL-35060-11-M

C5-DDJNL-35060-11-M

SECO Tools
Артикул: 02587899
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
9.52 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
4.76 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.8 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
CCS05000185

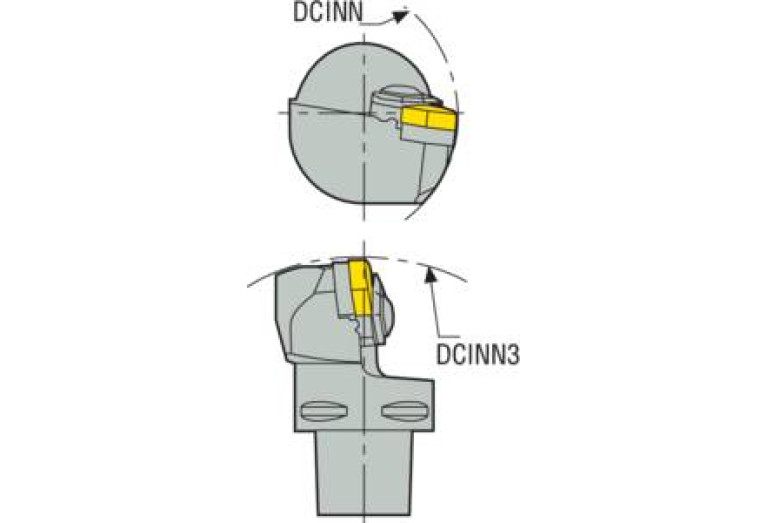

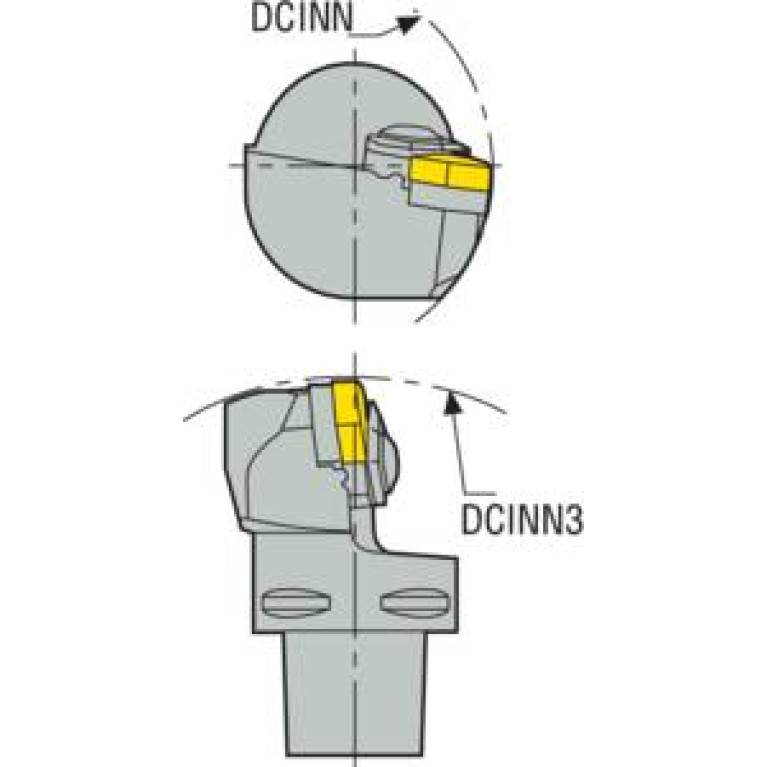

DMIN Minimum bore diameter
65 mm
EPSR Insert included angle
55 Degree
FamilyProducts
C5-DDJNL-35060-11-M
GAMO Rake angle orthogonal
-6 Degree
HAND Cutting direction
L - Left
ID Technical product number
02587899
Interface codes
J6 / J61
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
CCS01C0500$$$$
ISO CSW1
ISO$DN1104**2LB****
ISYC Subclass
309-07 - System tool for external turning
KAPR Tool cutting edge angle
93 Degree
LAMS Inclination angle
-7 Degree
LF Functional length
60 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0500
LOC-03 ISO
CCS01C0500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS05000185
LTA Length tool assembly
60 mm
MIID Master insert identification
DNMA110408S
MTP Clamping type code
D
Name Identifying order number
C5-DDJNL-35060-11-M
STDDES Standard designation
C5-DDJNL-35060-11-M
WF Functional width
35 mm
Working process
No working processes available
WT Weight of item
0.67 kg
