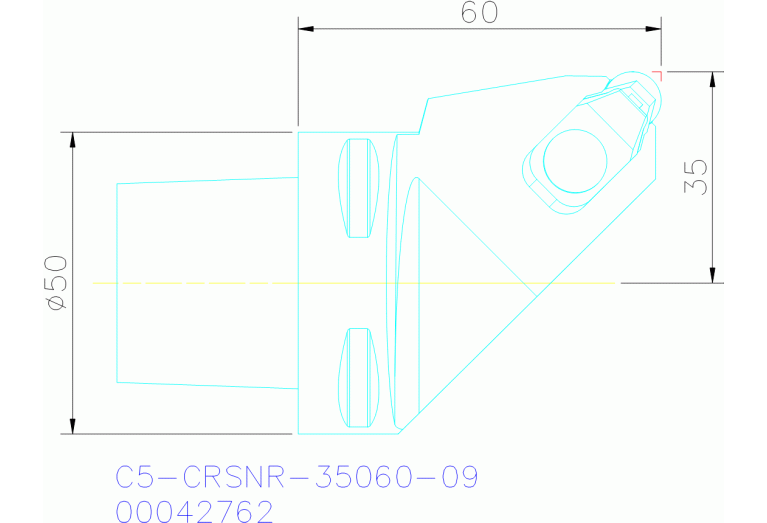

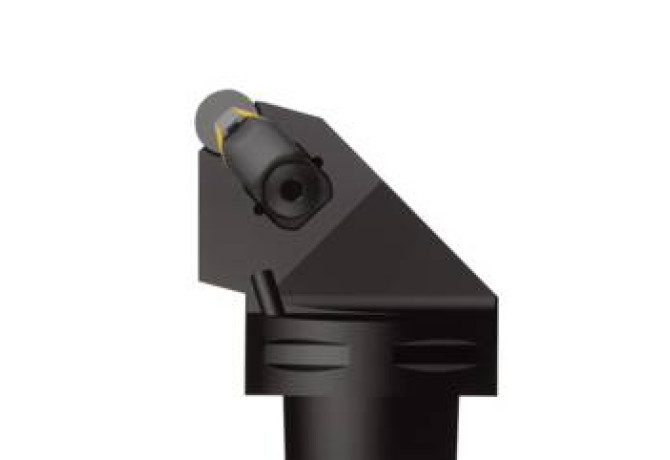

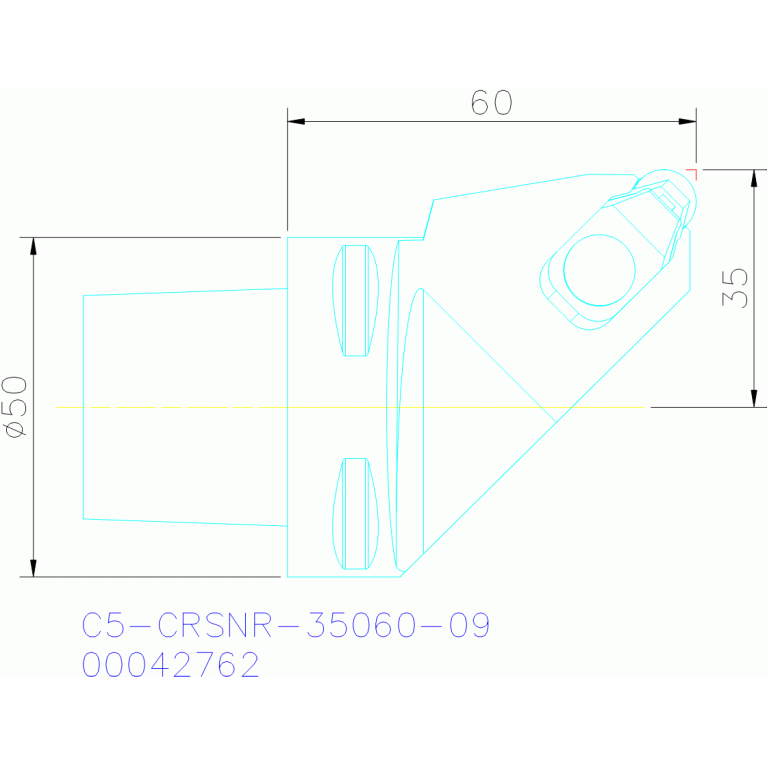

C5-CRSNR-35060-09

C5-CRSNR-35060-09 C5-CRSNR-35060-09 C5-CRSNR-35060-09 C5-CRSNR-35060-09

C5-CRSNR-35060-09

SECO Tools
Артикул: 00042762
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
9.52 mm
BLDA Tool style code Position A
10
C1A Insert thickness Pos. A
3.18 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
CCS05000185
DMIN Minimum bore diameter
95 mm
FamilyProducts
C5-CRSNR-35060-09
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
00042762
Interface codes
J6 / J61
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
CCS01C0500$$$$
ISO CSW1
ISO$RN0903**1RB****
ISYC Subclass
309-07 - System tool for external turning
KAPR Tool cutting edge angle
45 Degree
LAMS Inclination angle
-8 Degree

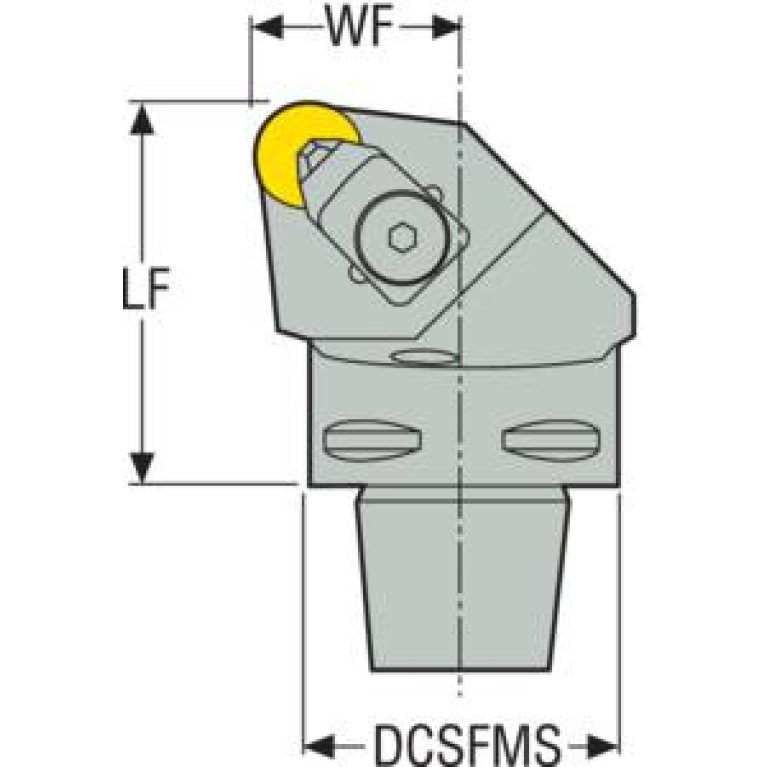

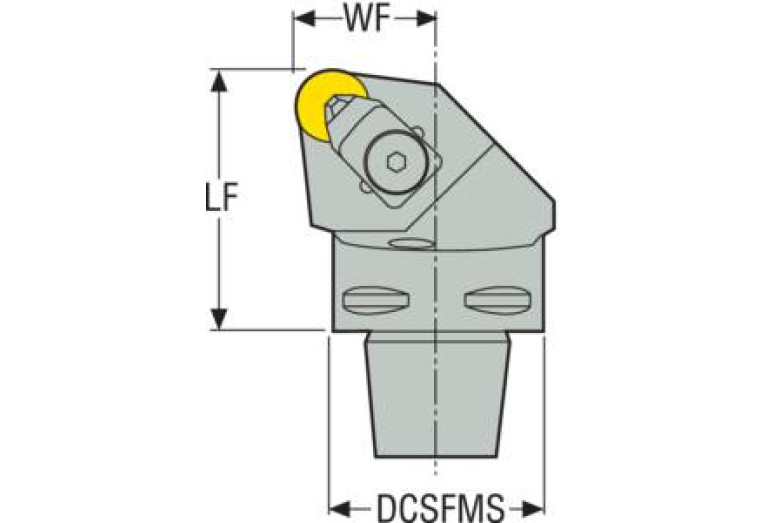

LF Functional length
60 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0500
LOC-03 ISO
CCS01C0500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS05000185
LPR Protruding length
60 mm
LTA Length tool assembly
60 mm
MIID Master insert identification
RNGN090300E25
MTP Clamping type code
C - Top clamping without bore
Name Identifying order number
C5-CRSNR-35060-09
STDDES Standard designation
C5-CRSNR-35060-09
WF Functional width
35 mm
Working process
No working processes available
WT Weight of item
0.738 kg
