Главная Каталог продукции Toolunited 10 309-07 - System tool for external turning C4-PDJNR-27055-15-04JETL

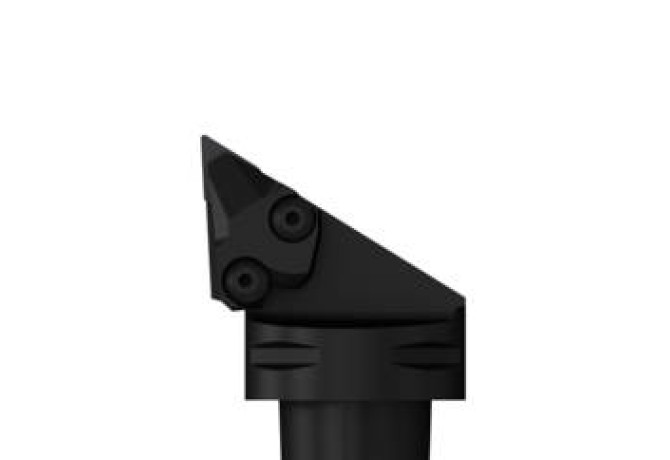

C4-PDJNR-27055-15-04JETL

C4-PDJNR-27055-15-04JETL C4-PDJNR-27055-15-04JETL C4-PDJNR-27055-15-04JETL C4-PDJNR-27055-15-04JETL

C4-PDJNR-27055-15-04JETL

SECO Tools
Артикул: 02889852
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
B3A Inscribed circle diameter Pos. A
12.7 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
4.76 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.4 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
CCS04000185
DMIN Minimum bore diameter
75 mm
EPSR Insert included angle
55 Degree
FamilyProducts
C4-PDJNR-27055-15-04JETL
GAMF Rake angle radial
-6 Degree
GAMO Rake angle orthogonal
-6 Degree
GAMP Rake angle axial
-6 Degree
HAND Cutting direction
R - Right
ID Technical product number
02889852
Interface codes
J6 / J61
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
CCS01C0400$$$$
ISO CSW1
ISO$DN1504**2RB****
ISYC Subclass
309-07 - System tool for external turning

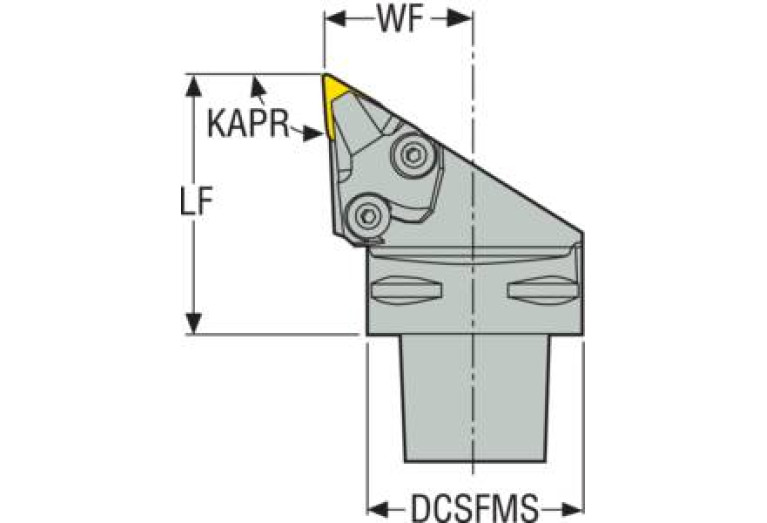

KAPR Tool cutting edge angle
93 Degree
LAMS Inclination angle
-6 Degree

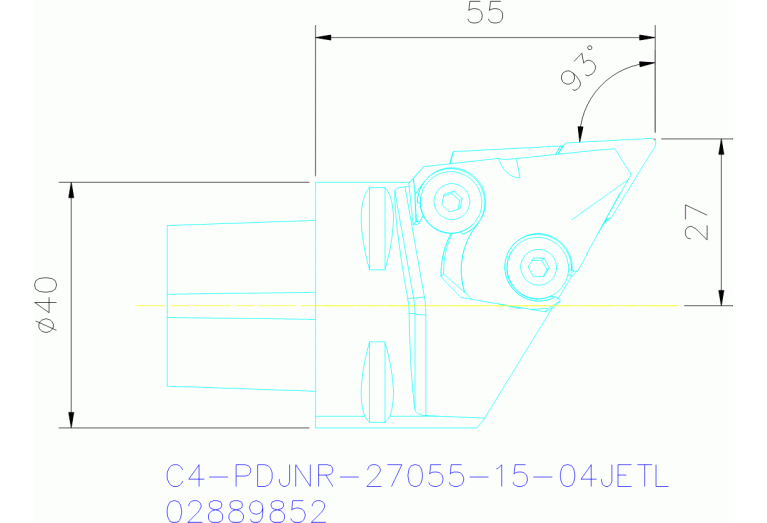

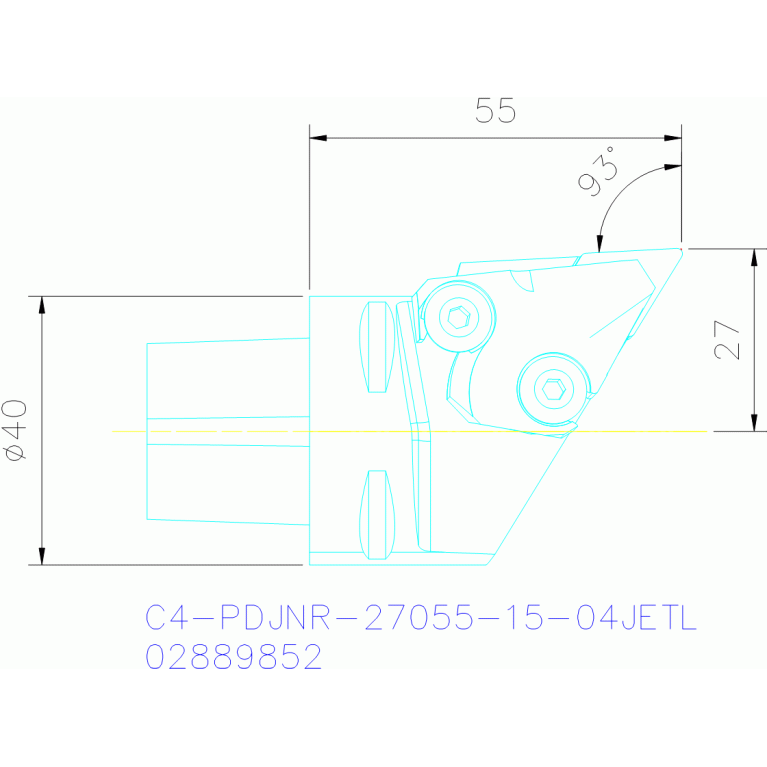

LF Functional length
55 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0400
LOC-03 ISO
CCS01C0400$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS04000185
LTA Length tool assembly
55 mm
MIID Master insert identification
DNGA150404S-01020-L1-B
MTP Clamping type code
P - Hole clamping, with straight bore
Name Identifying order number
C4-PDJNR-27055-15-04JETL
STDDES Standard designation
C4-PDJNR-27055-15-04
WF Functional width
27 mm
Working process
No working processes available
WT Weight of item
0.4 kg
