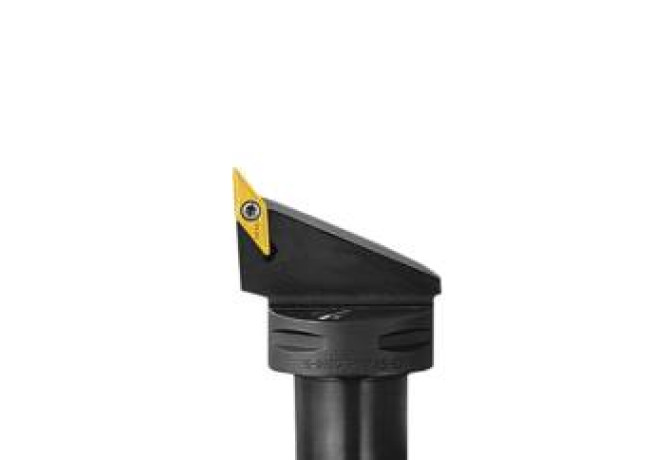

C3-SVJBL-22040-11

C3-SVJBL-22040-11 C3-SVJBL-22040-11 C3-SVJBL-22040-11 C3-SVJBL-22040-11

C3-SVJBL-22040-11

SECO Tools
Артикул: 00094145
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
5 Degree
B3A Inscribed circle diameter Pos. A
6.35 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
2.38 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.1 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
3/14/2020
DIN
CCS03000185
EPSR Insert included angle
35 Degree
FamilyProducts
C3-SVJBL-22040-11
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
L - Left
ID Technical product number
00094145
Interface codes
J6 / J61
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
CCS01C0320$$$$
ISO CSW1
ISO$VB1102**3LB****
ISYC Subclass
309-07 - System tool for external turning

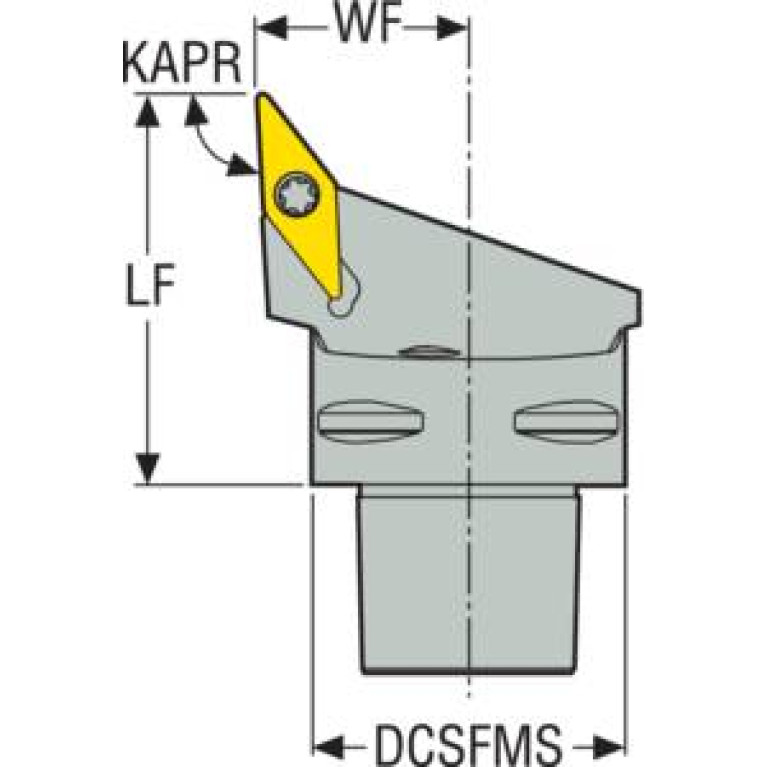

KAPR Tool cutting edge angle
93 Degree
LAMS Inclination angle
0 Degree
LF Functional length
40 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
CCS Coromant Capto System SANDVIK
LOC-03 CCUMS Connection code unit base
8 non-dimensional size
LOC-03 CZCMS Connection size code
0300
LOC-03 ISO
CCS01C0320$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS03000185
LTA Length tool assembly
40 mm
MIID Master insert identification
VBGT110201-F1
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number

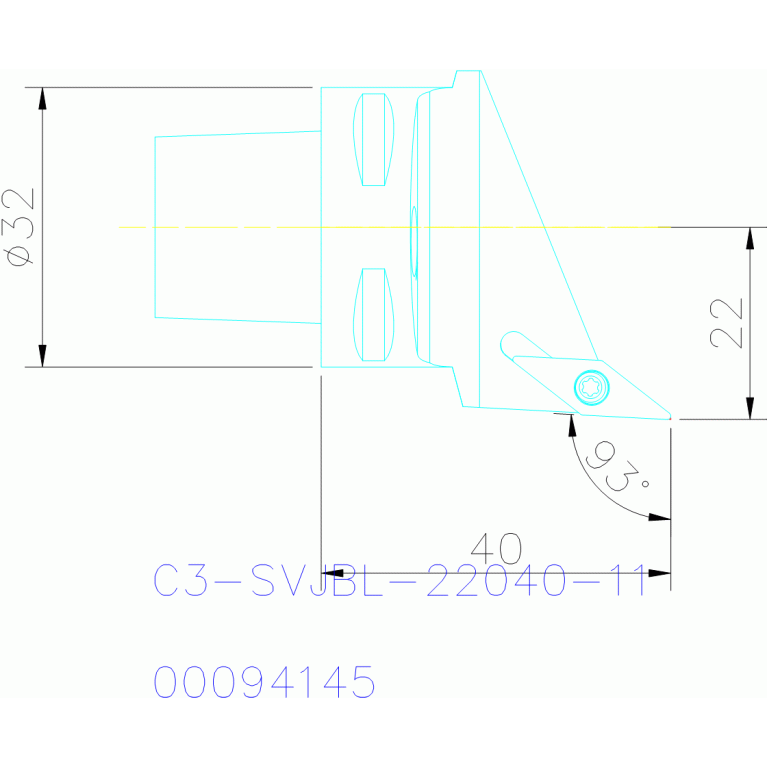

C3-SVJBL-22040-11
STDDES Standard designation
C3-SVJBL-22040-11
WF Functional width
22 mm
Working process
No working processes available
WT Weight of item
0.162 kg
