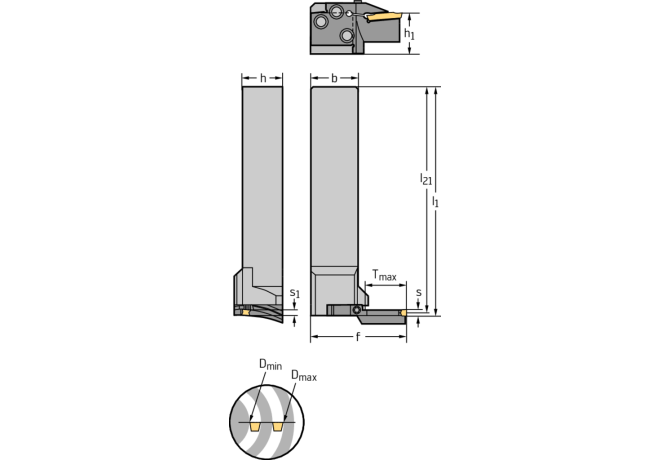

NCOE25-1616L-GX24-3-2

NCOE25-1616L-GX24-3-2 NCOE25-1616L-GX24-3-2

NCOE25-1616L-GX24-3-2

Walter
Артикул: 5333501
В наличии
В корзину
Описание
Характеристики
AXGSUP Axial groove support direction
2
CDX Cutting depth maximum
21.006 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
W - Walter
CW Cutting width
4 mm
CXSC Coolant exit style code
0 - Without coolant exit
DAXN Axial groove od min
77.978 mm
DAXX Axial groove od max
100 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
VKT16160125
DIN CSW1
W-GX243000***EX**
FamilyProducts
Shank tool – 90° axial grooving NCOE
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
L - Left
HF Functional height
25.4 mm
ID Technical product number
5333501
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
VKT01B1616$$$$
ISO CSW1
WR$$GX243000***EX**
ISYC Subclass
309-04 - Turning tool for OD grooving and parting
KAPR Tool cutting edge angle
90 Degree
LAMS Inclination angle
0 Degree
LF Functional length
137.706 mm
LOC-03 B Shank width
25.4 mm
LOC-03 CCFMS Form
01
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
VKT Square mounting
LOC-03 CCUMS Unit base
2 Inch
LOC-03 CZCMS Size code
1616
LOC-03 H Shank height
25.4 mm
LOC-03 ISO
VKT01B1616$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT16160125
LPR Protruding length
139.7 mm
MIID Master insert identification
GX24-3
MTP Clamping type code
C - Top clamping without bore
Name Identifying order number
NCOE25-1616L-GX24-3-2
OAL Overall length
139.7 mm
WF Functional width
60.452 mm
Working process
DDI - Internal turning,DSS - Face grooving
WT Weight of item
0.84 kg
