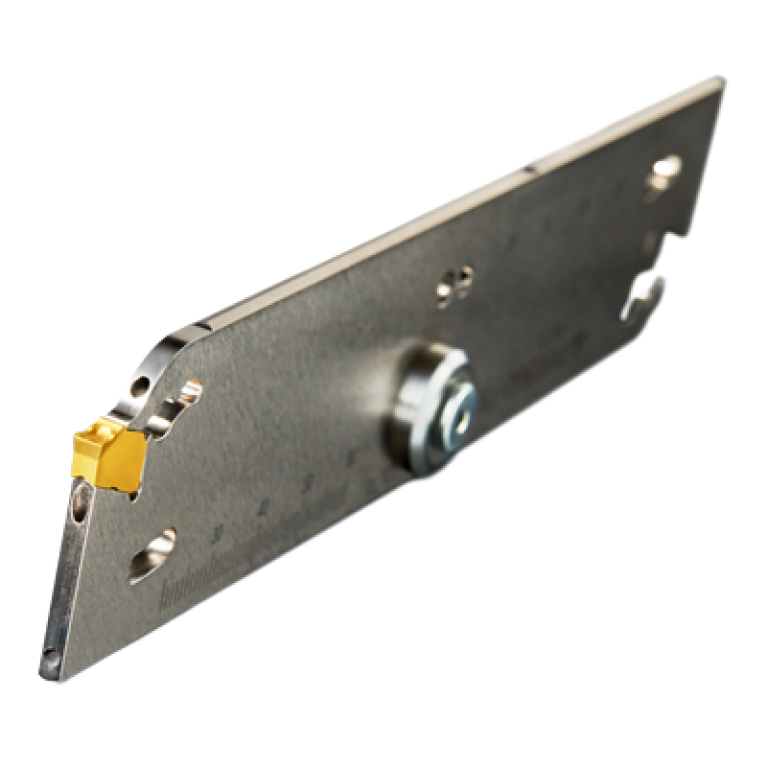

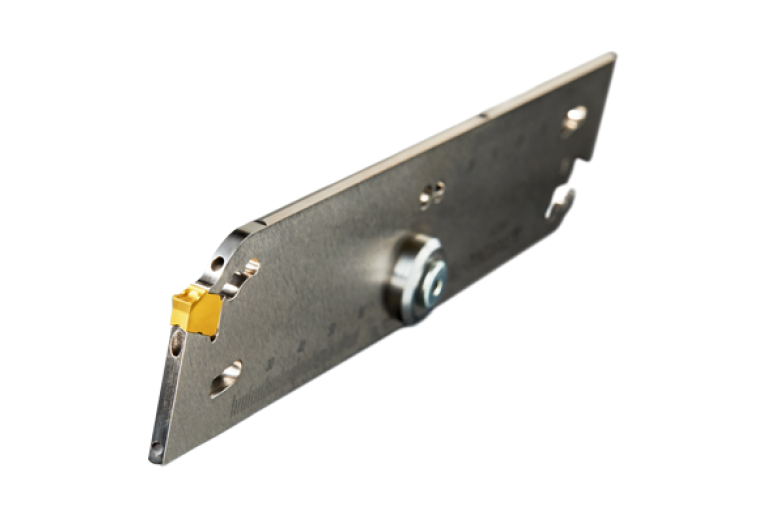

Главная Каталог продукции Toolunited 10 309-04 - Turning tool for OD grooving and parting GWB26NA2-H36-C

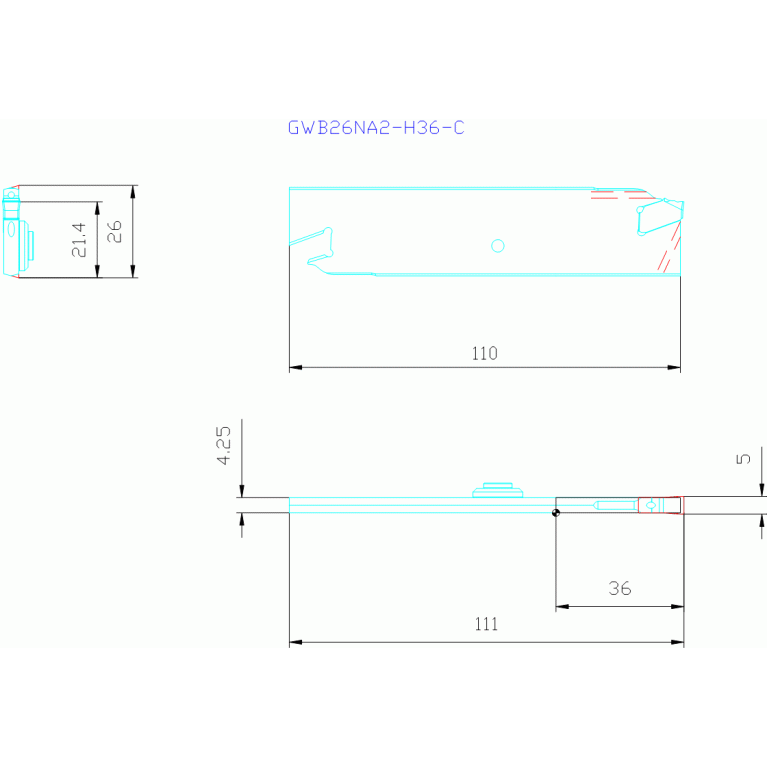

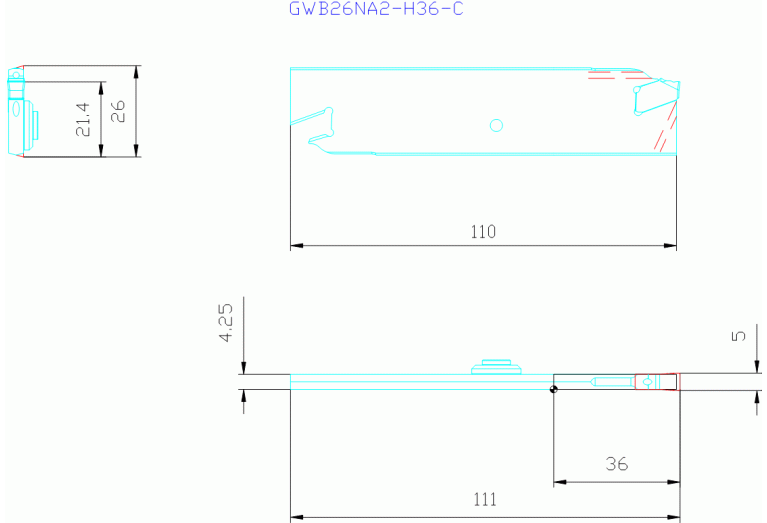

GWB26NA2-H36-C

GWB26NA2-H36-C GWB26NA2-H36-C GWB26NA2-H36-C GWB26NA2-H36-C

GWB26NA2-H36-C

Mitsubishi Materials
Артикул: 10586310
В наличии
В корзину
Описание
Характеристики

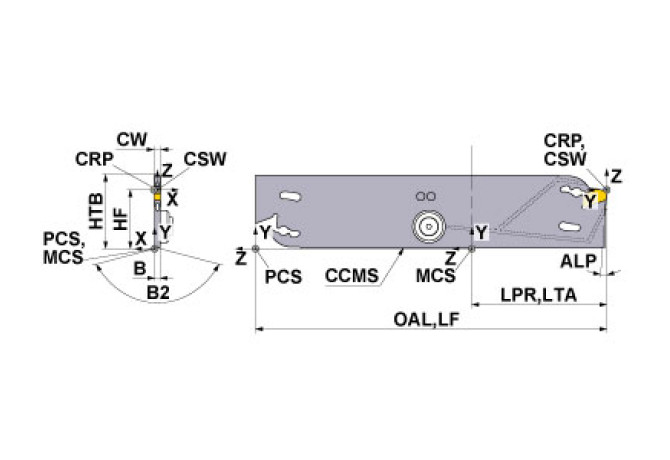

A1A SKJ Cutting edge angle major Pos. A
1
A2A SKJ Stechbreite Nennmaß Schneidkörper Pos.A
5 mm
BLDA SKJ Tool style code Position A
1
C5A SKJ Eckenradius rechts Schneidkörper Pos.A
0.3 mm
C6A SKJ Eckenradius links Schneidkörper Pos.A
0.3 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
0 - Without coolant exit
Delivery state valid from
4/1/2022
DIN
MI-0105
FamilyProducts
grooving
HAND Cutting direction
N - Neutral
HF Functional height
21.4 mm
ID Technical product number
10586310
Interface codes
J6 /
ISYC Subclass
309-04 - Turning tool for OD grooving and parting
LF Functional length
110 mm
LOC-03 B Shank width
4 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
MI-0105
MIID Master insert identification
GW1M0500H030N-GS
Name Identifying order number
GWB26NA2-H36-C
OAL Overall length
110 mm
Working process
No working processes available
